Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57458 |

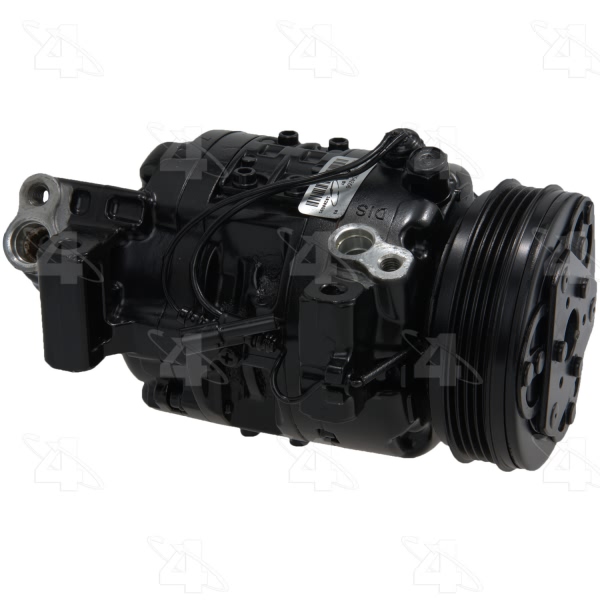

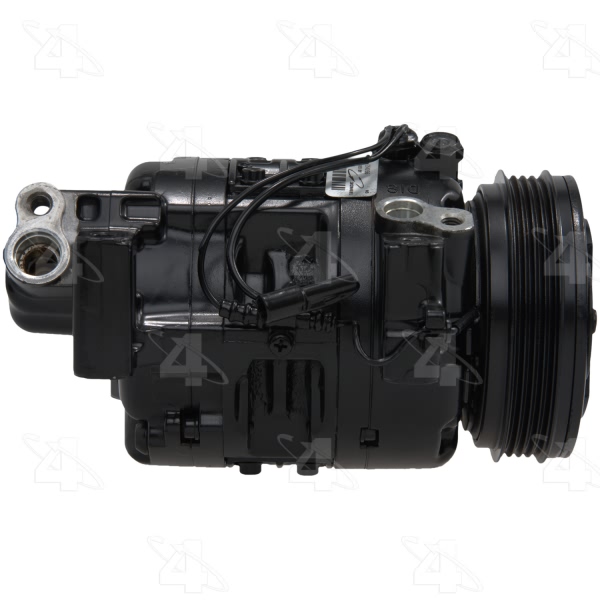

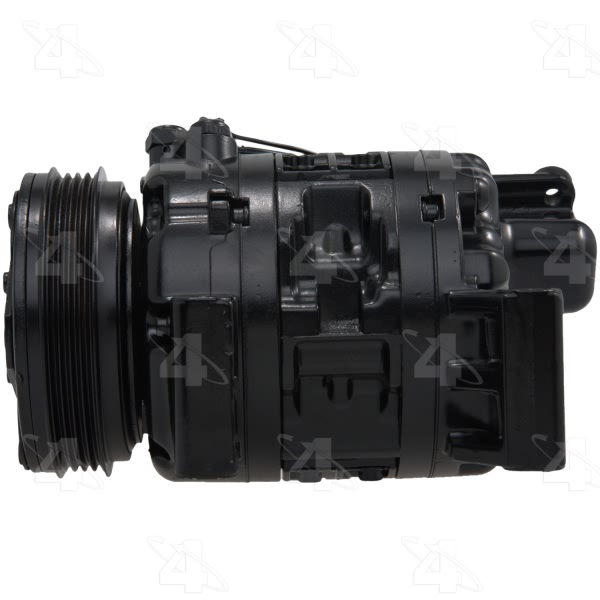

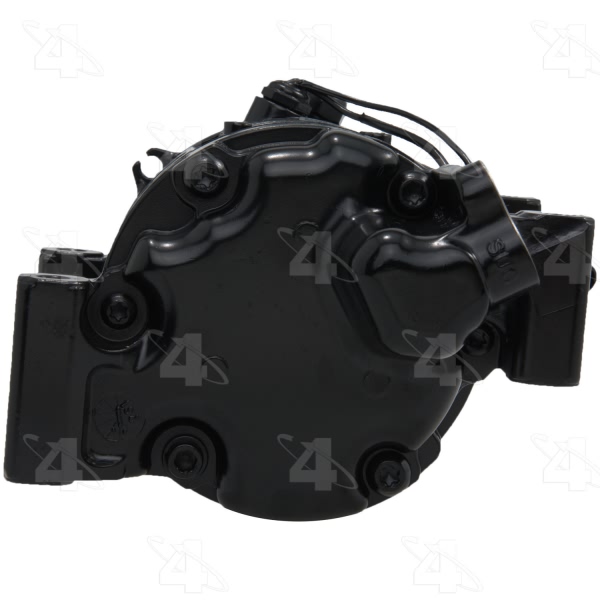

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |

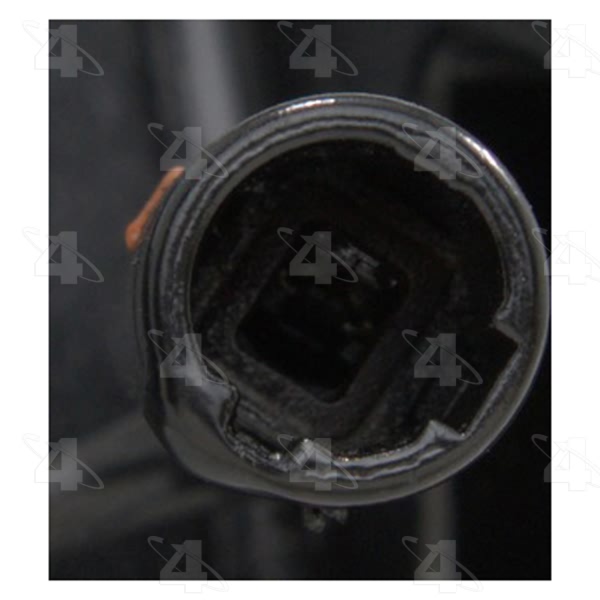

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | DKV14D |

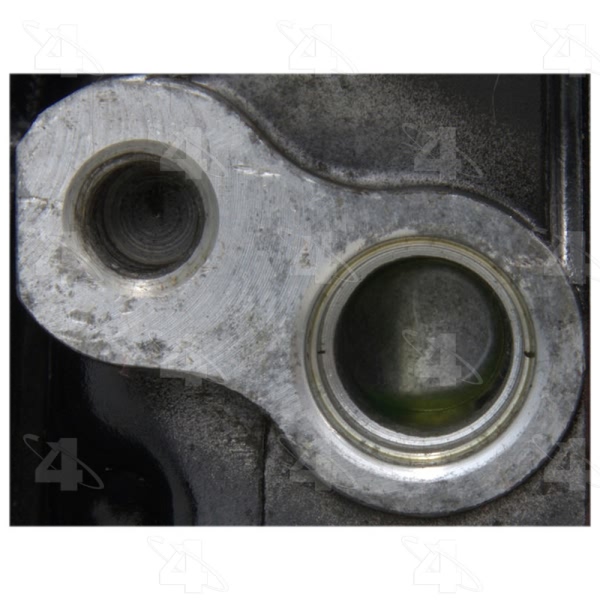

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.203125 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

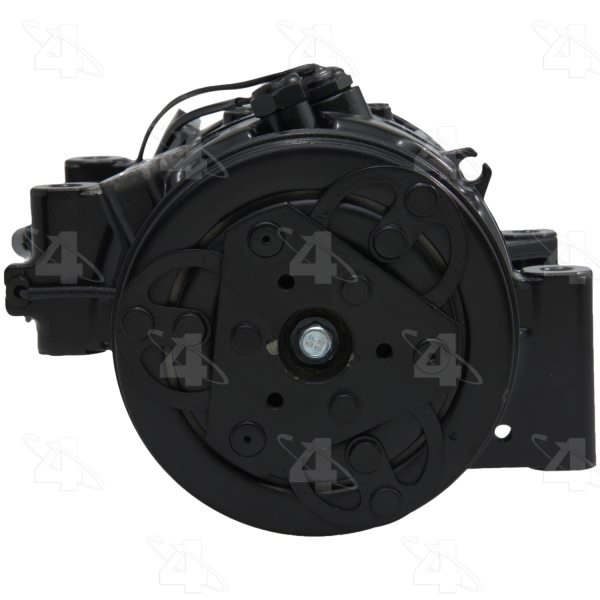

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Pad Mount Stepped 1 Bolt |

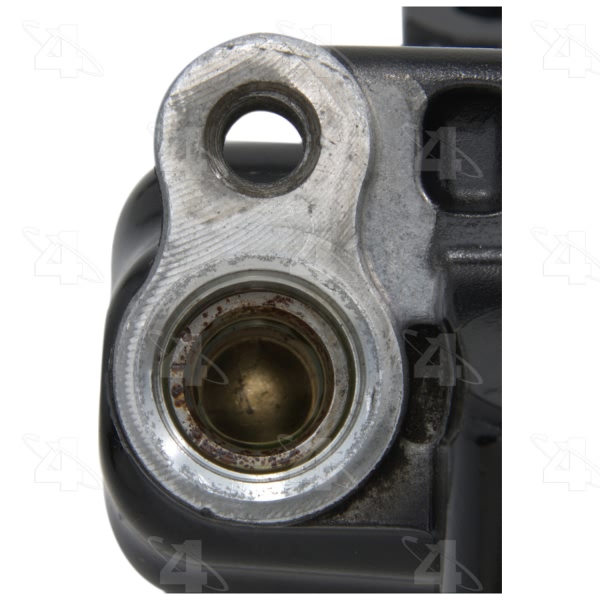

Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Switch Type | Heat Switch |
Terminal Type | Pin |
UPC | 096361574588 |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Acura SLX | All Trims | All Engines |
1994-1997 Honda Passport | All Trims | All Engines |
1993-1997 Isuzu Rodeo | All Trims | 6 Cyl 3.2L |
1993-1997 Isuzu Trooper | All Trims | All Engines |
