Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57411 |

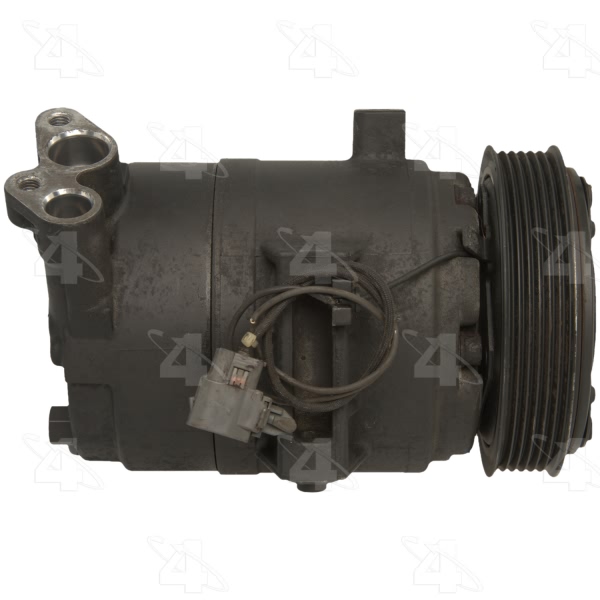

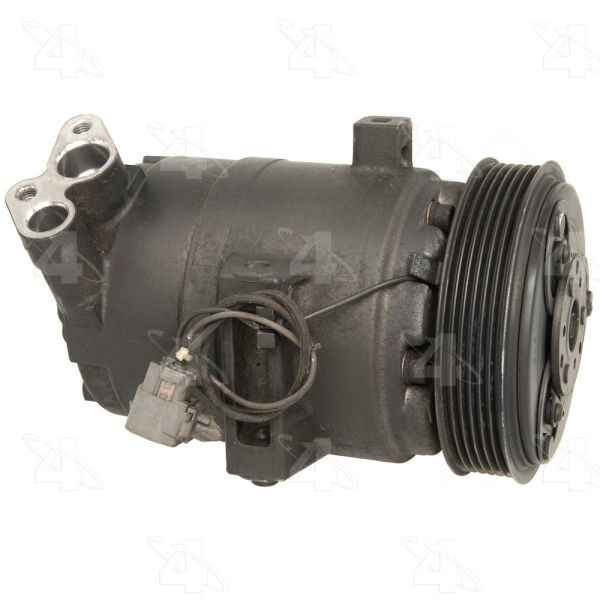

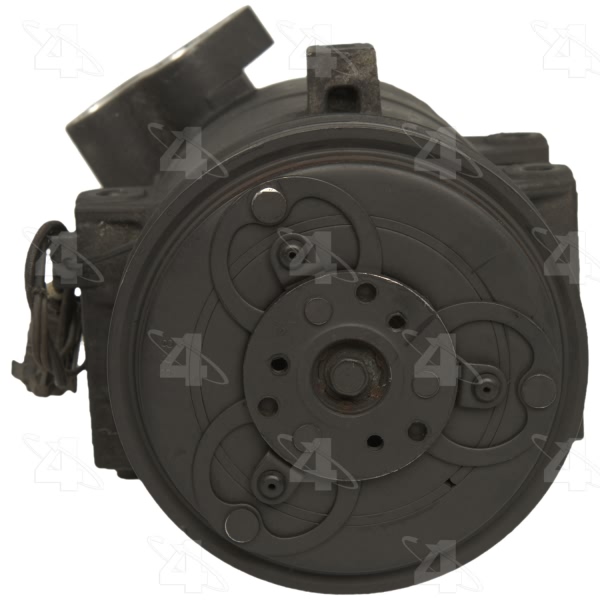

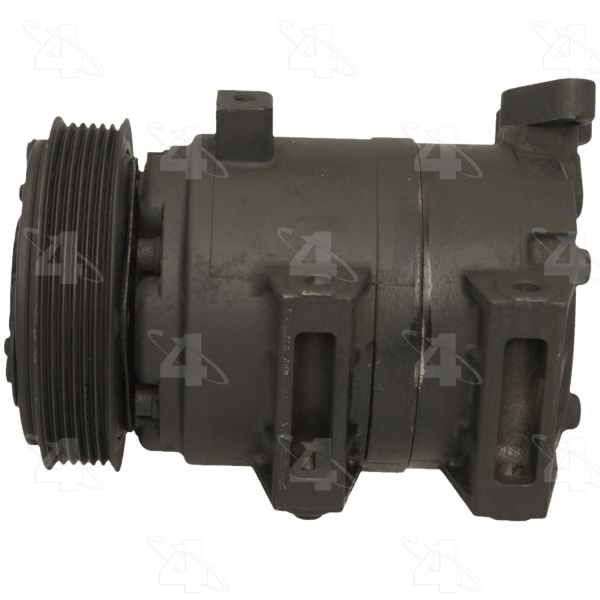

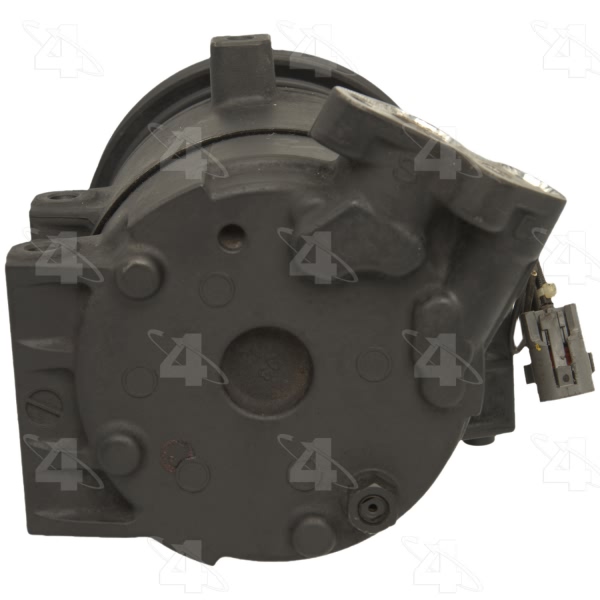

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17D |

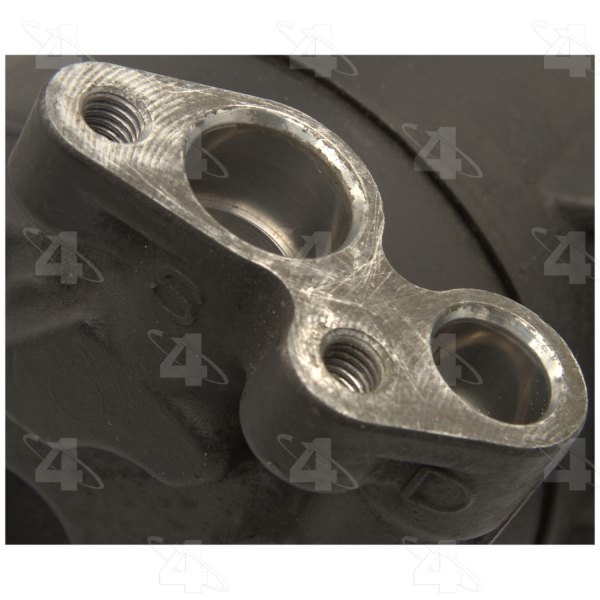

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.296875 |
Mount Distance MM | 58.420 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Smooth Deep |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |

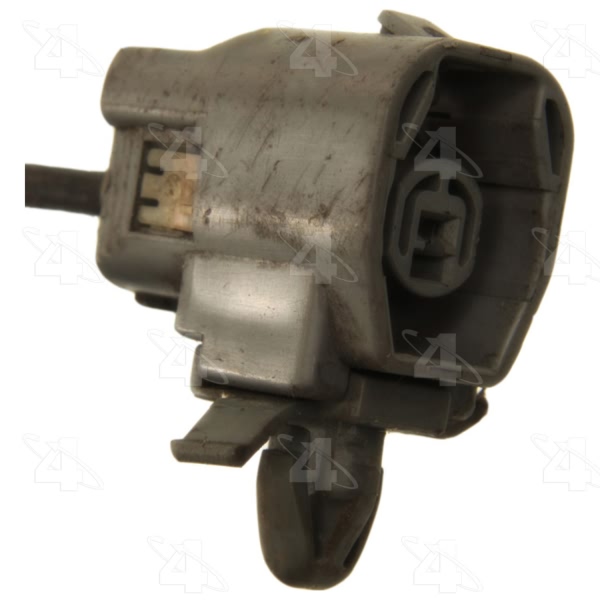

Terminal Type | Pin |
UPC | 096361574113 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2008 Mazda 6 | All Trims | 6 Cyl 3.0L |
