Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57388 |

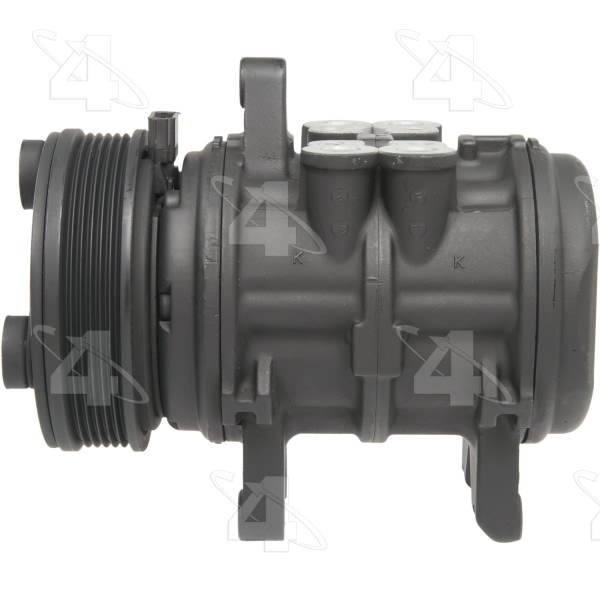

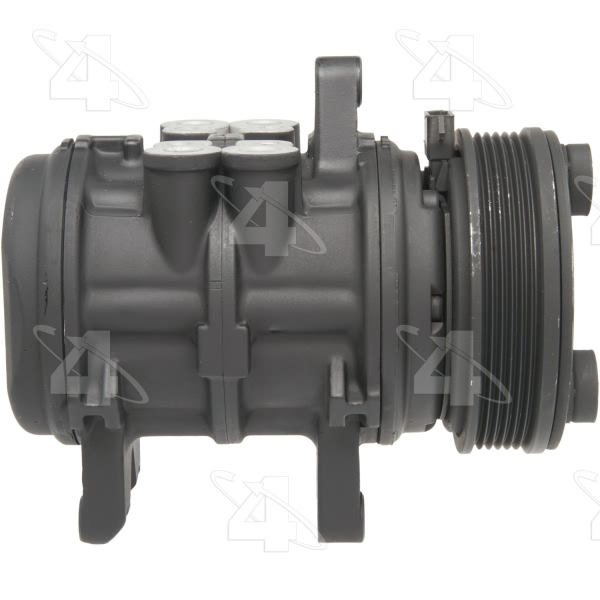

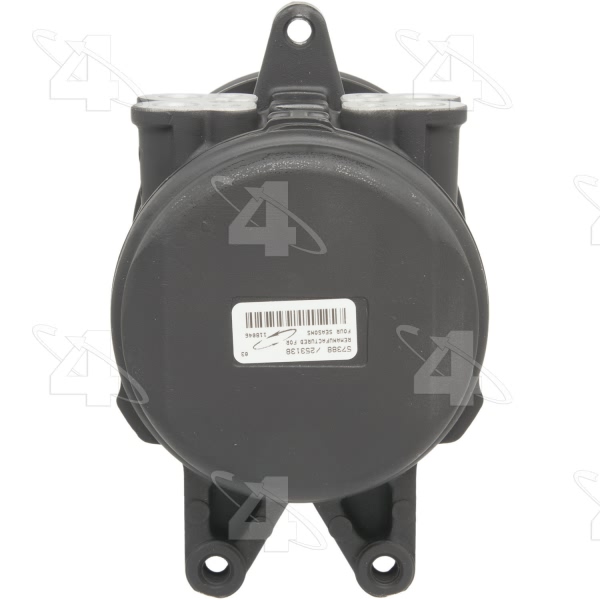

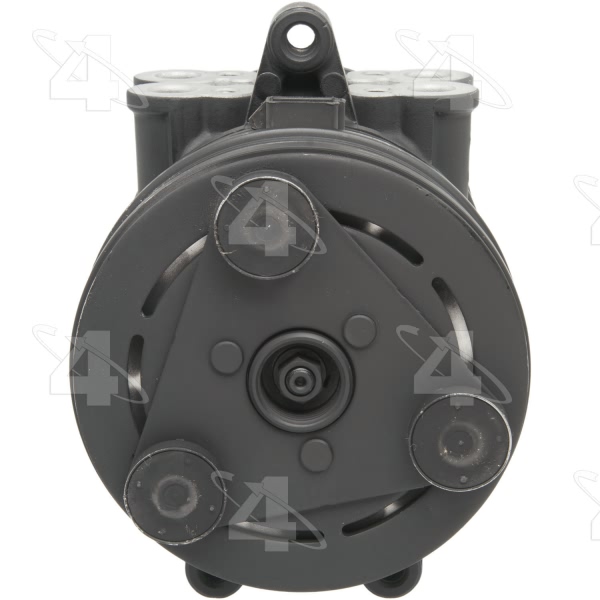

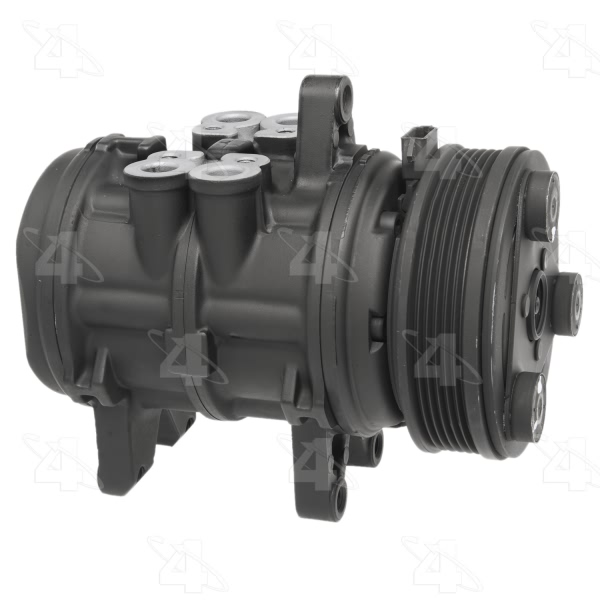

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6P148A |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.734375 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57028] / Clutch Assembly |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361573888 |
Year Make Model | Trim | Engine |
---|---|---|
1982-1993 Ford Mustang | All Trims | 8 Cyl 5.0L |
1983-1986 Ford Mustang | All Trims | 6 Cyl 3.8L |
1988 Mercury Cougar | All Trims | 8 Cyl 5.0L |
