Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57357 |

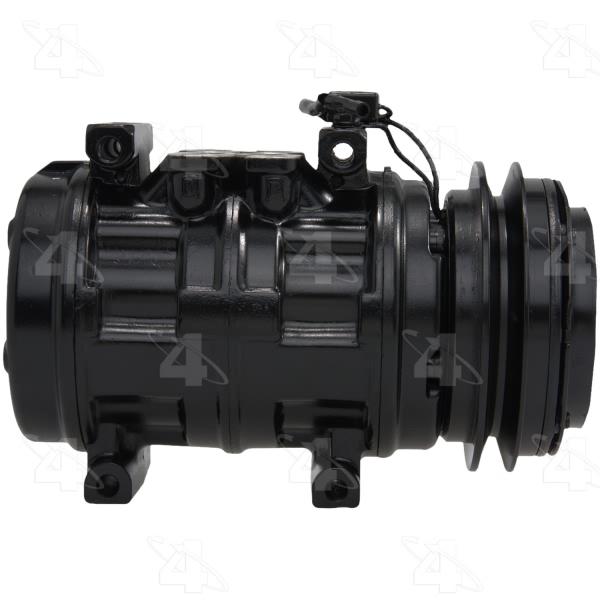

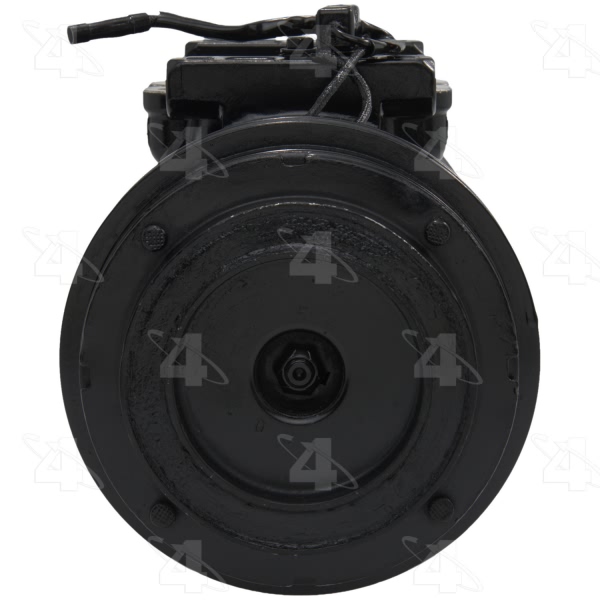

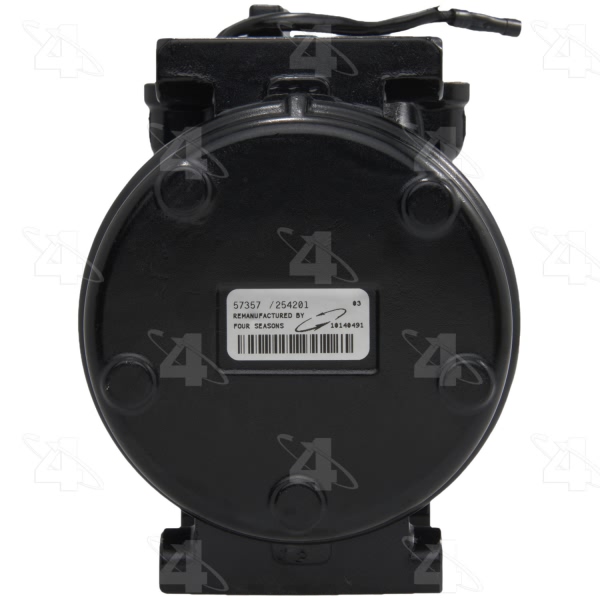

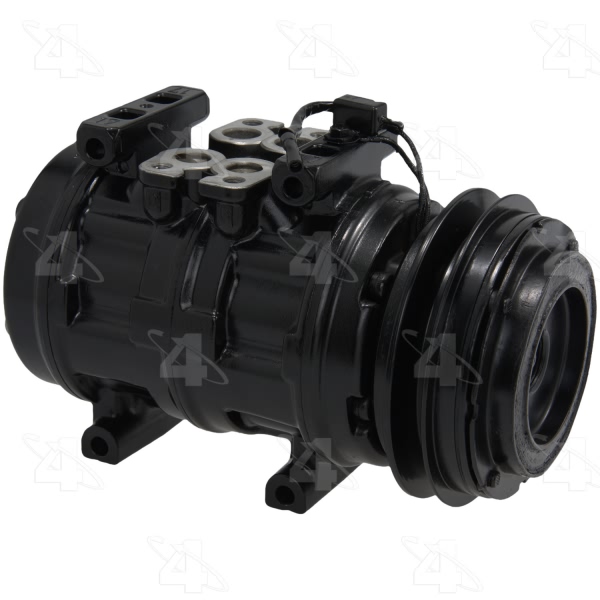

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P17C |
Distance From Clutch To Mounting Flange | 2.203125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57327] / Clutch Assembly |
Suc Prt Typ Note | w/O-Ring |

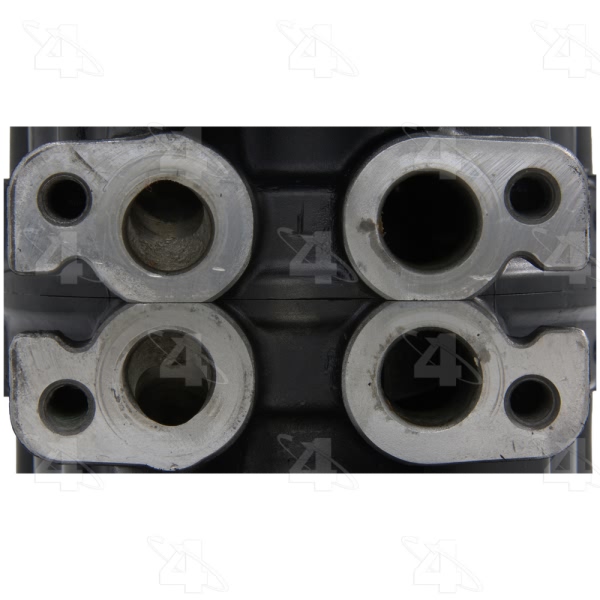

Suction Port Type | Pad Mount |
Terminal Type | Spade |
UPC | 096361573574 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Audi 100 | All Trims | All Engines |
1993-1994 Audi 100 | All Trims | All Engines |
1989-1991 Audi 100 Quattro | All Trims | All Engines |
1993-1994 Audi 100 Quattro | All Trims | All Engines |
1989-1991 Audi 200 | All Trims | All Engines |
1989-1991 Audi 200 Quattro | All Trims | All Engines |
1985-1986 Audi 5000 | All Trims | 5 Cyl 2.2L |
1987-1988 Audi 5000 | All Trims | All Engines |
1986 Audi 5000 Quattro | All Trims | 5 Cyl 2.2L |
1987-1988 Audi 5000 Quattro | All Trims | All Engines |
