Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57344 |

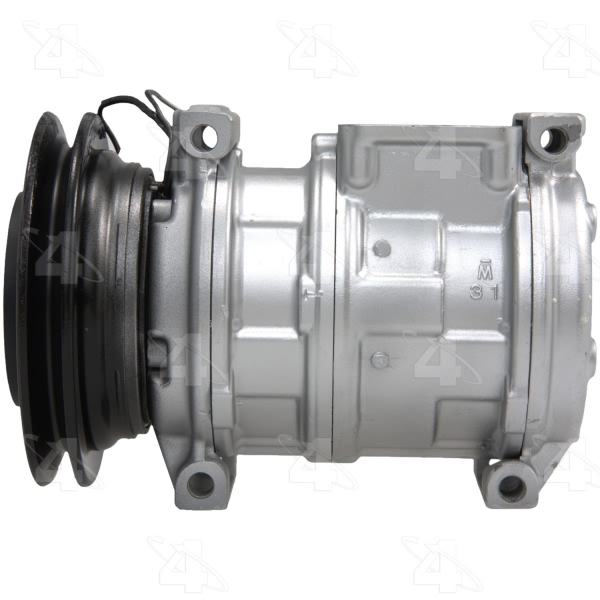

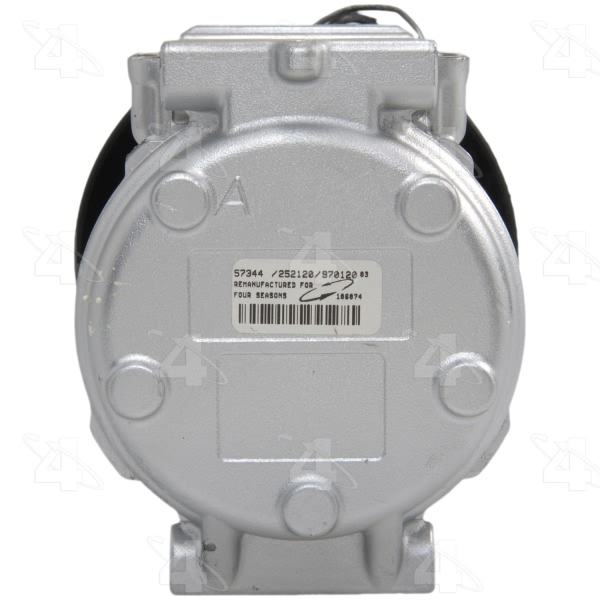

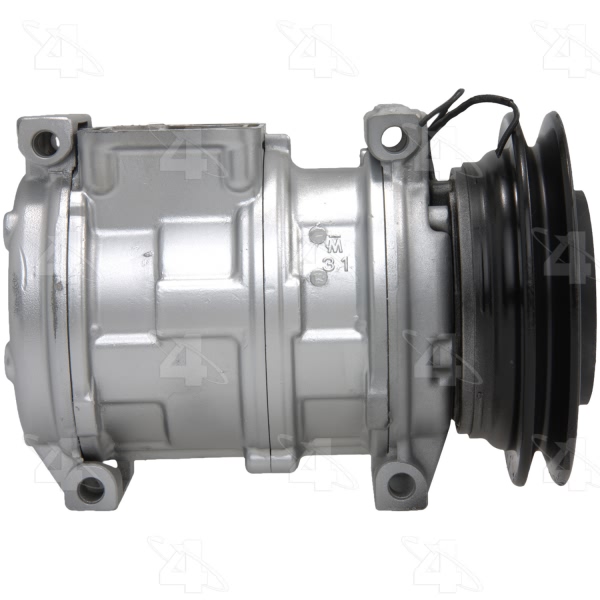

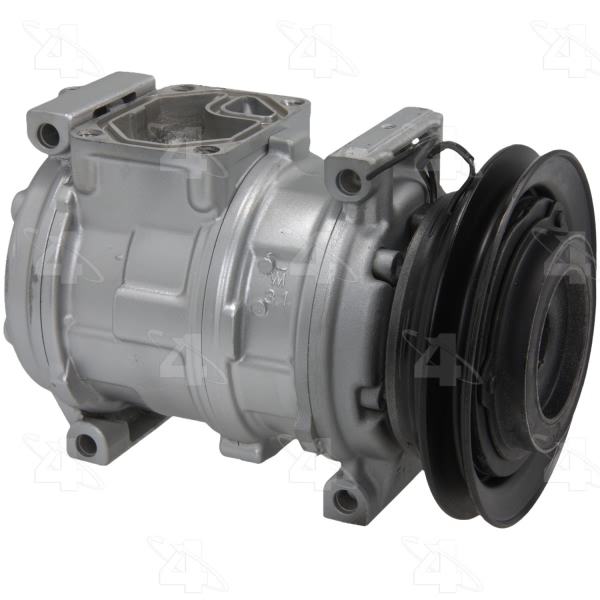

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |
Distance From Clutch To Mounting Flange | 1.703125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold; Requires use of O.E. Connector |

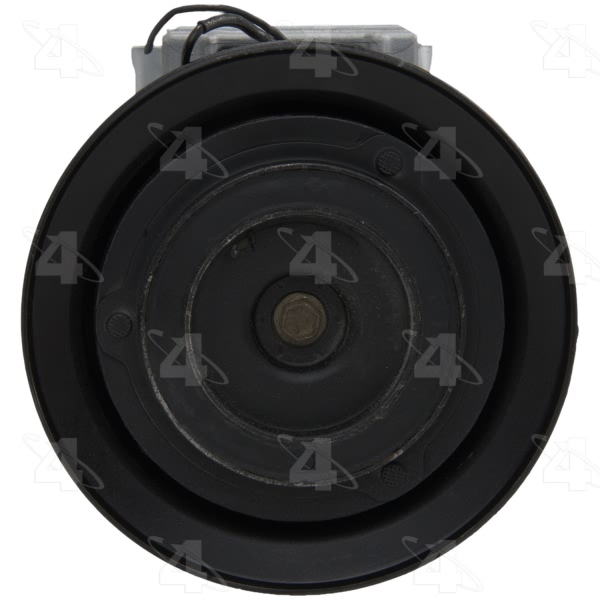

Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57354] |
Suc Prt Typ Note | w/Gasket |

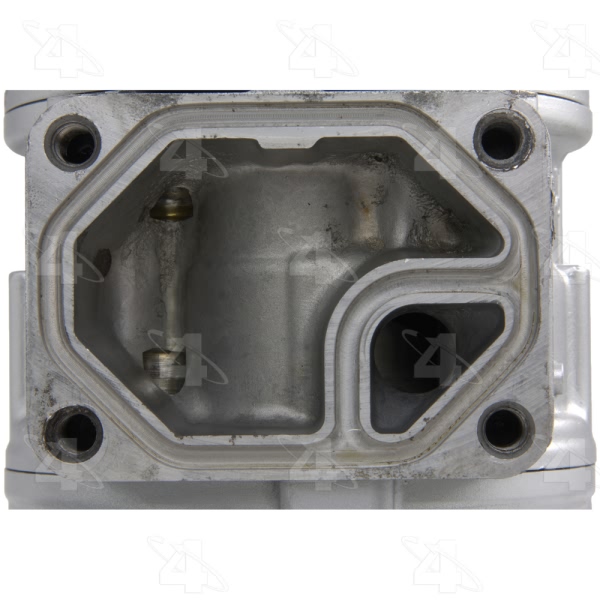

Suction Port Type | Pad Mount |

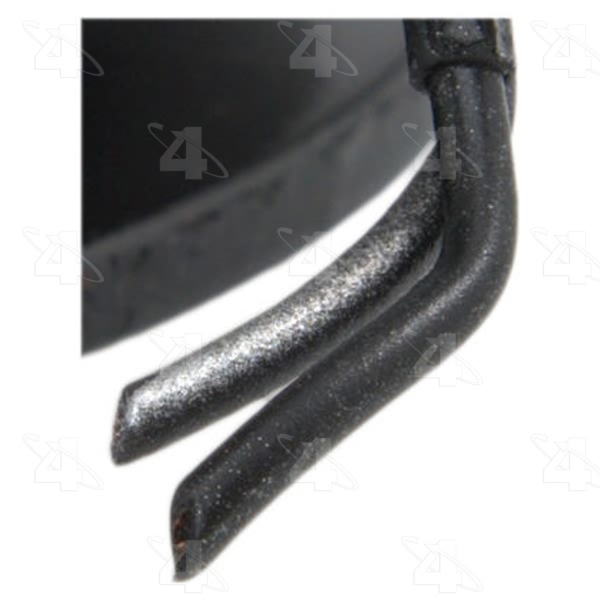

Terminal Type | Spade |
UPC | 096361573444 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2004 Chrysler 300M | All Trims | All Engines |
1993-1997 Chrysler Concorde | All Trims | All Engines |
1998-2001 Chrysler Concorde | All Trims | 6 Cyl 3.2L |
2002-2004 Chrysler Concorde | All Trims | 6 Cyl 3.5L |
1991-1993 Chrysler Daytona | All Trims | 4 Cyl 2.5L |
1991-1993 Chrysler Daytona | All Trims | 6 Cyl 3.0L |
1992-1993 Chrysler Daytona | All Trims | 4 Cyl 2.2L |
1991-1992 Chrysler Dynasty | All Trims | 4 Cyl 2.5L |
1993-1997 Chrysler Intrepid | All Trims | All Engines |
1998-2001 Chrysler Intrepid | All Trims | 6 Cyl 3.2L |
