Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57274 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Distance From Clutch To Mounting Flange | 1.15625 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance. |
Pulley Belt Type | Serpentine |
Pulley Diameter B IN Secondary | 4.213 |
Pulley Diameter B MM Secondary | 107.010 |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57272] / Clutch Assembly |
Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

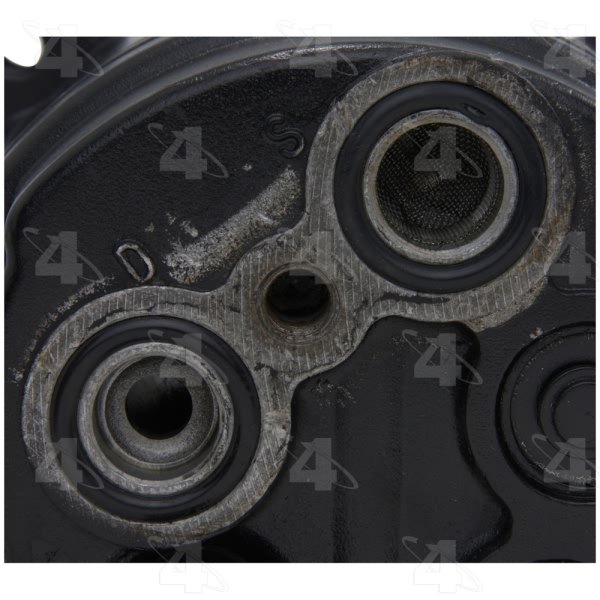

Suction Port Type | Block Mount |
Switch Included | High Pressure |

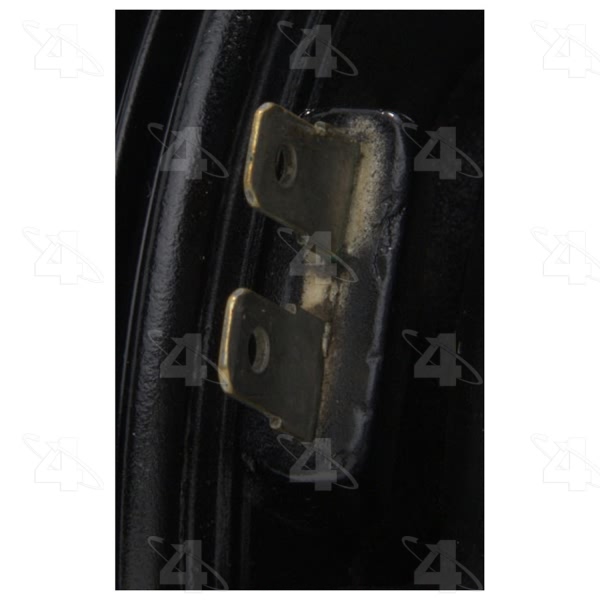

Terminal Type | Spade |
UPC | 096361572744 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1988 Buick Century | All Trims | 4 Cyl 2.5L |
1987-1988 Chevrolet Celebrity | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Ciera | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Cruiser | All Trims | 4 Cyl 2.5L |
1987-1988 Oldsmobile Cutlass Cruiser | All Trims | 6 Cyl 2.8L |
1987-1988 Pontiac 6000 | All Trims | 4 Cyl 2.5L |
1987-1988 Pontiac Fiero | All Trims | 4 Cyl 2.5L |
