Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57271 |
Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 2 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Distance From Clutch To Mounting Flange | 1.796875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57272] / Clutch Assembly |

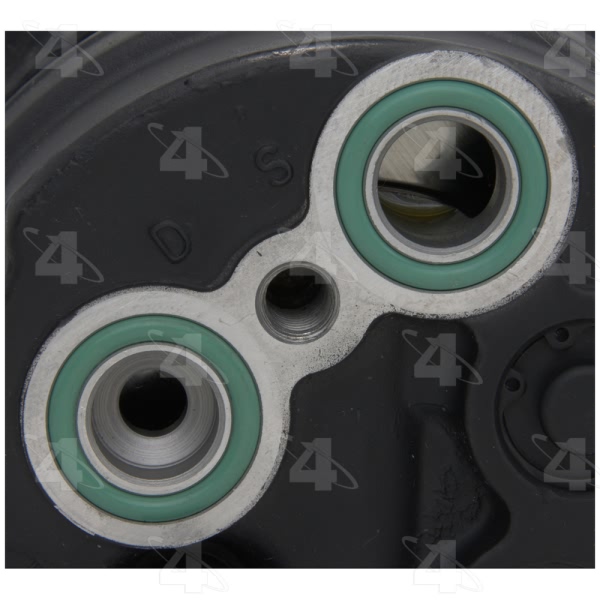

Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

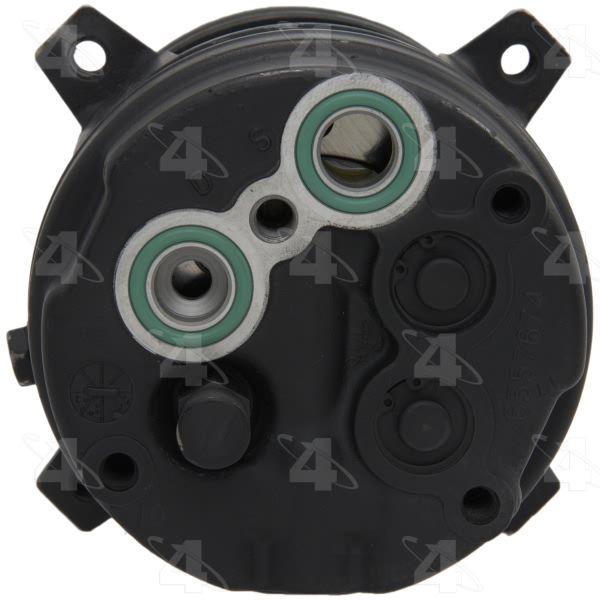

Suction Port Type | Block Mount |
Switch Included | High Pressure |

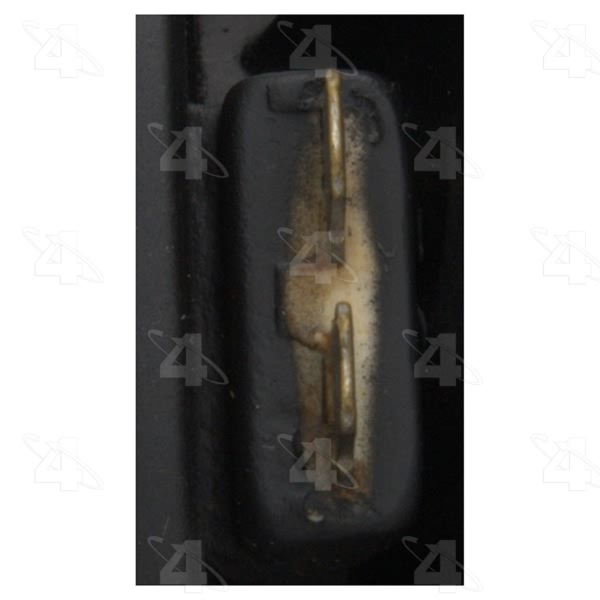

Terminal Type | Spade |
UPC | 096361572713 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Buick Century | All Trims | 4 Cyl 2.5L |
1985-1987 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1986 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
1988 Buick Skyhawk | All Trims | All Engines |
1986 Buick Skylark | All Trims | 6 Cyl 3.0L |
1986-1991 Buick Skylark | All Trims | 4 Cyl 2.5L |
1986-1987 Buick Somerset | All Trims | 4 Cyl 2.5L |
1985 Buick Somerset Regal | All Trims | 4 Cyl 2.5L |
1985-1986 Cadillac Cimarron | All Trims | 4 Cyl 2.0L |
1985-1986 Chevrolet Cavalier | All Trims | 4 Cyl 2.0L |
