Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57269 |

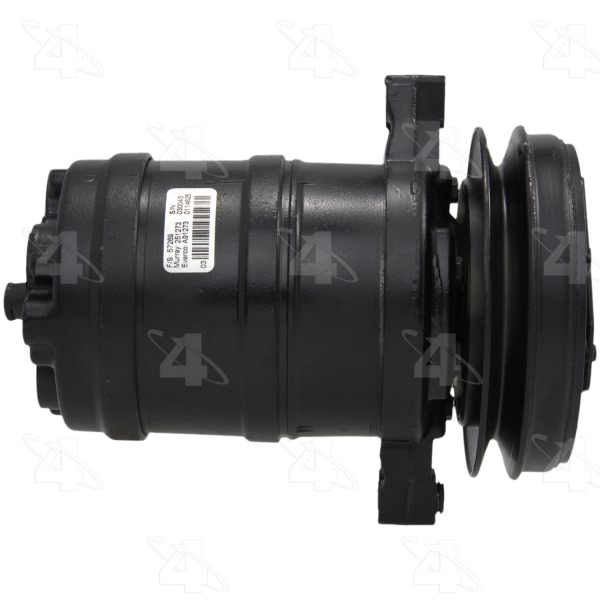

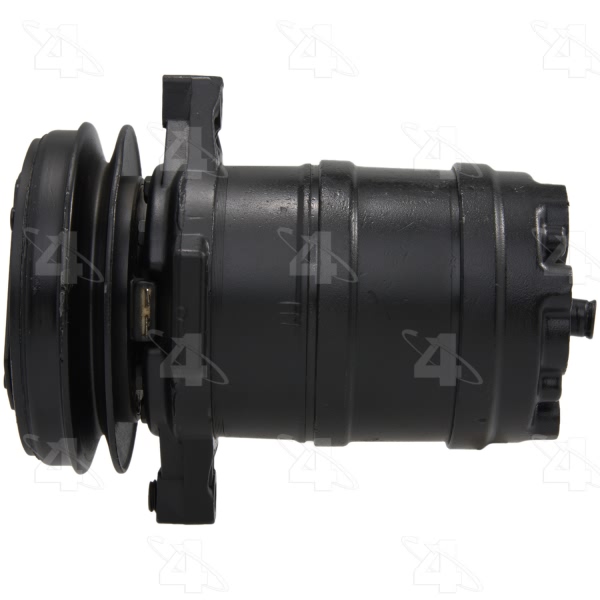

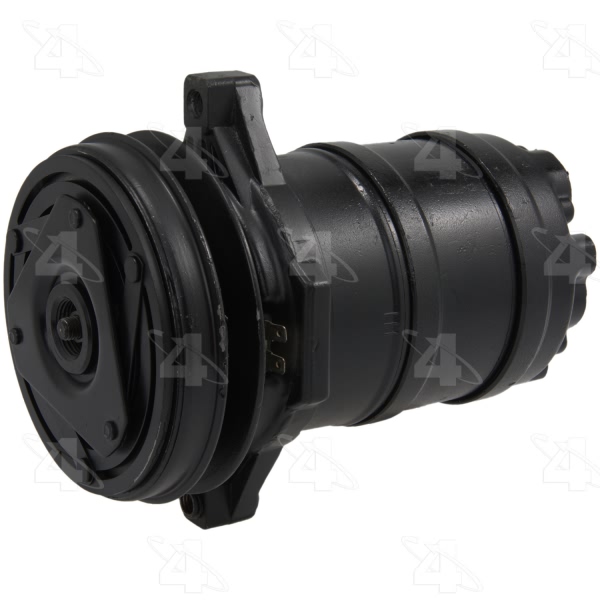

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.4375 |
Clutch Included | Yes |

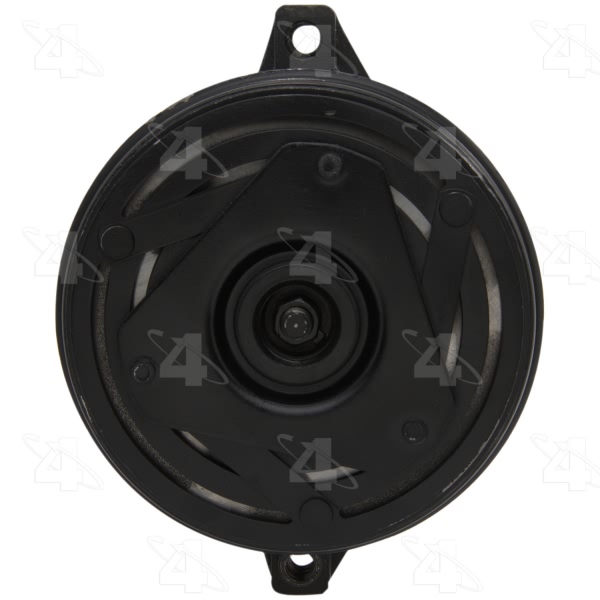

Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 2 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6, DA6 |
Distance From Clutch To Mounting Flange | 0.90625 |
Mounting Hardware | Not Included |
Mounting Type | Type IV Metric Thread |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | 2 Threaded Ears (No Middle Ear) |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

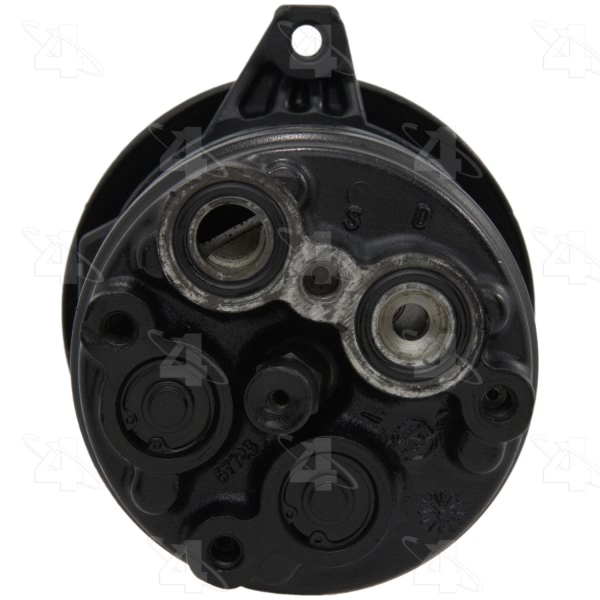

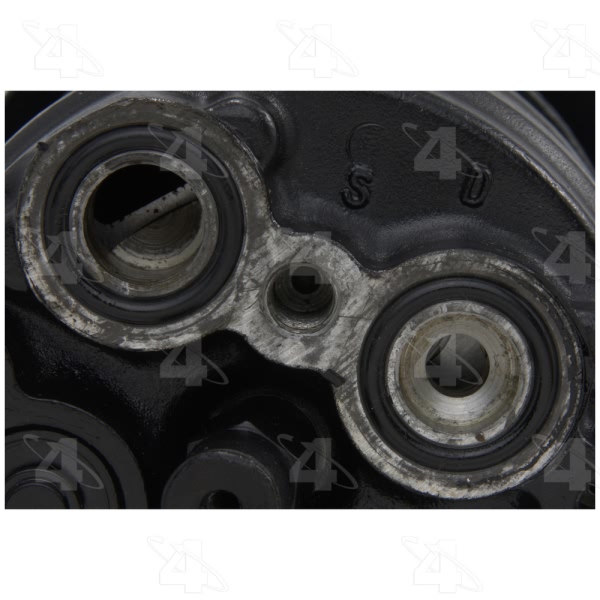

Suction Port Type | Block Mount |
Switch Included | High Pressure |

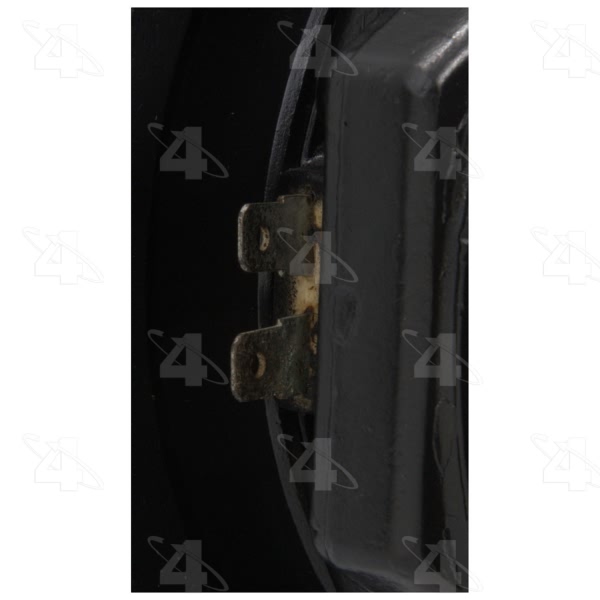

Terminal Type | Spade |
UPC | 096361572690 |
Year Make Model | Trim | Engine |
---|---|---|
1984 Cadillac Cimarron | All Trims | All Engines |
1985-1986 Cadillac Cimarron | All Trims | 6 Cyl 2.8L |
1985-1986 Chevrolet Cavalier | All Trims | 6 Cyl 2.8L |
1985 Pontiac J2000 Sunbird | All Trims | 4 Cyl 2.0L |
