Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57268 |

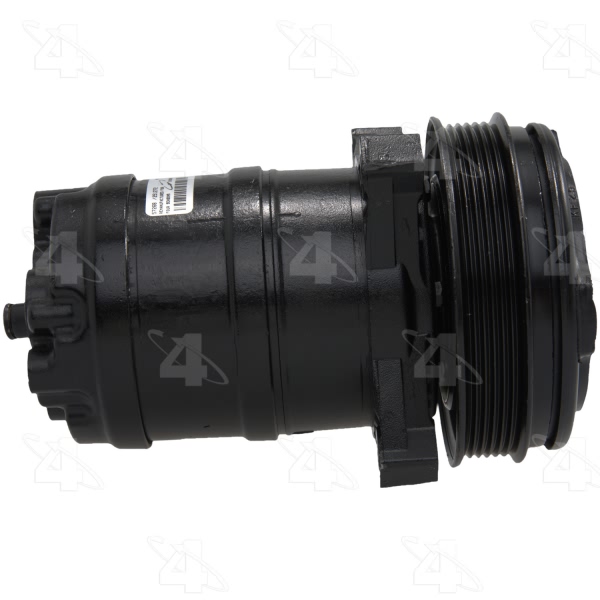

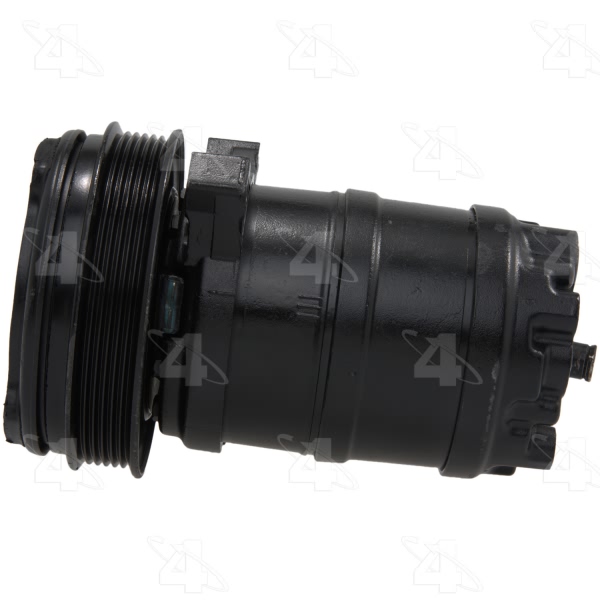

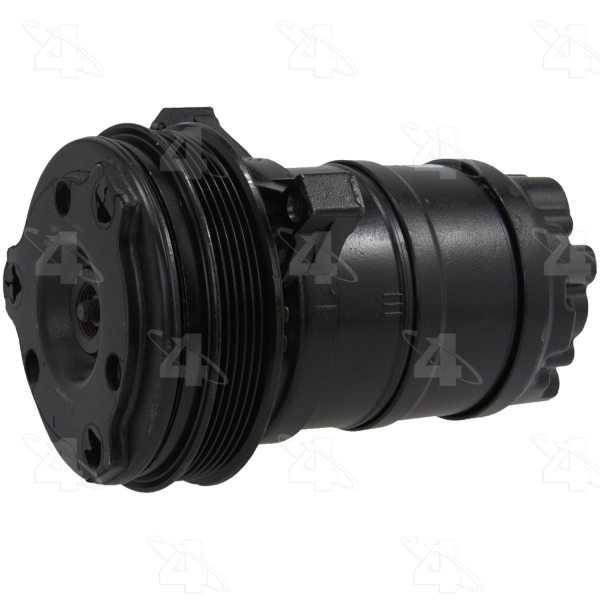

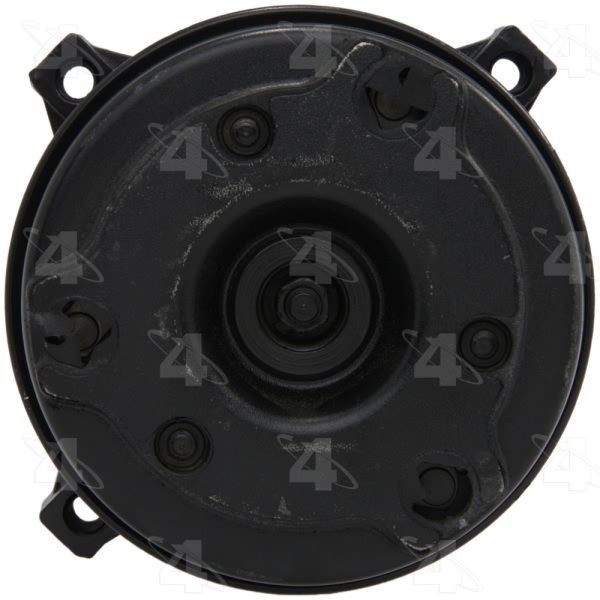

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 6 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6, DA6 |
Distance From Clutch To Mounting Flange | 0.546875 |
Mounting Hardware | Not Included |
Mounting Type | Type III, Metric Threads |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57256] / Clutch Assembly |
Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

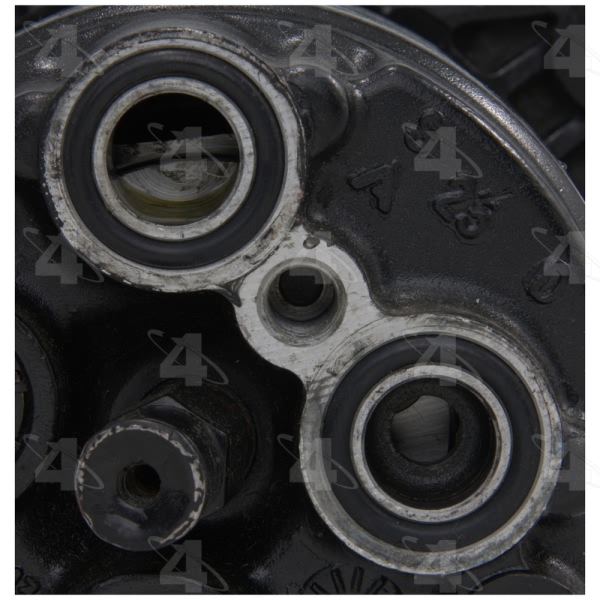

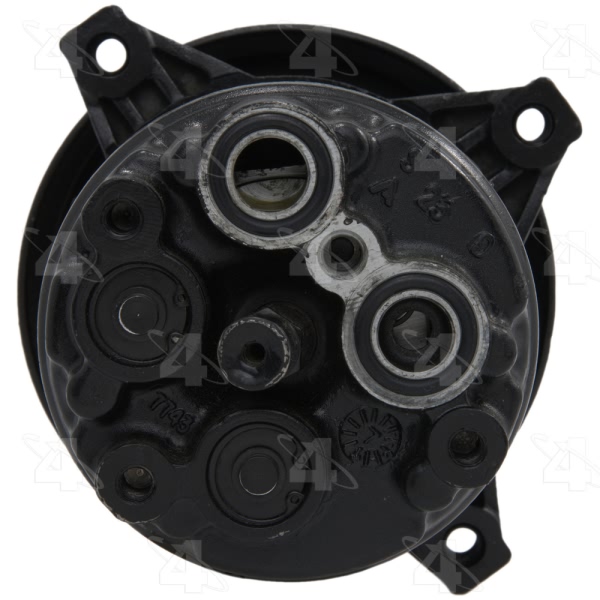

Suction Port Type | Block Mount |
Switch Included | High Pressure |

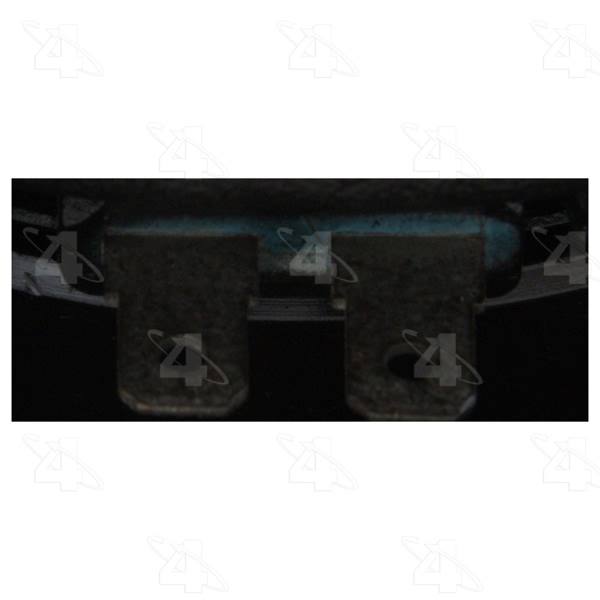

Terminal Type | Spade |
UPC | 096361572683 |
Year Make Model | Trim | Engine |
---|---|---|
1988 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1988 Buick Reatta | All Trims | All Engines |
1986-1988 Buick Riviera | All Trims | All Engines |
1986-1988 Oldsmobile Toronado | All Trims | All Engines |
