Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57240 |

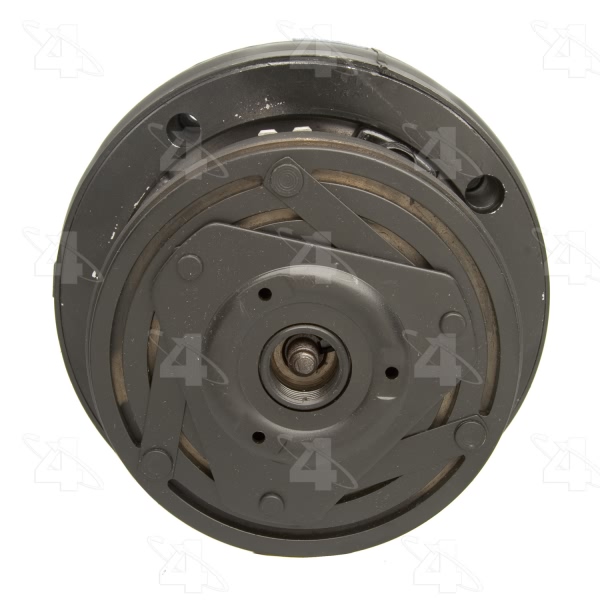

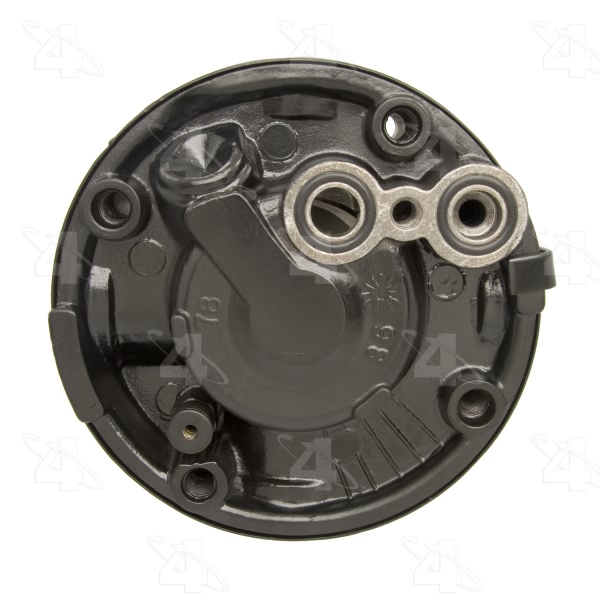

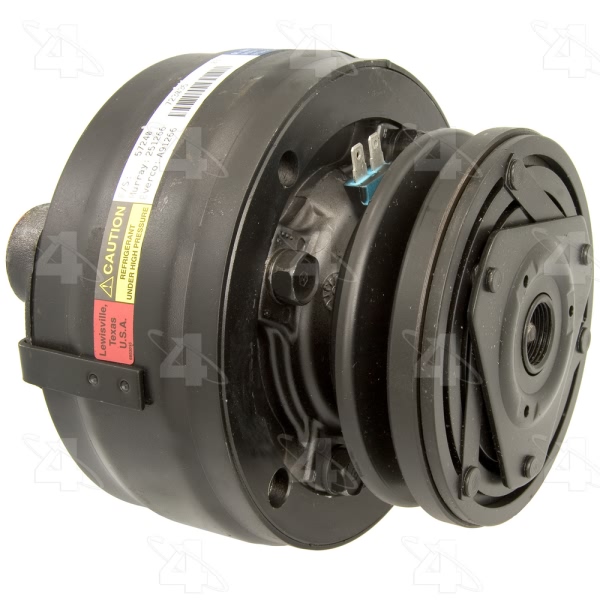

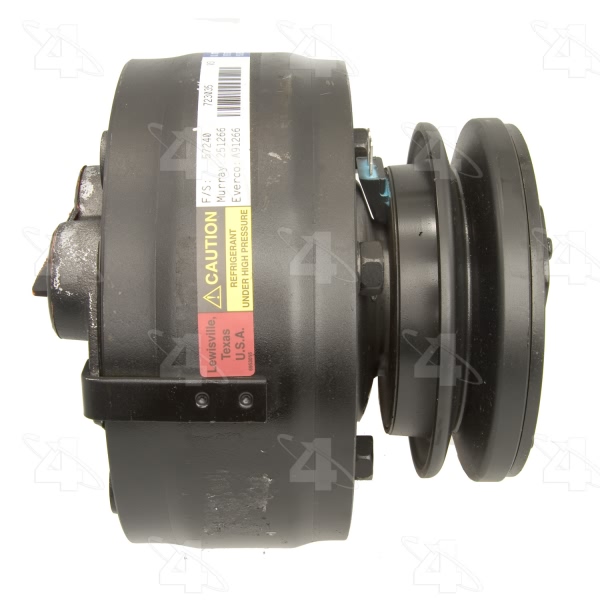

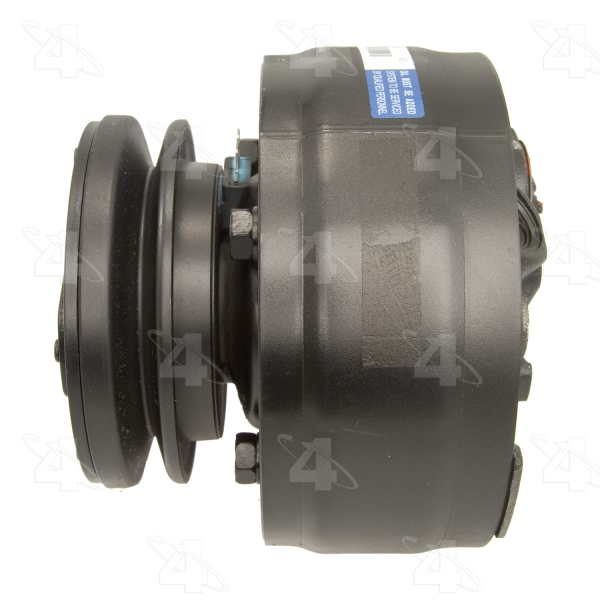

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Distance From Clutch To Mounting Flange | 1.500 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57233] / [57230] |

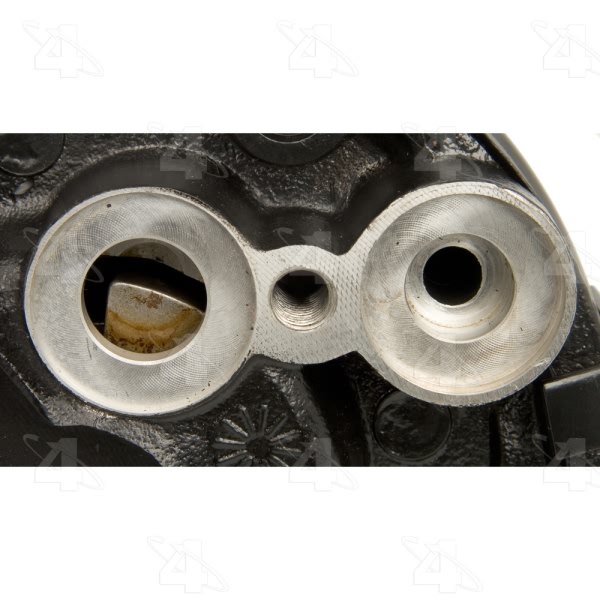

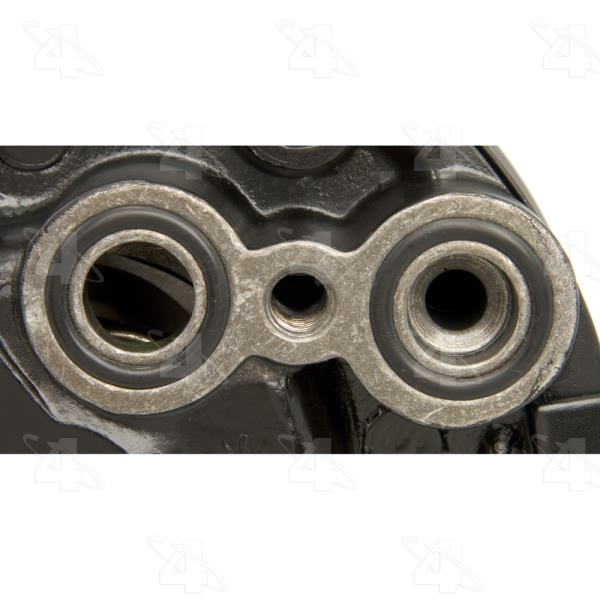

Suction Port Type | O-Ring / Sealing Washer |
Switch Included | High Pressure |
Terminal Type | Spade |
UPC | 096361572409 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1986 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1987 Chevrolet Blazer | All Trims | 8 Cyl 5.0L |
1987-1991 Chevrolet Blazer | All Trims | 8 Cyl 5.7L |
1985-1986 Chevrolet C10 | All Trims | 6 Cyl 4.3L |
1985-1986 Chevrolet C10 | All Trims | 8 Cyl 5.0L |
1985-1986 Chevrolet C10 | All Trims | 8 Cyl 5.7L |
1985-1986 Chevrolet C10 Suburban | All Trims | 8 Cyl 5.0L |
1985-1986 Chevrolet C10 Suburban | All Trims | 8 Cyl 5.7L |
1985 Chevrolet C15 | All Trims | 8 Cyl 5.7L |
1988-1991 Chevrolet C1500 | All Trims | 8 Cyl 5.7L |
