Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57236 |
Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.4375 |

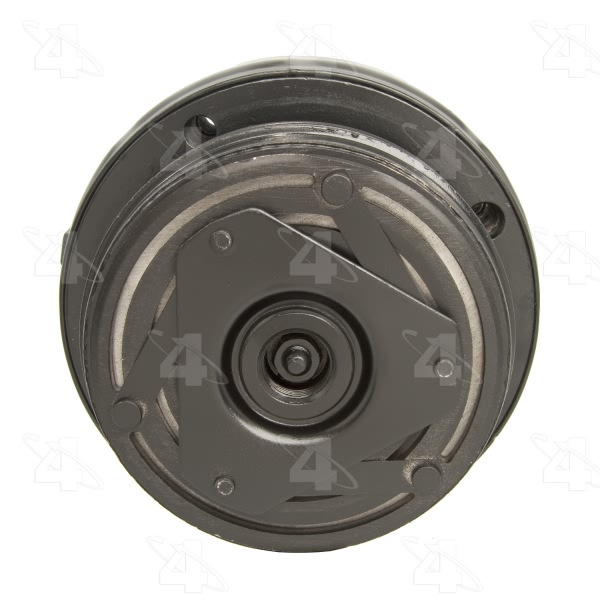

Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 12 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Distance From Clutch To Mounting Flange | 1.203125 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57233] / Reman Compressor; [57230] / Reman Compressor |

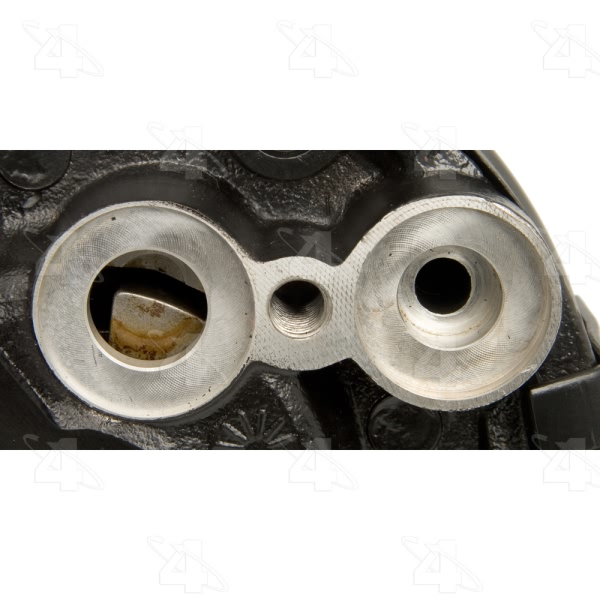

Suction Port Type | O-Ring / Sealing Washer |
Switch Included | High Pressure |

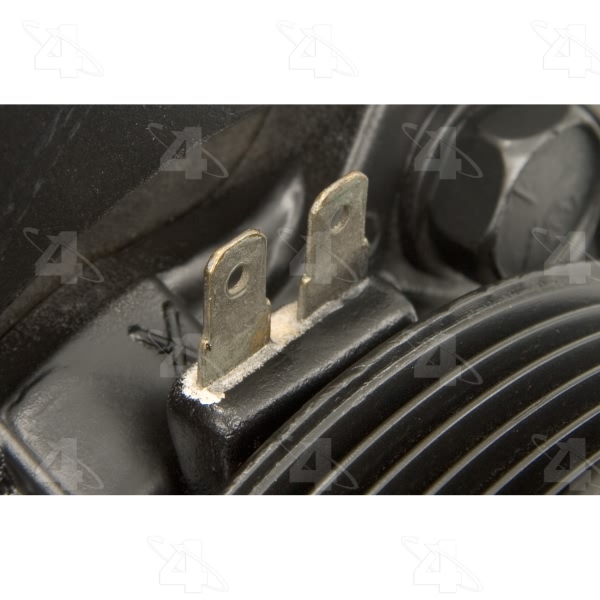

Terminal Type | Spade |
UPC | 096361572362 |
Year Make Model | Trim | Engine |
---|---|---|
1984-1985 Buick Century | All Trims | 4 Cyl 2.5L |
1985 Chevrolet Camaro | All Trims | 6 Cyl 2.8L |
1985-1986 Chevrolet Camaro | All Trims | 4 Cyl 2.5L |
1983 Chevrolet Cavalier | All Trims | All Engines |
1983-1985 Chevrolet Celebrity | All Trims | 4 Cyl 2.5L |
1985 Oldsmobile Cutlass Ciera | All Trims | 4 Cyl 2.5L |
1984 Oldsmobile Firenza | All Trims | 4 Cyl 1.8L |
1984 Oldsmobile Omega | All Trims | 4 Cyl 2.5L |
1985 Pontiac 6000 | All Trims | 4 Cyl 2.5L |
1985 Pontiac Firebird | All Trims | 6 Cyl 2.8L |
