Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57163 |

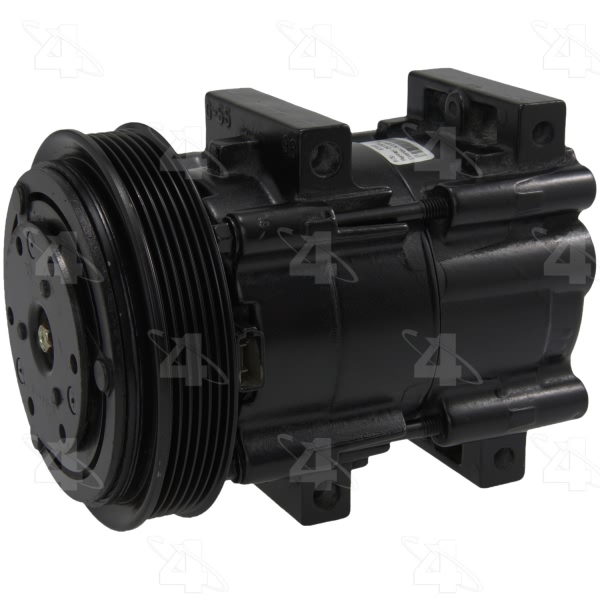

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.225 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |

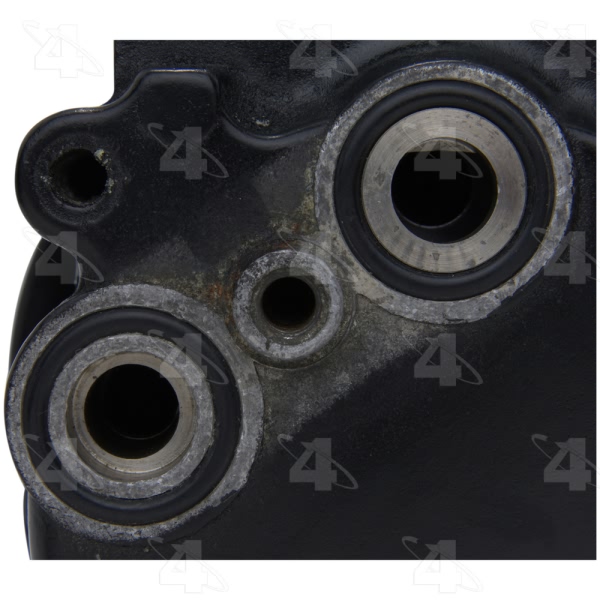

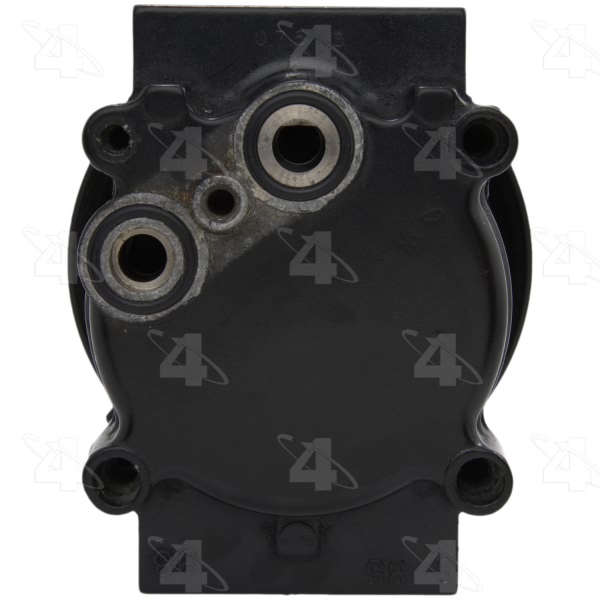

Discharge Port Type | Block Mount |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | Block Mount |

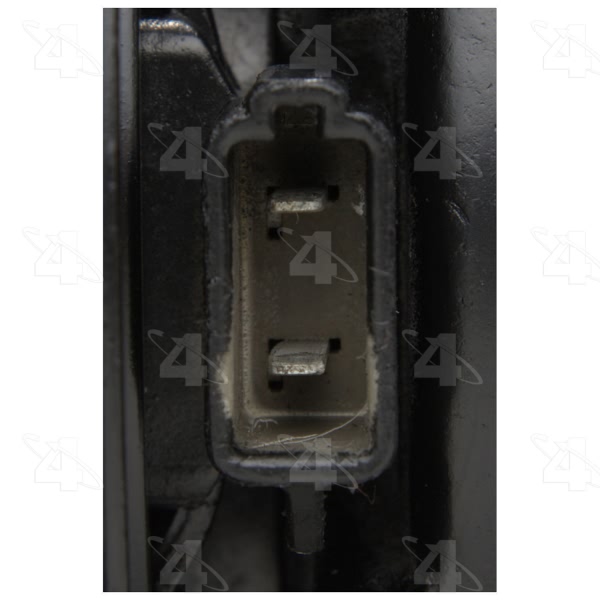

Terminal Type | Pin |
UPC | 096361571631 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2002 Ford Focus | All Trims | 4 Cyl 2.0L |
2001-2003 Ford Ka | All Trims | All Engines |
