Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57152 |

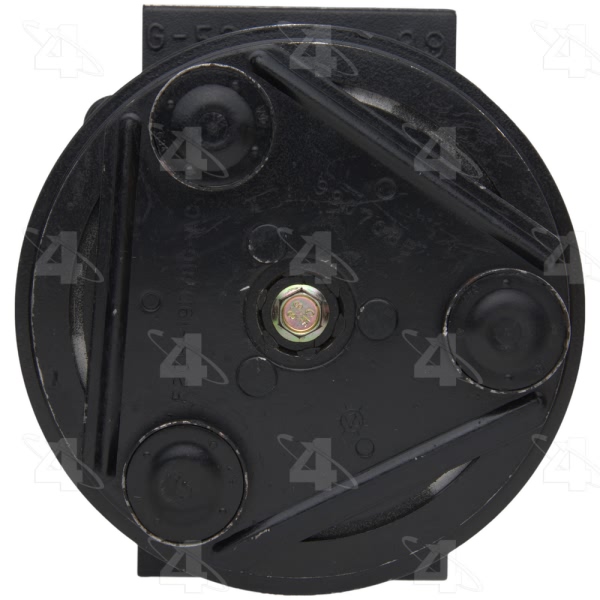

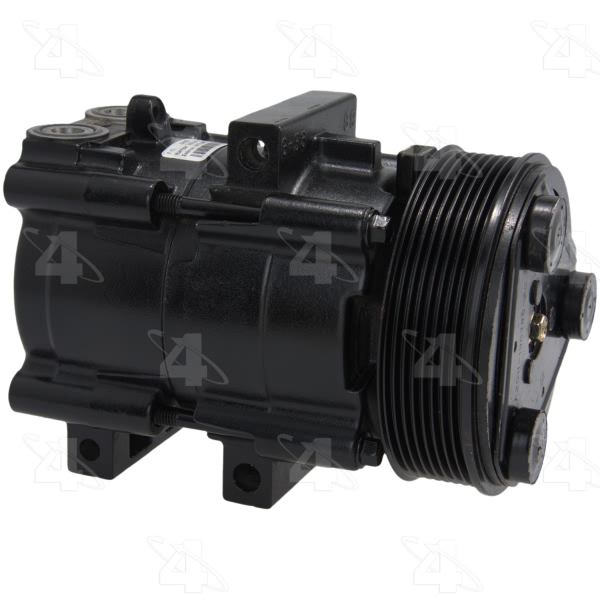

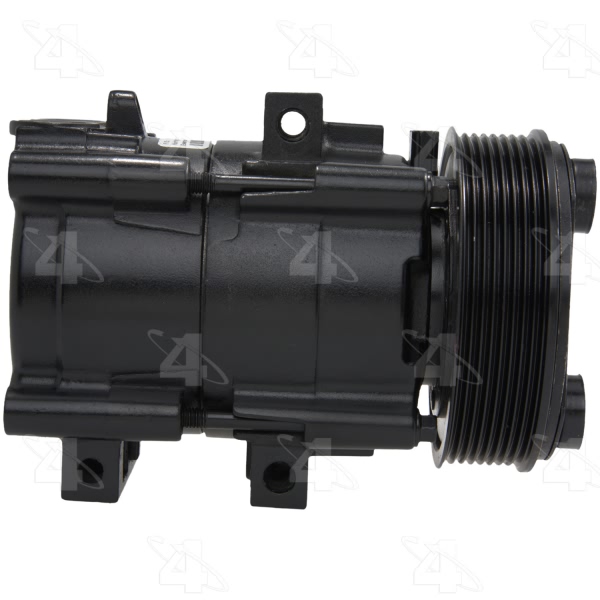

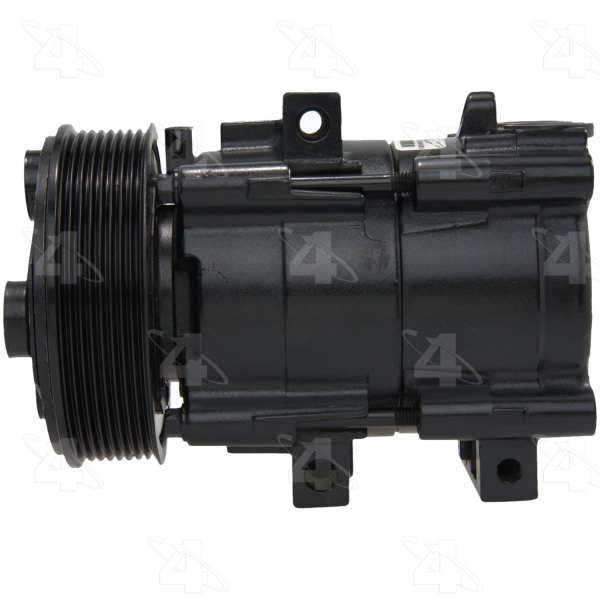

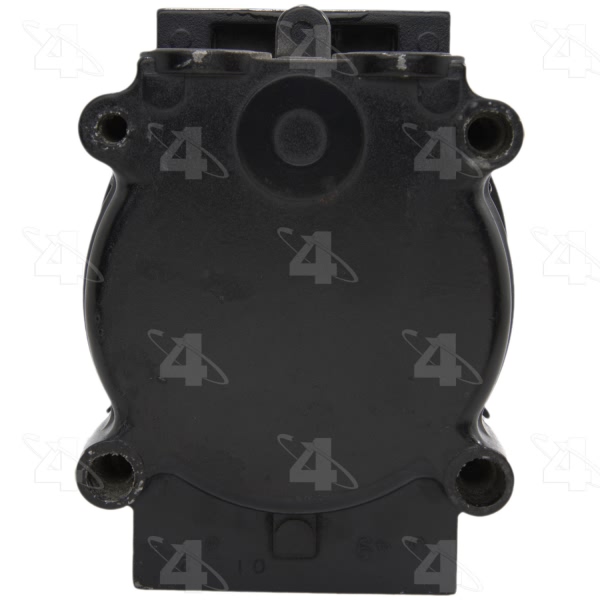

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 1.1875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |
Distance From Clutch To Mounting Flange | 2.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suc Prt Typ Note | W/ O-Ring |

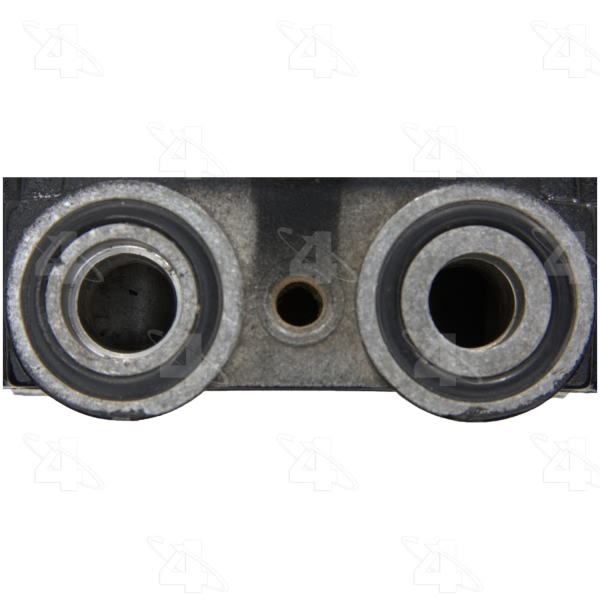

Suction Port Type | Block Mount |
Terminal Type | Pin |
UPC | 096361571525 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2005 Ford Excursion | All Trims | 8 Cyl 6.0L |
1997-2001 Ford F-150 | All Trims | 8 Cyl 4.6L |
1997-2002 Ford F-150 | All Trims | 8 Cyl 5.4L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 5.4L |
1997 Ford F-250 | All Trims | 8 Cyl 4.6L |
1997 Ford F-250 | All Trims | 8 Cyl 5.4L |
1998-2001 Ford F-250 | All Trims | All Engines |
1999-2001 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
1999-2001 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
2003-2007 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
