Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57079 |
Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.4375 |

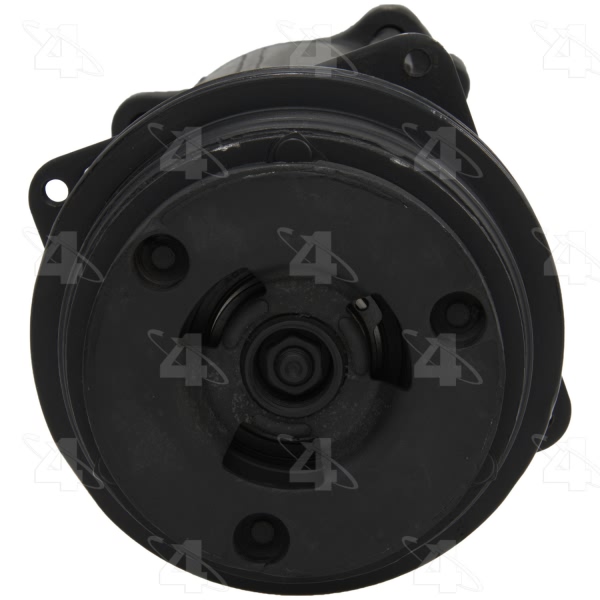

Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | 2 |

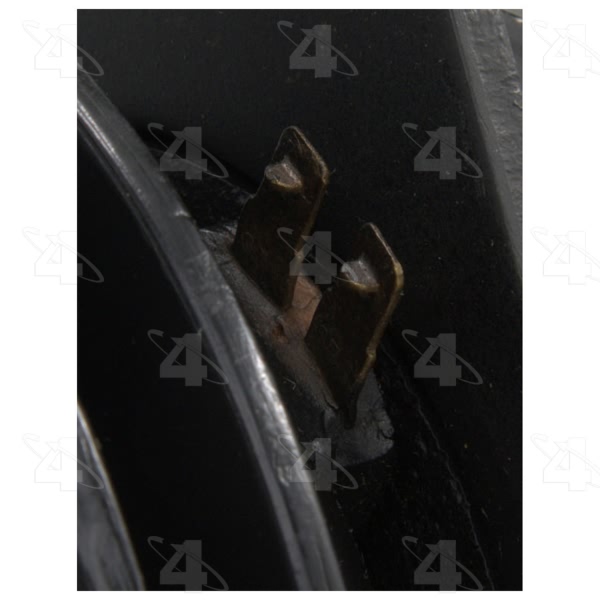

Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | A6 |
Distance From Clutch To Mounting Flange | 1.4375 |
Mounting Hardware | Not Included |
Mounting Type | Direct Mount |
New or Reman | Remanufactured |

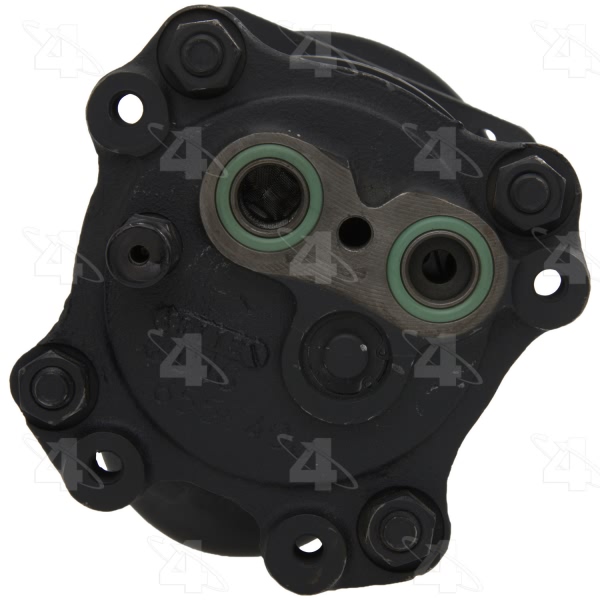

O-Ring A Number/Desc | [24619] / Green Oval O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57052] / Clutch Assembly |
Suc Prt Typ Note | W/ O-Ring |
Suction Port Type | Block Mount |
Switch Included | Superheat |
Terminal Type | Spade |
UPC | 096361570795 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1976 Pontiac Astre | All Trims | All Engines |
1976 Pontiac Sunbird | All Trims | All Engines |
