Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 197567 |

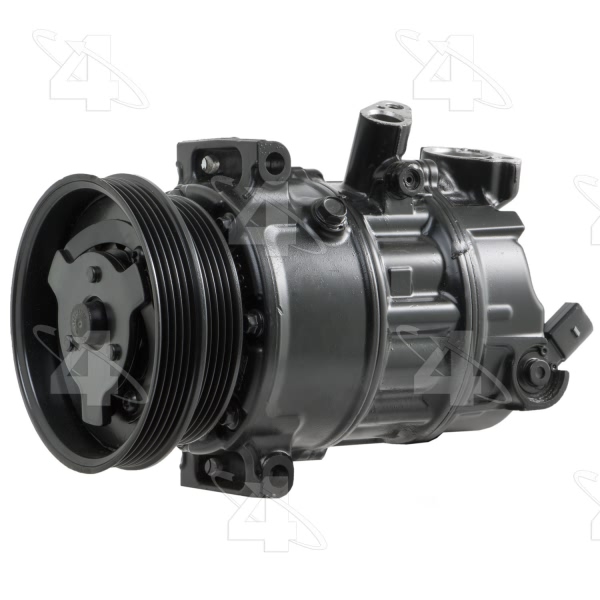

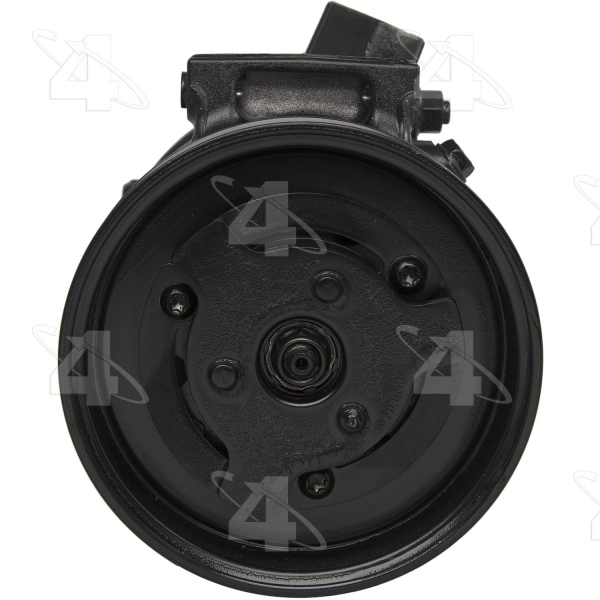

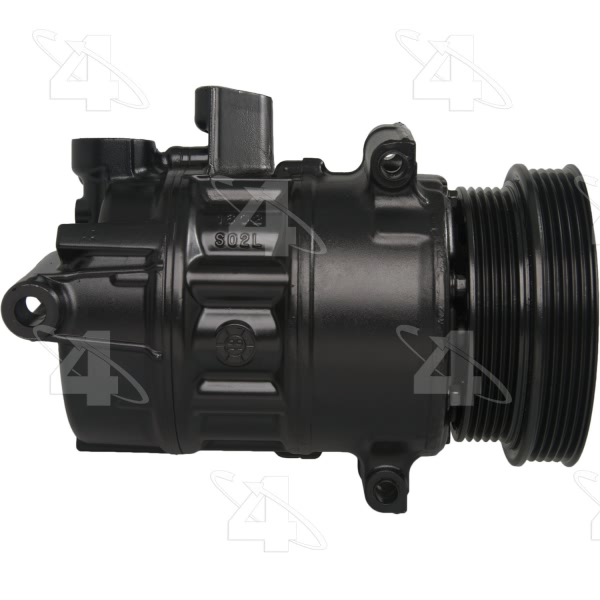

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXE16 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.984375 |
ECV Harness Connector | Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M |
Mount Distance B IN | 2.03125 |
Mount Distance B MM | 51.816 |
Mount Distance MM | 25.146 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter B IN Secondary | 5.000 |
Pulley Diameter B MM Secondary | 127.000 |
Pulley Diameter MM | 111.125 |
Pulley Groove Quantity | 10 |
Pulley Lip Diameter | 4.375 |
Pulley Outside Diameter | 4.375 |
Pulley Ridge Diameter | 4.375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361622333 |
Year Make Model | Trim | Engine |
---|---|---|
2013 Audi TT RS Quattro | All Trims | All Engines |
2007 Volkswagen Beetle | All Trims | All Engines |
2008-2010 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2013-2014 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2010 Volkswagen Beetle Cabrio | All Trims | All Engines |
2006-2008 Volkswagen Bora | All Trims | 4 Cyl 2.0L |
2013-2014 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2014 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2013 Volkswagen Golf SportWagen | All Trims | All Engines |
2005-2014 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
