Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 197380 |

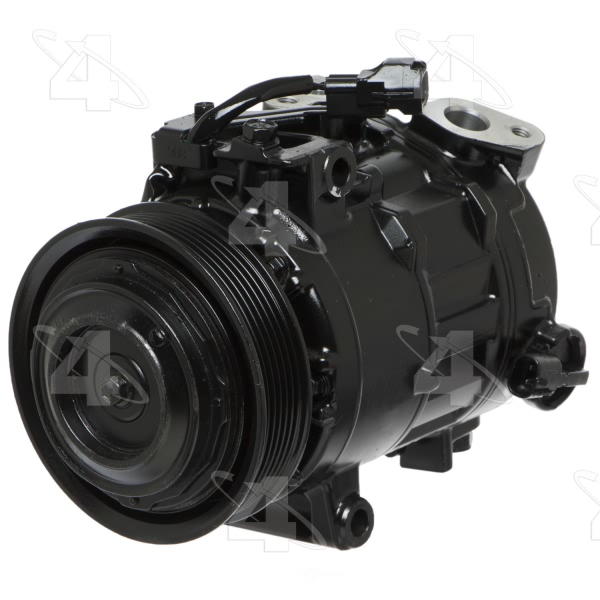

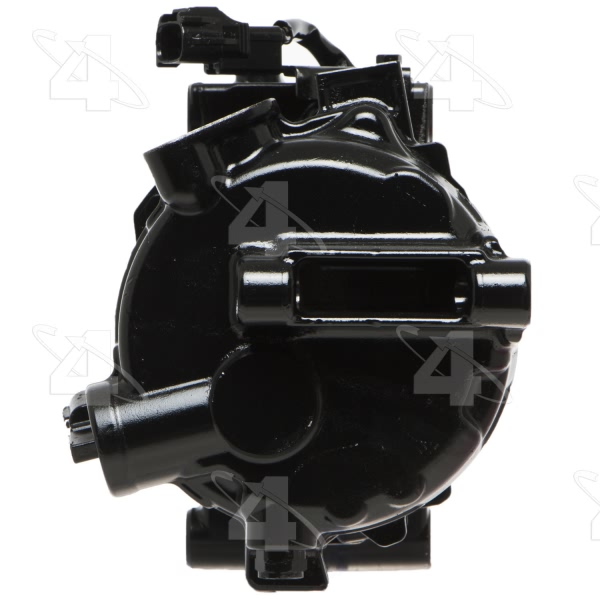

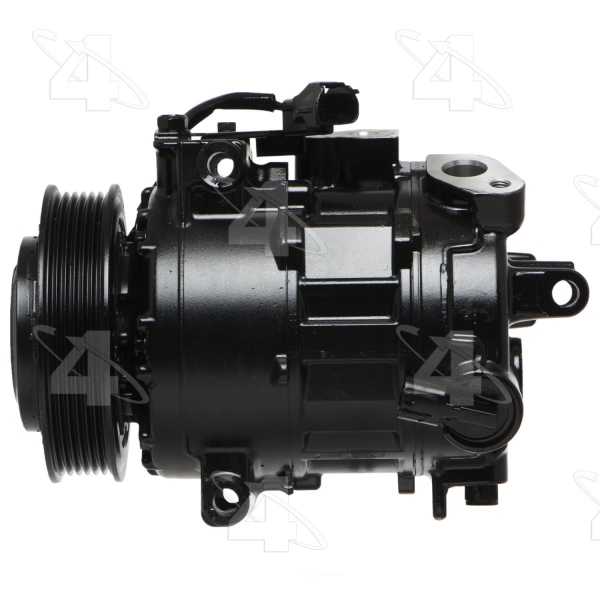

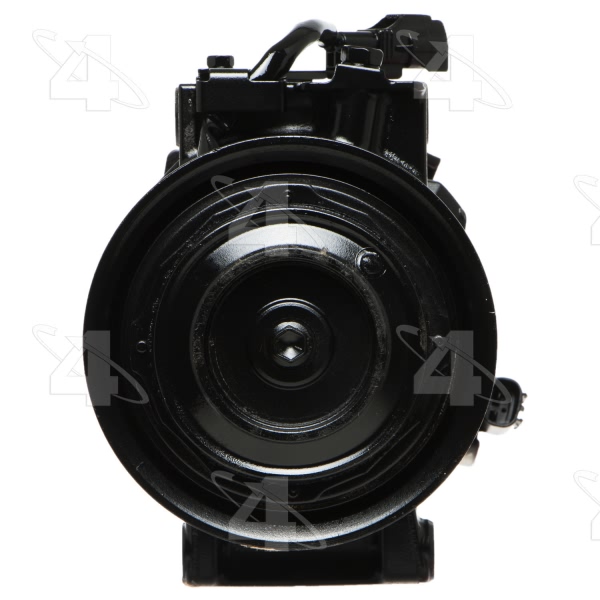

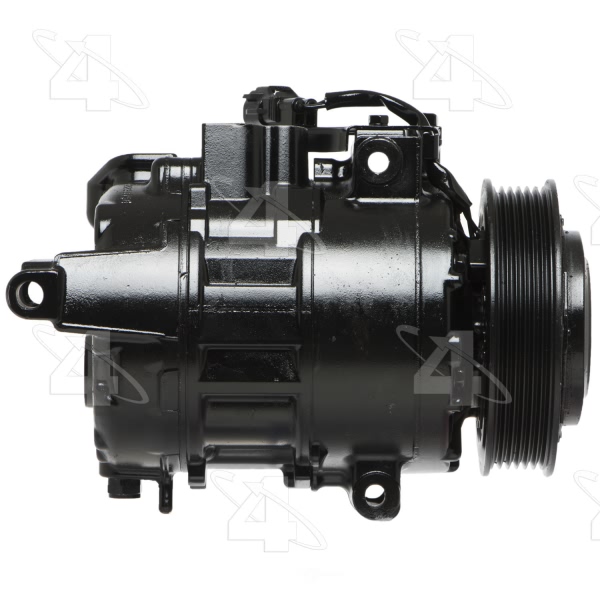

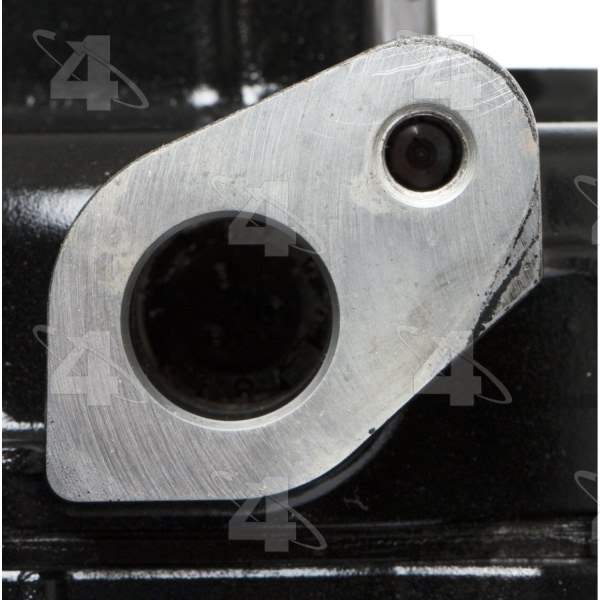

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.71875 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 7SBH17 |
Distance From Clutch To Mounting Flange | 1.265625 |

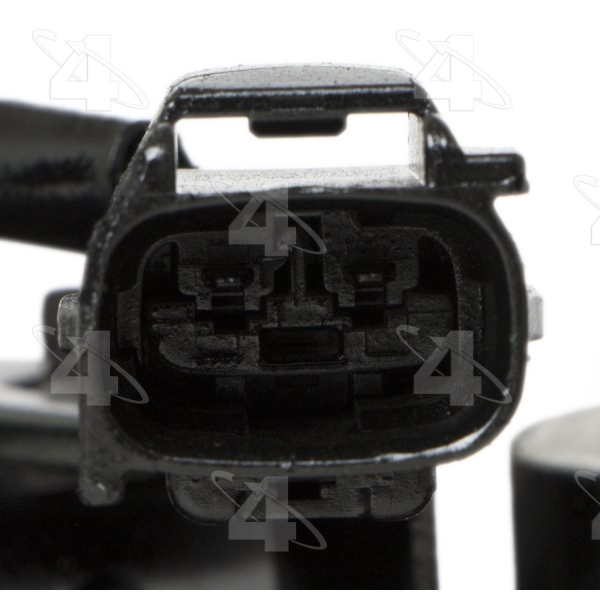

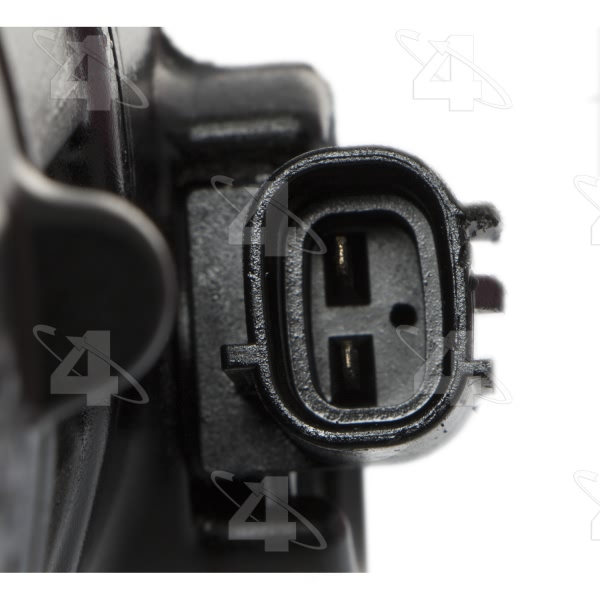

ECV Harness Connector | Compressor SE10F, Vehicle SE10M |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | Remanufactured |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

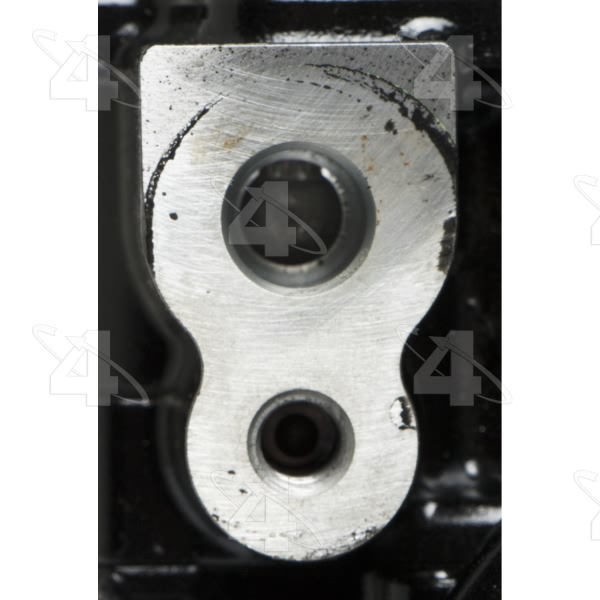

Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.71875 |
Pulley Outside Diameter | 4.71875 |
Pulley Ridge Diameter | 4.71875 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Lead Wire |
UPC | 096361629660 |
Year Make Model | Trim | Engine |
---|---|---|
2014-2019 Ram 1500 | All Trims | 8 Cyl 5.7L |
2019 Ram 1500 Classic | All Trims | 8 Cyl 5.7L |
