Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 167662 |

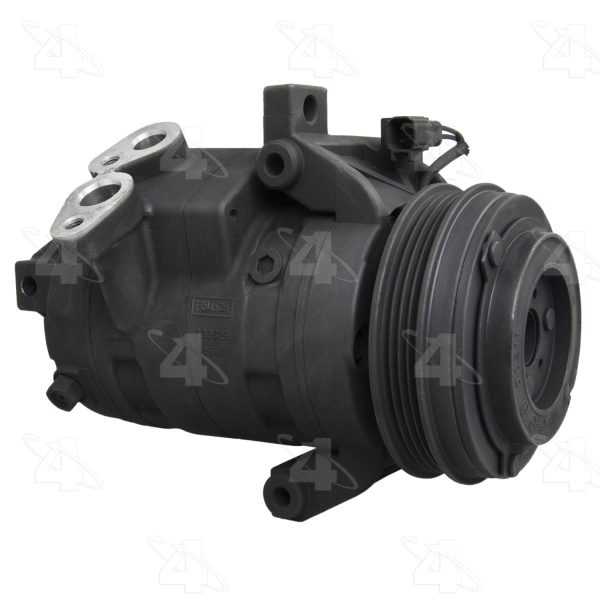

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS20 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.953125 |
Mount Distance MM | 49.530 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361623446 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2017 Ford Expedition | All Trims | All Engines |
2011-2014 Ford F-150 | All Trims | 6 Cyl 3.5L |
2011-2014 Ford F-150 | All Trims | 6 Cyl 3.7L |
2015-2017 Ford Transit-150 | All Trims | 6 Cyl 3.5L |
2015-2017 Ford Transit-150 | All Trims | 6 Cyl 3.7L |
2018 Ford Transit-150 | Base | 6 Cyl 3.5L |
2018 Ford Transit-150 | XL | 6 Cyl 3.5L |
2018 Ford Transit-150 | XLT | 6 Cyl 3.5L |
2018 Ford Transit-150 | Base | 6 Cyl 3.7L |
2018 Ford Transit-150 | XL | 6 Cyl 3.7L |
