Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 167646 |

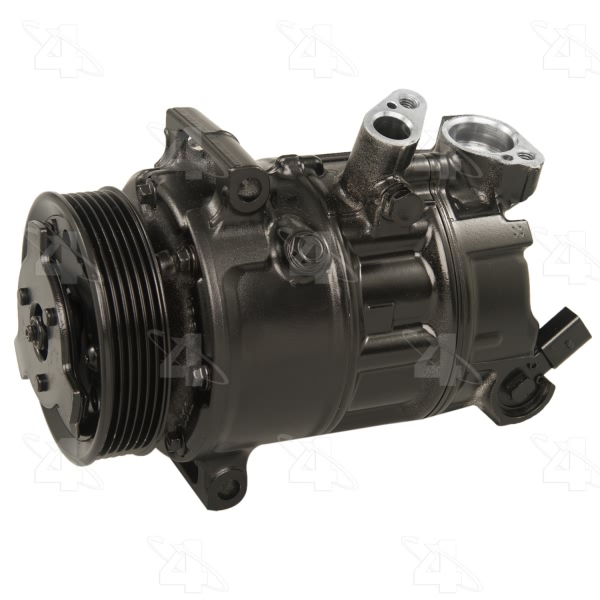

Part Description | Remanufactured A C Compressor With Clutch |

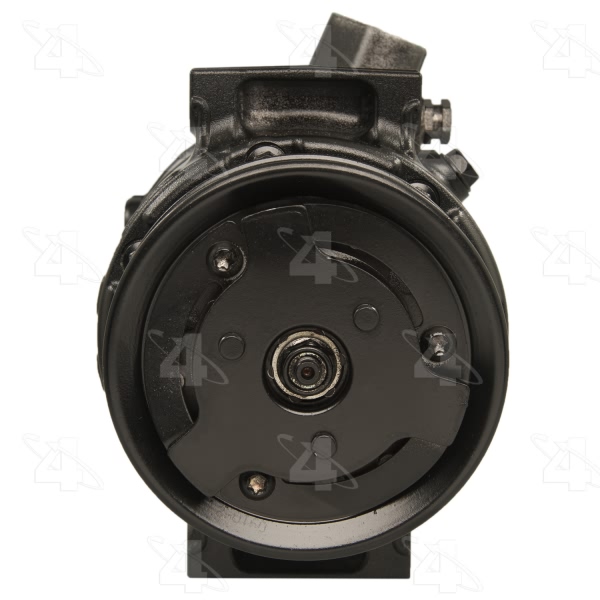

Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | NR |
Coil Type | Coil Less |
Coil Voltage | NR |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXE16 |

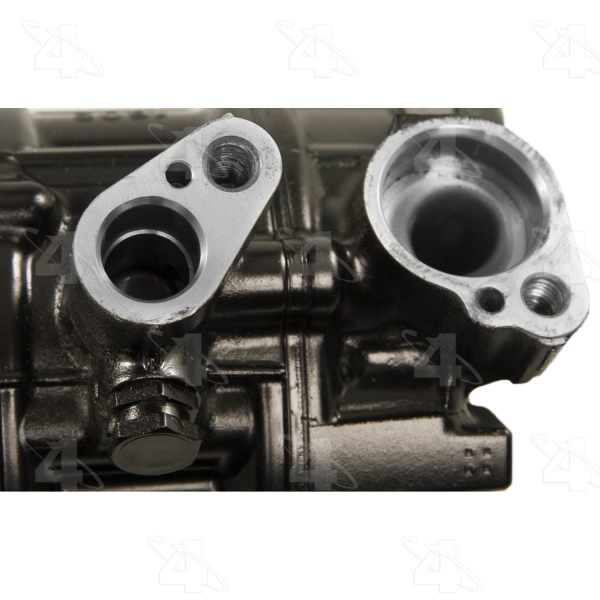

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.234375 |

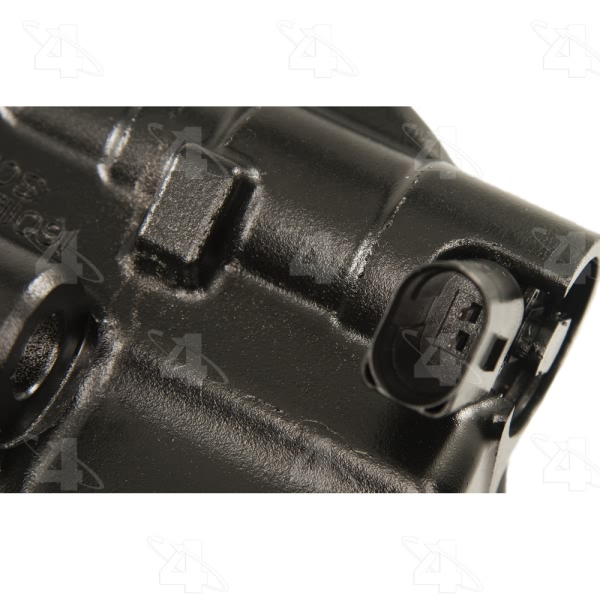

ECV Harness Connector | Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M |
Mount Distance MM | 31.242 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361622401 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Audi A3 | All Trims | 4 Cyl 2.0L |
2010 Audi A3 Quattro | All Trims | All Engines |
2013 Audi A3 Quattro | All Trims | All Engines |
2008 Audi TT | All Trims | All Engines |
2008 Audi TT Quattro | All Trims | All Engines |
2012-2015 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2014 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2009 Volkswagen Bora | All Trims | 4 Cyl 2.0L |
2010 Volkswagen CC | All Trims | 6 Cyl 3.6L |
2011-2015 Volkswagen CC | All Trims | All Engines |
