Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 167330 |

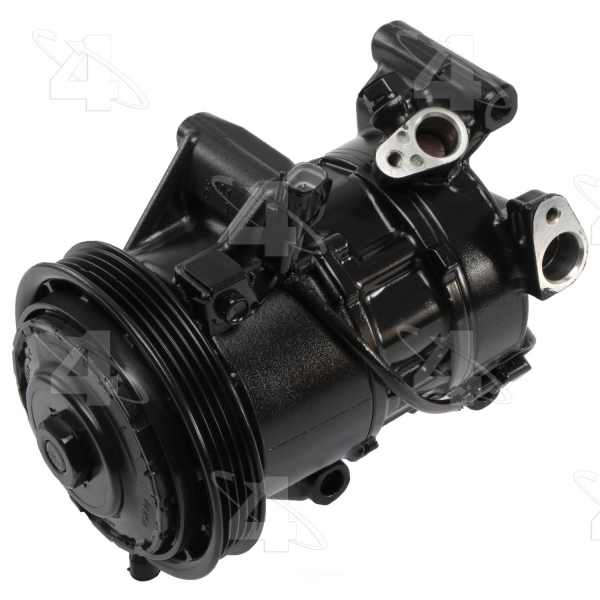

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.330 or 4.750 |
Coil Clock Position | Lead Wire or Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | Pag 46 or See under hood decal for proper oil type. |
Compressor Type | 5TSE10C |
Distance From Clutch To Mounting Flange | 2.078125 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | Reman or Remanufactured |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine or Serpetine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.330 or 4.750 |
Pulley Outside Diameter | 4.330 or 4.750 |
Pulley Ridge Diameter | 4.330 or 4.750 |
Refrigerant Type | R-134a or R1234yf |
Terminal Type | Lead Wire or Pin |
UPC | 096361144613 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2018 Toyota Yaris | All Trims | All Engines |
2017-2018 Toyota Yaris iA | All Trims | All Engines |
