Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157389 |

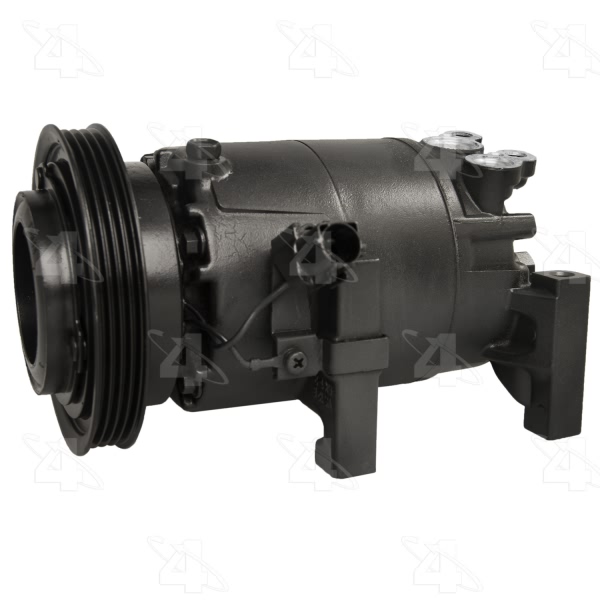

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.890625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HCC-VS12 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.78125 |
Mount Distance MM | 70.866 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 124.206 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.890625 |
Pulley Outside Diameter | 4.890625 |
Pulley Ridge Diameter | 4.890625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361622289 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2011 Kia Soul | All Trims | 4 Cyl 2.0L |
