Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157382 |

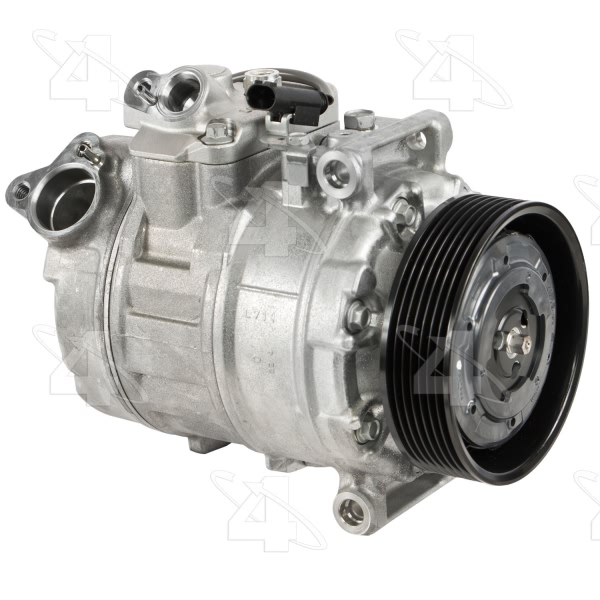

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |

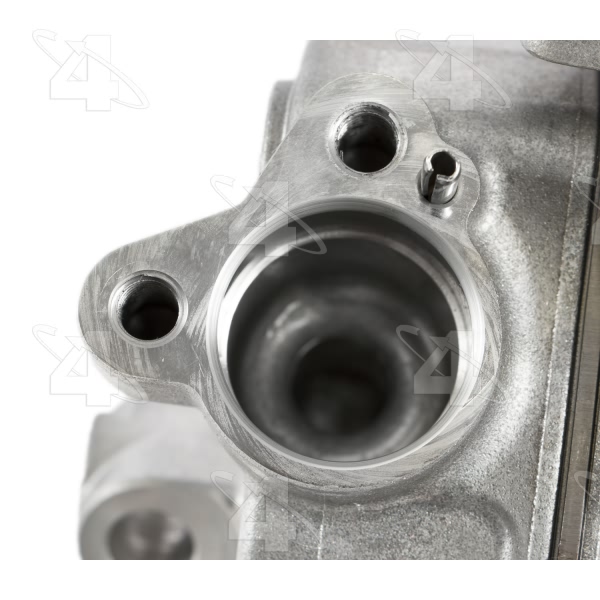

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.046875 |

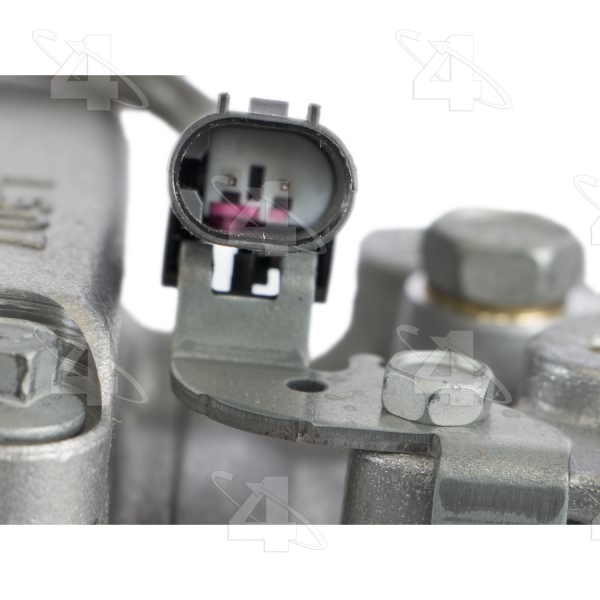

ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
Mount Distance MM | 26.670 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.982 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |

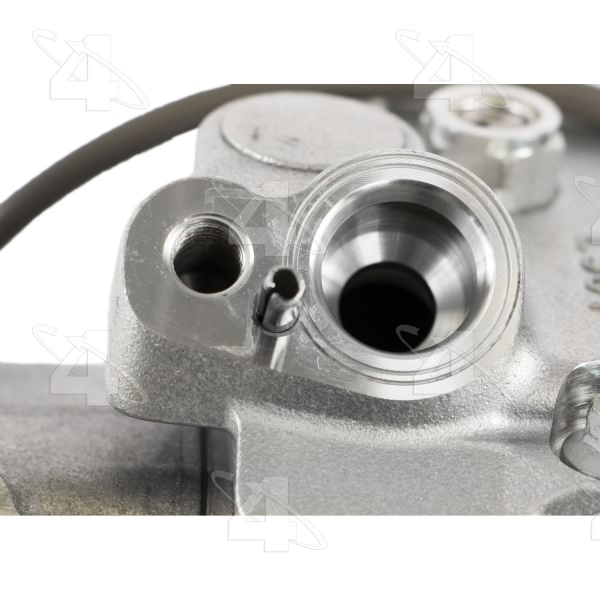

Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361620476 |
Year Make Model | Trim | Engine |
---|---|---|
2011 BMW 1 Series M | All Trims | All Engines |
2008-2013 BMW 135i | All Trims | All Engines |
2013 BMW 135is | All Trims | All Engines |
2007-2011 BMW 335i | All Trims | All Engines |
2012-2013 BMW 335i | All Trims | 6 Cyl 3.0L |
2009-2011 BMW 335i xDrive | All Trims | All Engines |
2012-2013 BMW 335i xDrive | All Trims | 6 Cyl 3.0L |
2011 BMW 335is | All Trims | All Engines |
2012-2013 BMW 335is | All Trims | 6 Cyl 3.0L |
2007-2008 BMW 335xi | All Trims | All Engines |
