Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157381 |

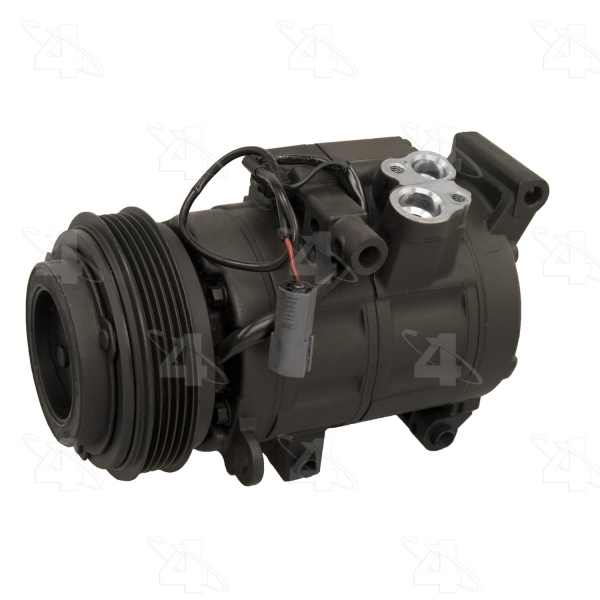

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.453125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HCC-HS18N |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.984375 |
Mount Distance MM | 75.692 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 113.030 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.453125 |
Pulley Outside Diameter | 4.453125 |
Pulley Ridge Diameter | 4.453125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361617599 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Mazda 3 | All Trims | 4 Cyl 2.0L |
2010-2013 Mazda 3 Sport | All Trims | 4 Cyl 2.0L |
