Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157369 |

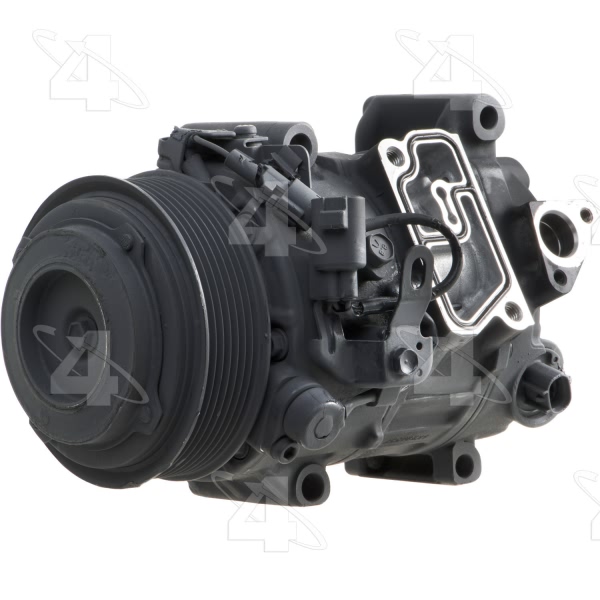

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.4375 |

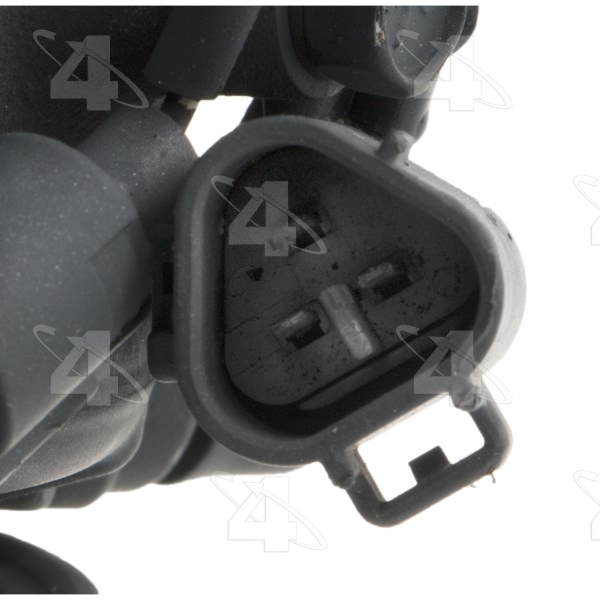

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TSB19C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.65625 |
Mount Distance MM | 41.910 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |

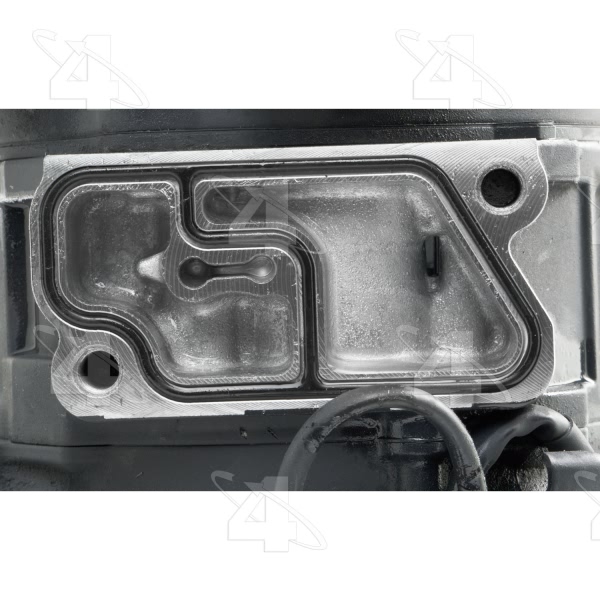

Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 112.700 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.4375 |
Pulley Outside Diameter | 4.4375 |
Pulley Ridge Diameter | 4.4375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361622258 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2018 Lexus ES350 | All Trims | All Engines |
2013-2015 Lexus GS350 | All Trims | All Engines |
2010-2015 Lexus RX350 | All Trims | All Engines |
2013-2017 Toyota Avalon | All Trims | 6 Cyl 3.5L |
2018 Toyota Avalon | All Trims | All Engines |
2018 Toyota Avalon | Limited | All Engines |
2018 Toyota Avalon | Touring | All Engines |
2018 Toyota Avalon | XLE | All Engines |
2018 Toyota Avalon | XLE Plus | All Engines |
2018 Toyota Avalon | XLE Premium | All Engines |
