Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157367 |

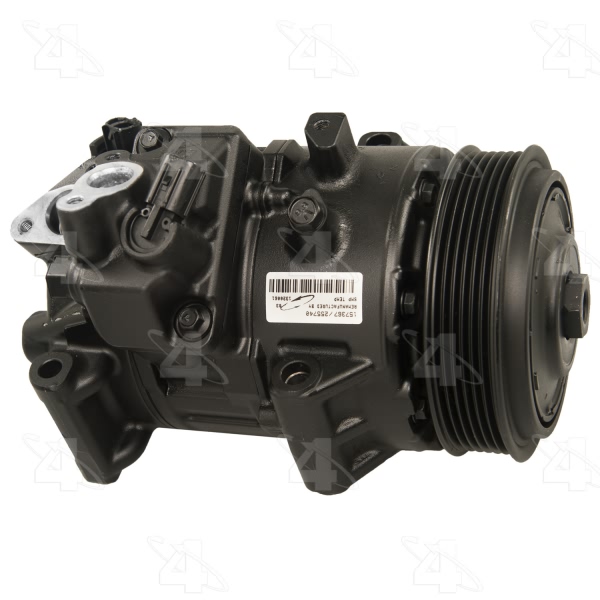

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TSE17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.625 |
ECV Harness Connector | Compressor SE10F, Vehicle SE10M |
Mount Distance MM | 41.148 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 111.125 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.375 |
Pulley Outside Diameter | 4.375 |
Pulley Ridge Diameter | 4.375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361622395 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2017 Toyota Camry | All Trims | 4 Cyl 2.5L |
2009-2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
