Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157365 |

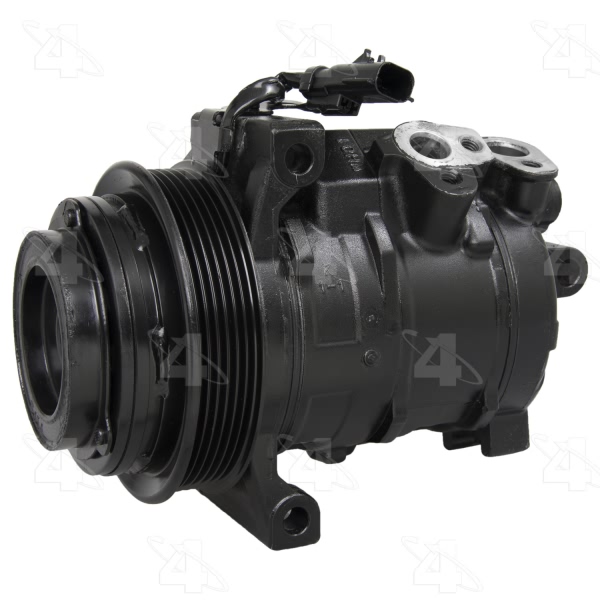

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SRE18C |
Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 0.609375 |
Mount Distance MM | 15.494 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring/ Gasket |
Terminal Type | Pin |
UPC | 096361622425 |
Year Make Model | Trim | Engine |
---|---|---|
2009-2010 Chrysler 300 | All Trims | 8 Cyl 5.7L |
2009-2010 Dodge Challenger | All Trims | 8 Cyl 5.7L |
2009-2010 Dodge Charger | All Trims | 8 Cyl 5.7L |
2010 Jeep Commander | All Trims | 8 Cyl 5.7L |
2009-2010 Jeep Grand Cherokee | All Trims | 8 Cyl 5.7L |
