Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157348 |

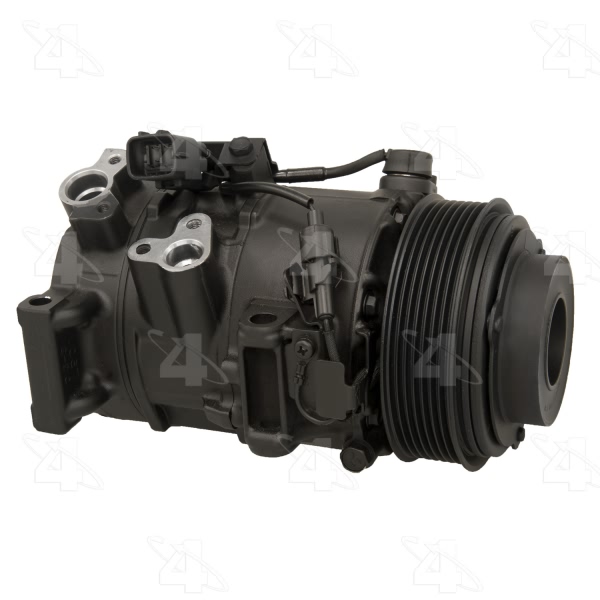

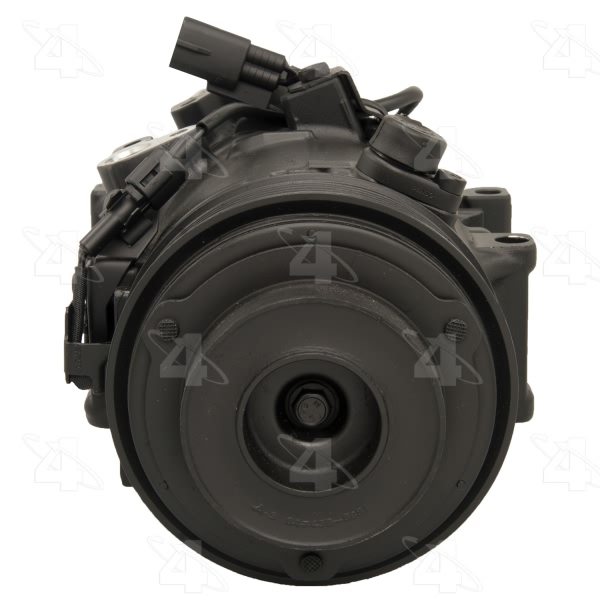

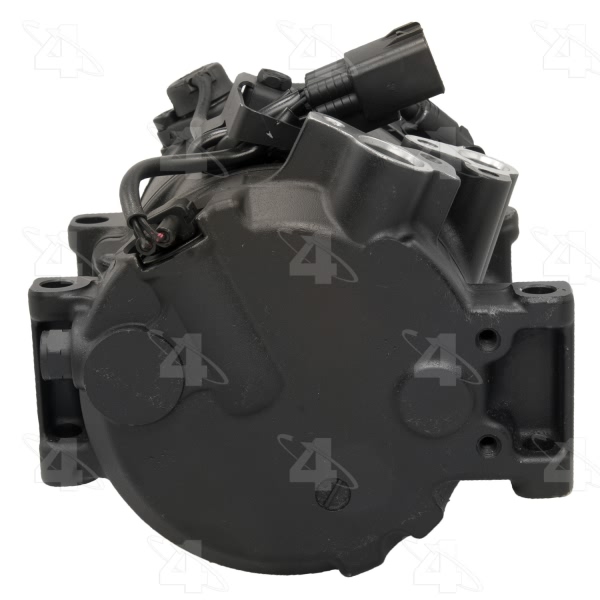

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SBU16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.59375 |
ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
Mount Distance MM | 40.386 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361617575 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Lexus GS300 | All Trims | All Engines |
2007-2011 Lexus GS350 | All Trims | All Engines |
2006-2010 Lexus IS250 | All Trims | All Engines |
2011-2012 Lexus IS250 | Base | All Engines |
2011-2012 Lexus IS250 | C | All Engines |
2013 Lexus IS250 | All Trims | All Engines |
2006-2013 Lexus IS350 | All Trims | All Engines |
