Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157335 |

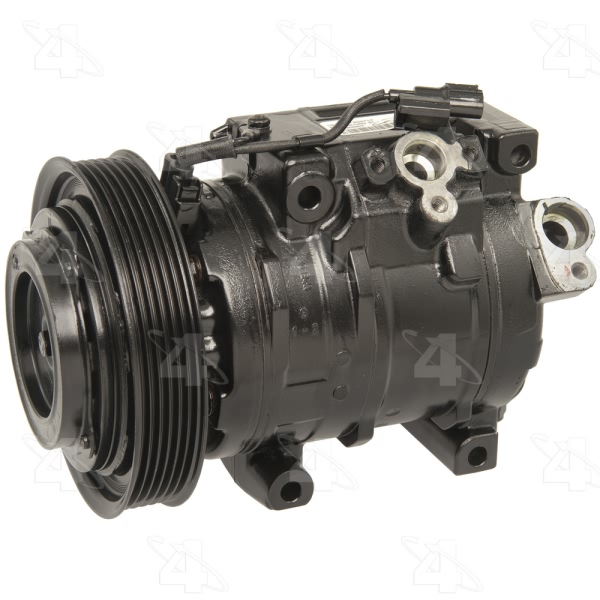

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10SR15C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.890625 |
Mount Distance MM | 48.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361616806 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2015 Acura RDX | All Trims | All Engines |
2009-2014 Acura TL | All Trims | All Engines |
2011 Acura TL | All Trims | 6 Cyl 3.5L |
2010-2014 Acura TSX | All Trims | 6 Cyl 3.5L |
2008-2012 Honda Accord | All Trims | 6 Cyl 3.5L |
2014 Honda Accord | All Trims | 4 Cyl 2.0L |
2010-2011 Honda Accord Crosstour | All Trims | All Engines |
2012 Honda Crosstour | All Trims | 6 Cyl 3.5L |
