Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157317 |

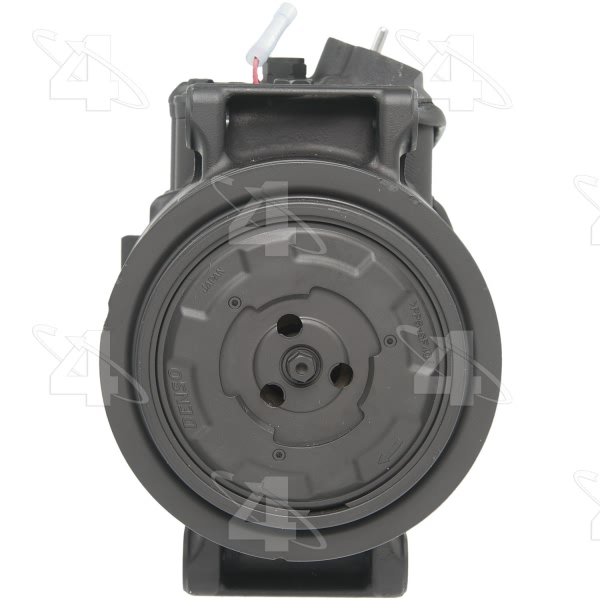

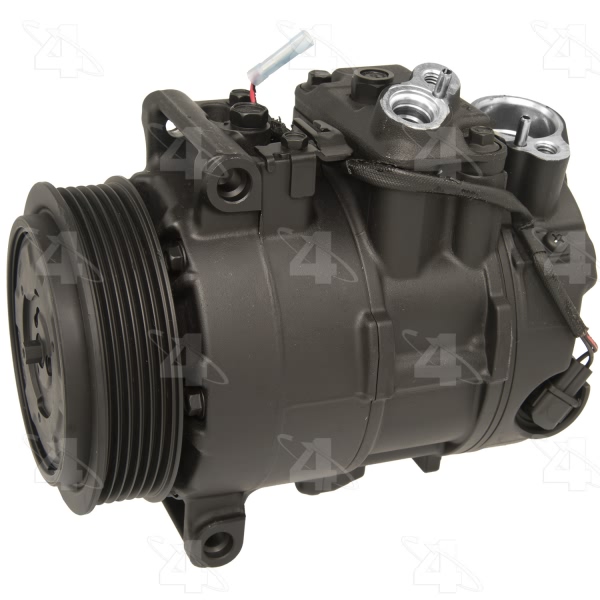

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.65625 |
ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
Mount Distance MM | 16.510 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361617285 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Mercedes-Benz E350 | All Trims | All Engines |
2006-2008 Mercedes-Benz SLK280 | All Trims | All Engines |
2009-2011 Mercedes-Benz SLK300 | All Trims | All Engines |
2005-2011 Mercedes-Benz SLK350 | All Trims | All Engines |
2013-2015 Mercedes-Benz SLK350 | All Trims | All Engines |
