Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157314 |

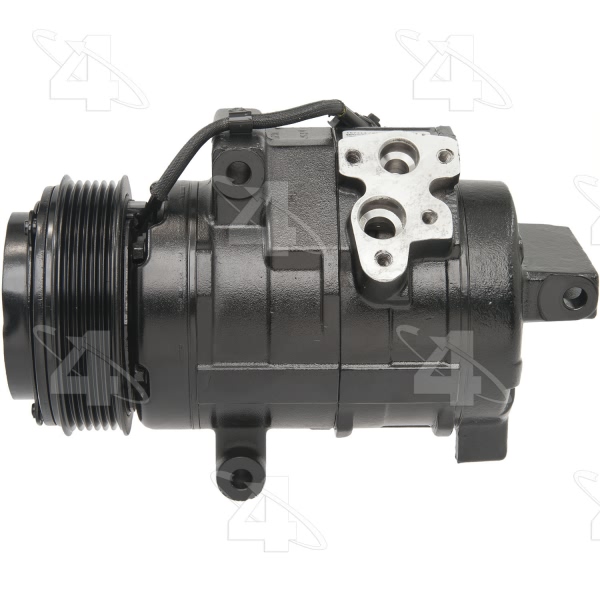

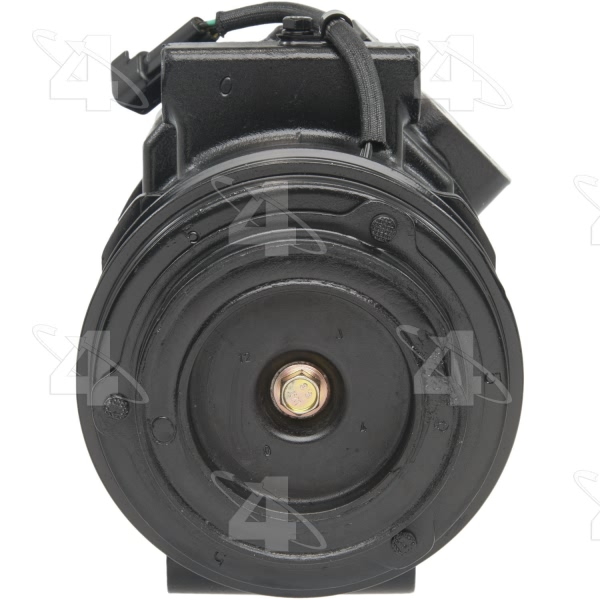

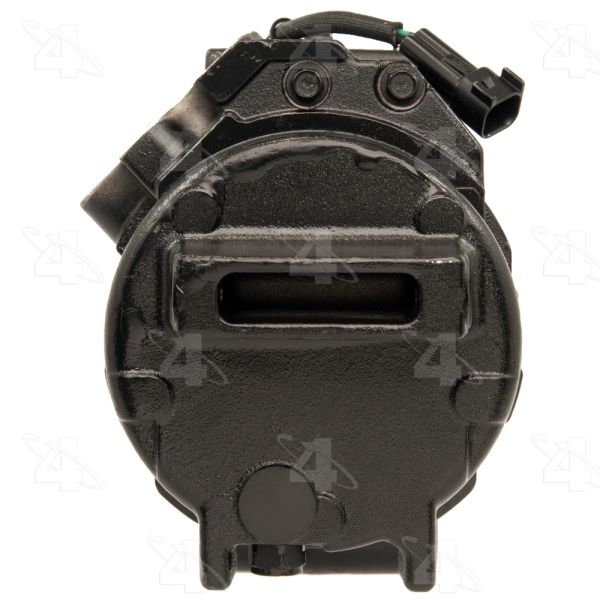

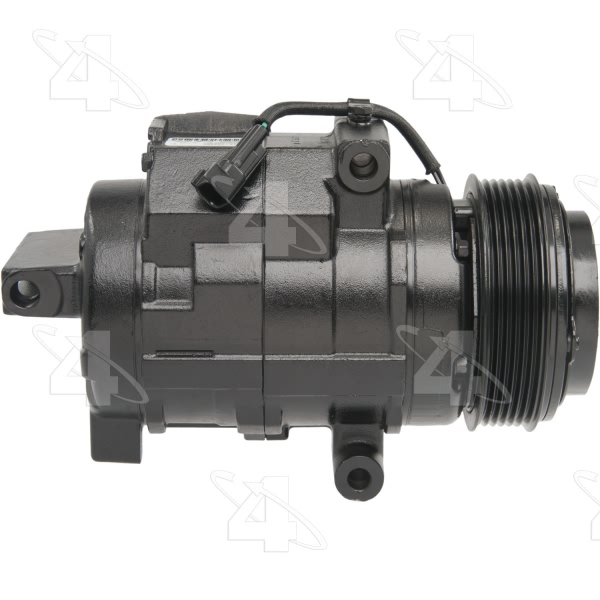

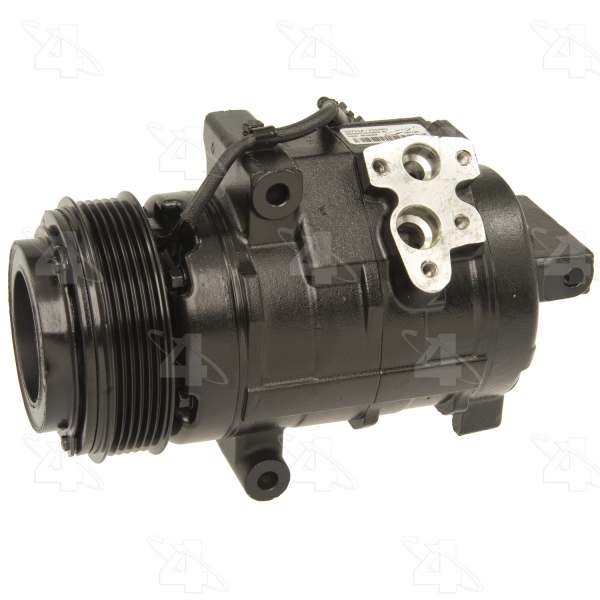

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S20C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.625 |
Mount Distance MM | 41.148 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May require use of OE connector |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361616752 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2011 Ford Edge | All Trims | All Engines |
2012-2014 Ford Edge | All Trims | 6 Cyl 3.5L |
2012-2014 Ford Edge | All Trims | 6 Cyl 3.7L |
2007-2015 Lincoln MKX | All Trims | All Engines |
