Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 1177333 |

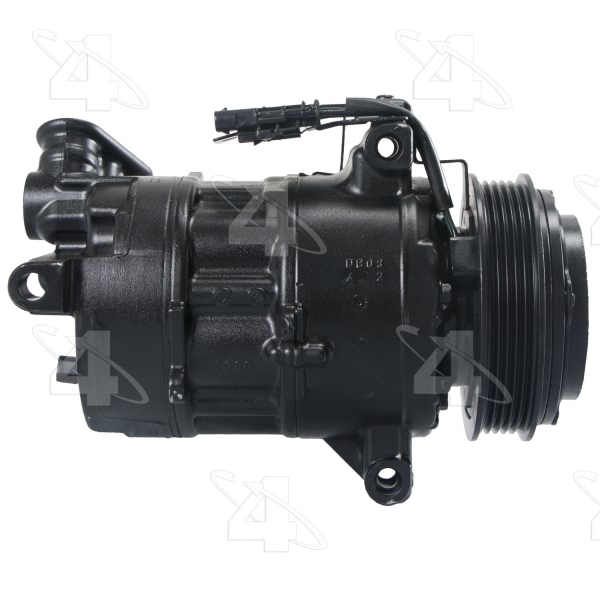

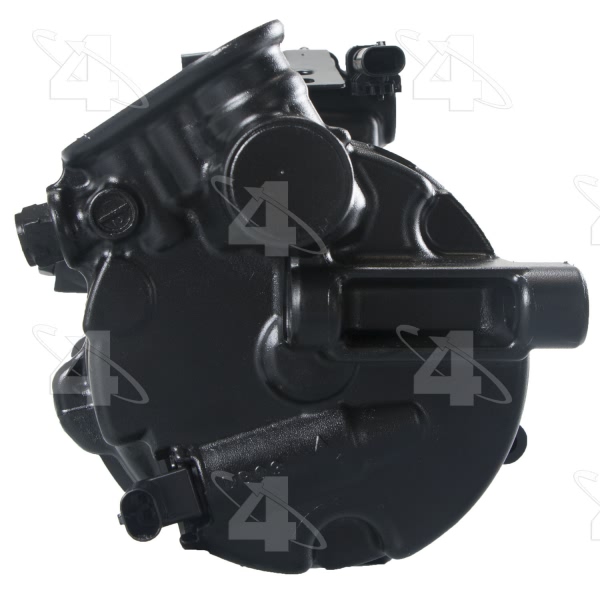

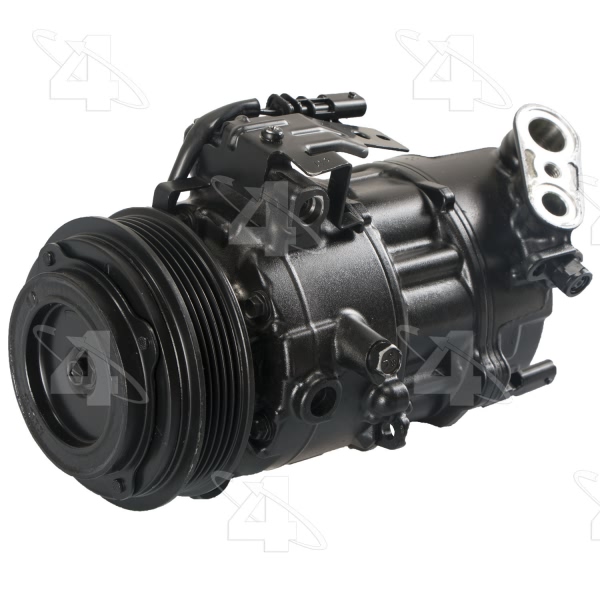

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
Compressor Type | 6SAS14C |
Distance From Clutch To Mounting Flange | 1.250 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |

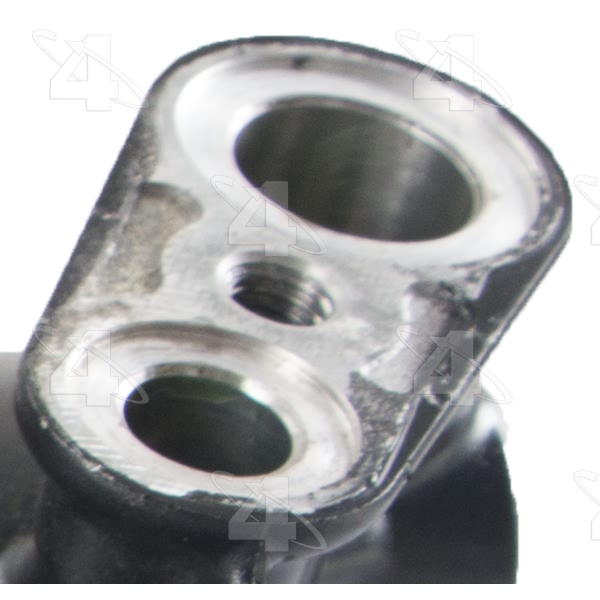

O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

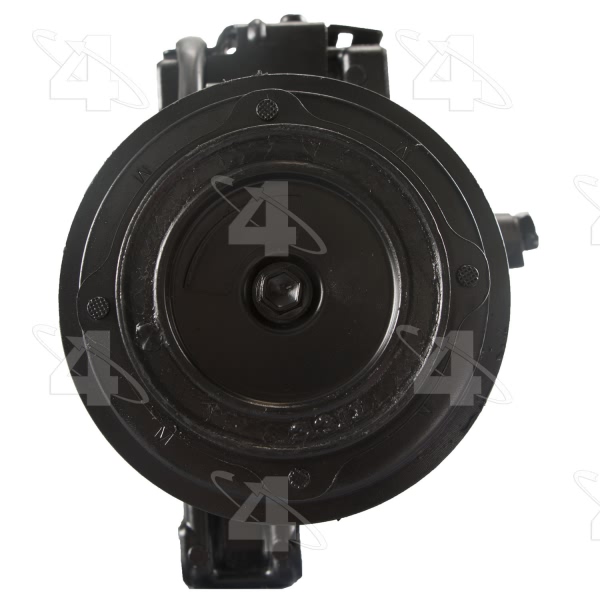

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R-134a or R1234yf |

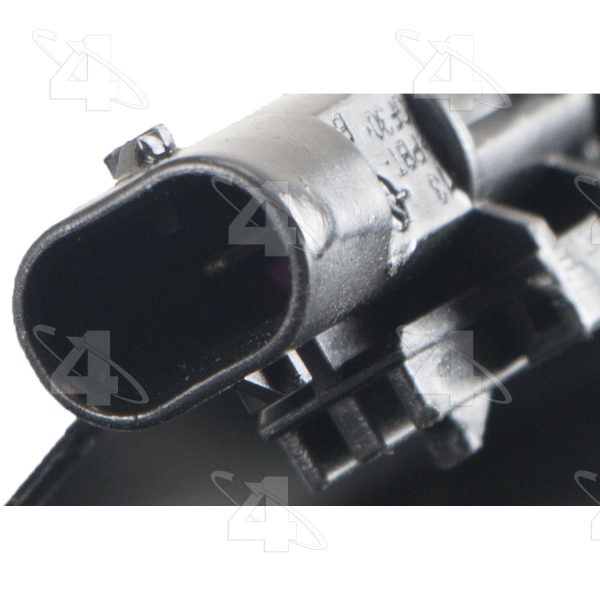

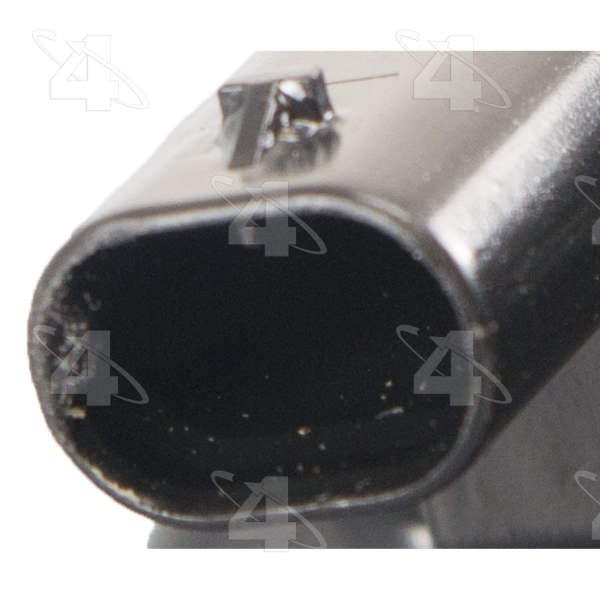

Terminal Type | Pin |
UPC | 096361069534 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Cadillac ATS | All Trims | 4 Cyl 2.5L |
2013-2017 Cadillac ATS | All Trims | 4 Cyl 2.0L |
2014-2018 Cadillac CTS | All Trims | 4 Cyl 2.0L |
2016-2019 Chevrolet Camaro | All Trims | 4 Cyl 2.0L |
