Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 1177323 |

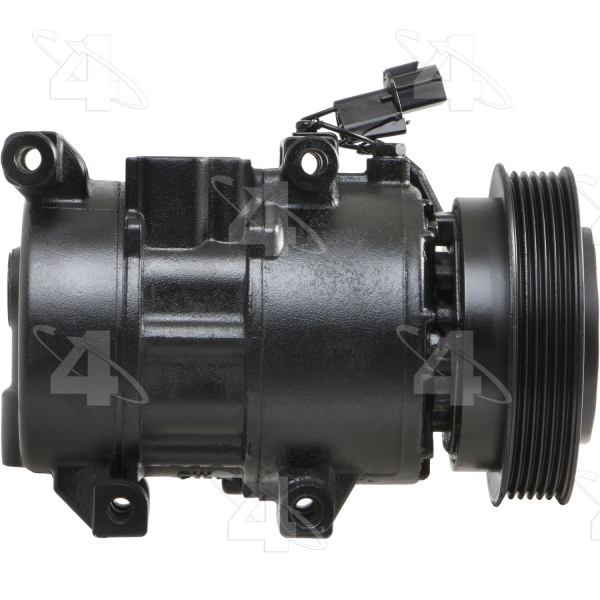

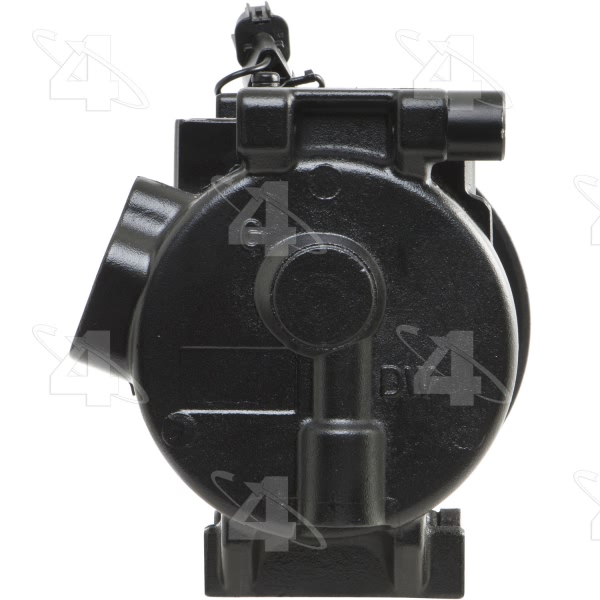

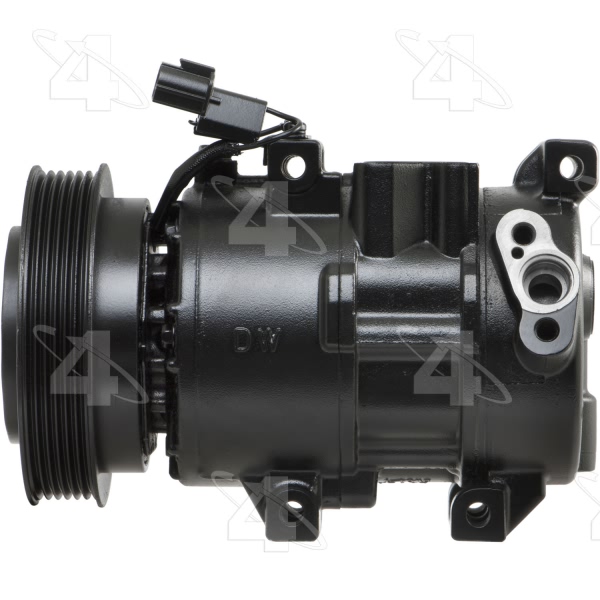

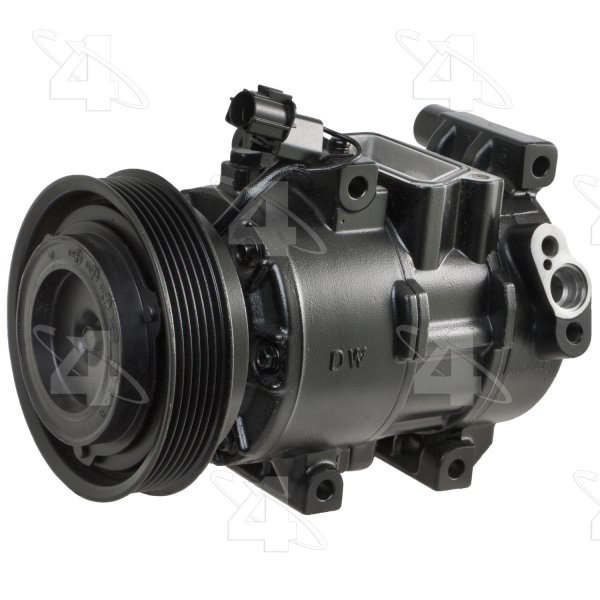

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.890625 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HCC-DV13 |
Distance From Clutch To Mounting Flange | 2.5625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

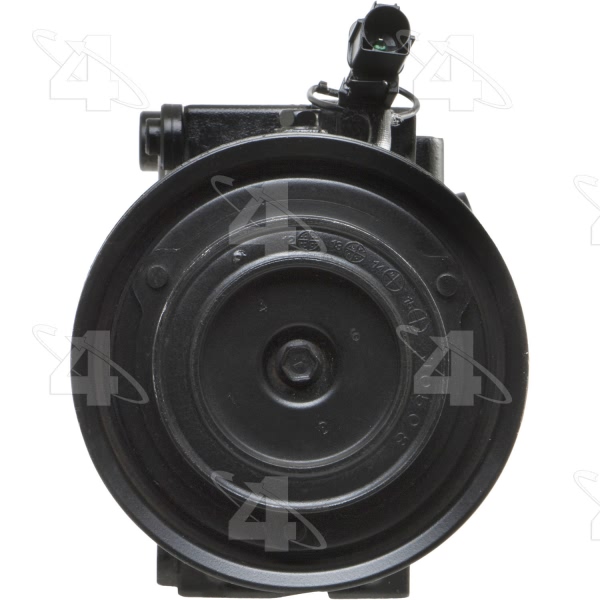

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.890625 |
Pulley Outside Diameter | 4.890625 |
Pulley Ridge Diameter | 4.890625 |
Refrigerant Type | R134a |

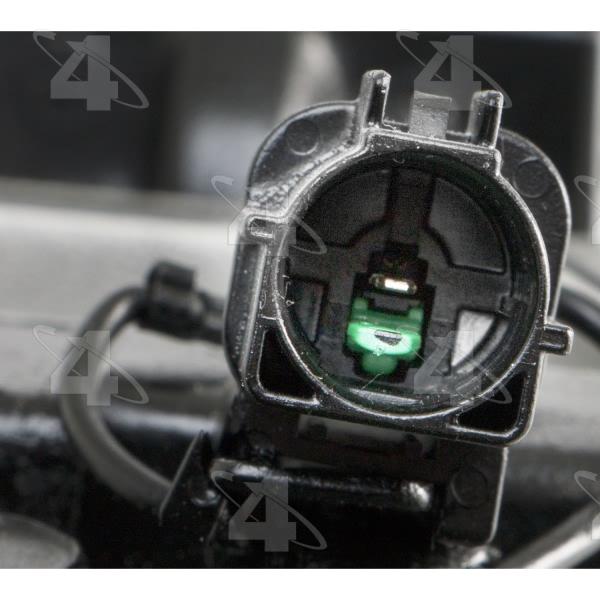

Terminal Type | Pin |
UPC | 096361629356 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2014 Hyundai Accent | All Trims | All Engines |
2012-2014 Hyundai Veloster | All Trims | All Engines |
