Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 1177317 |

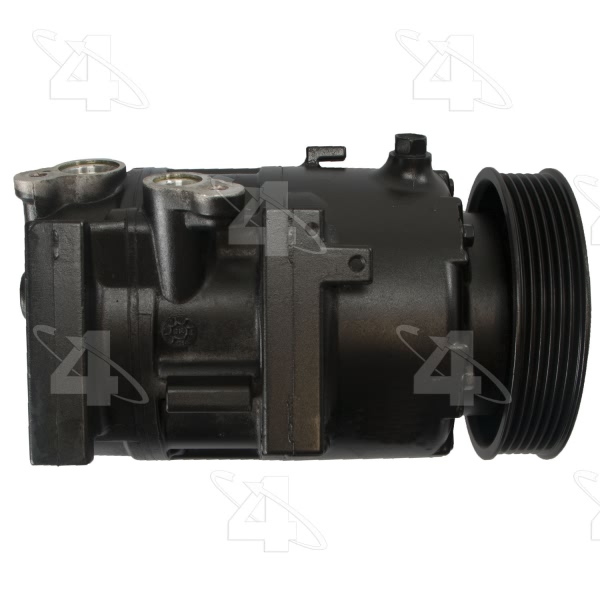

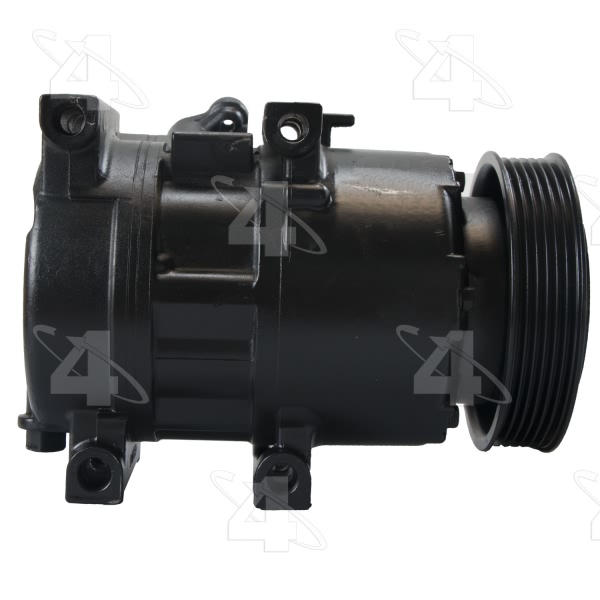

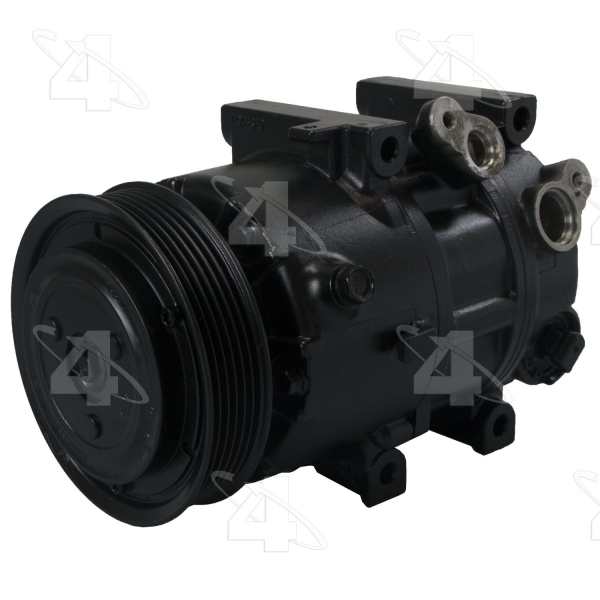

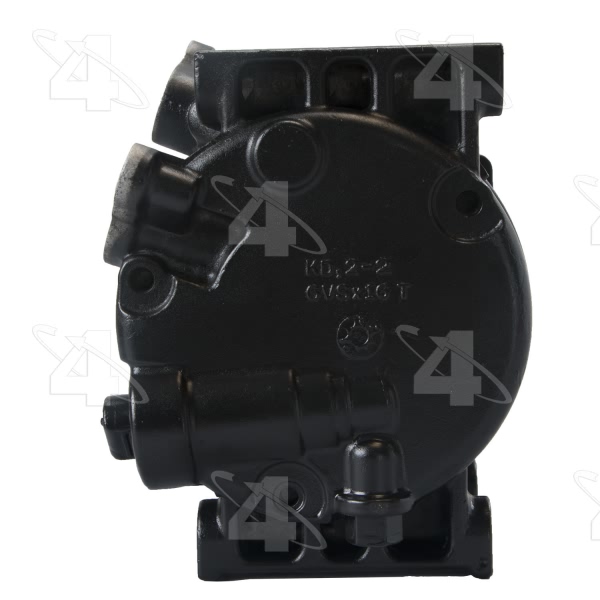

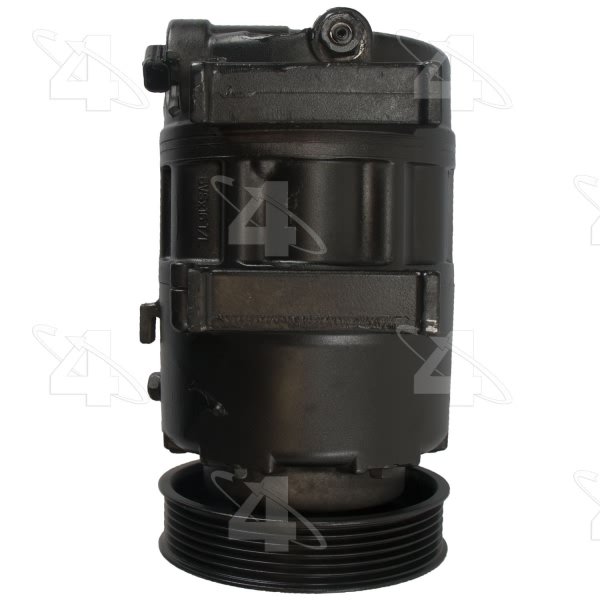

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |

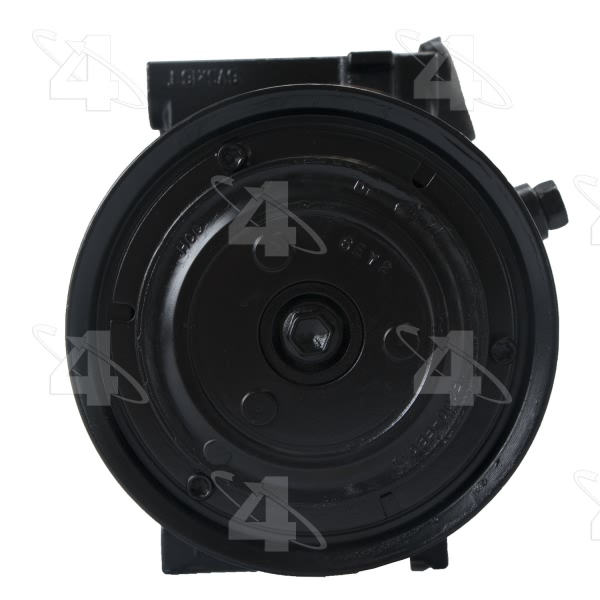

Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | VS16E |

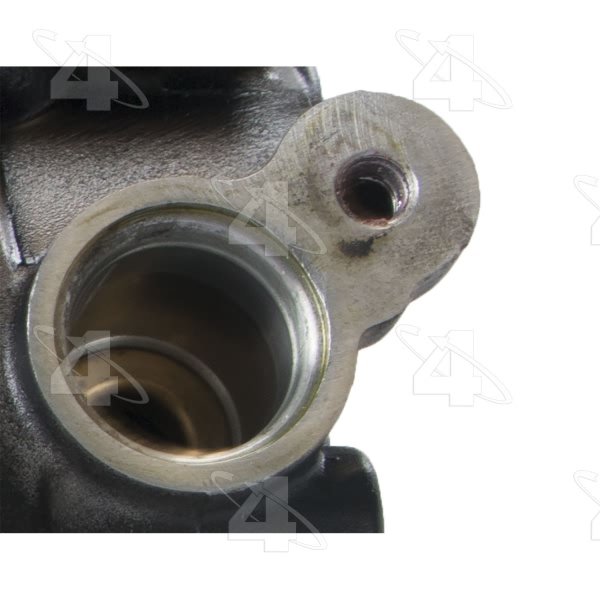

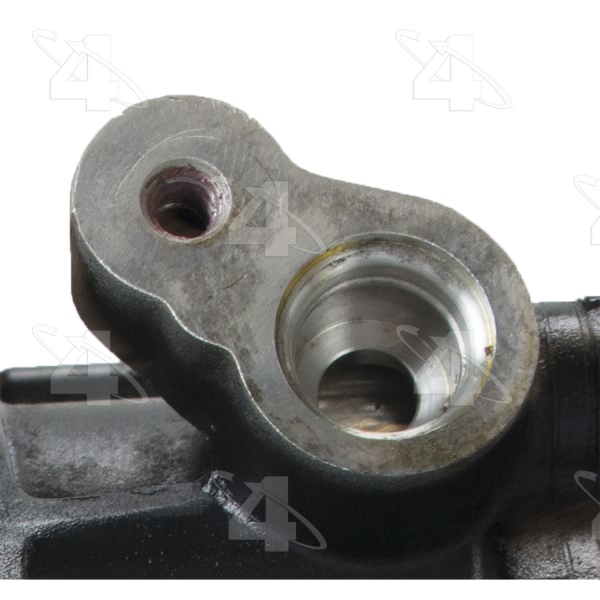

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.84375 |

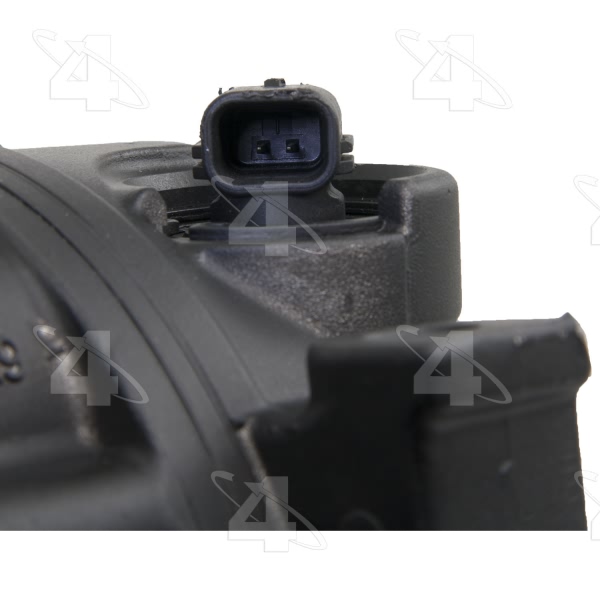

ECV Harness Connector | Compressor SE03F / SE03R-F, Vehicle SE03M / SE03R-M |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May require use of OE connector |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.046 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361623231 |
Year Make Model | Trim | Engine |
---|---|---|
2011 Hyundai Sonata | All Trims | 4 Cyl 2.0L |
2011-2014 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2011 Kia Optima | All Trims | 4 Cyl 2.0L |
2011 Kia Optima | All Trims | 4 Cyl 2.4L |
