Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 157543 |

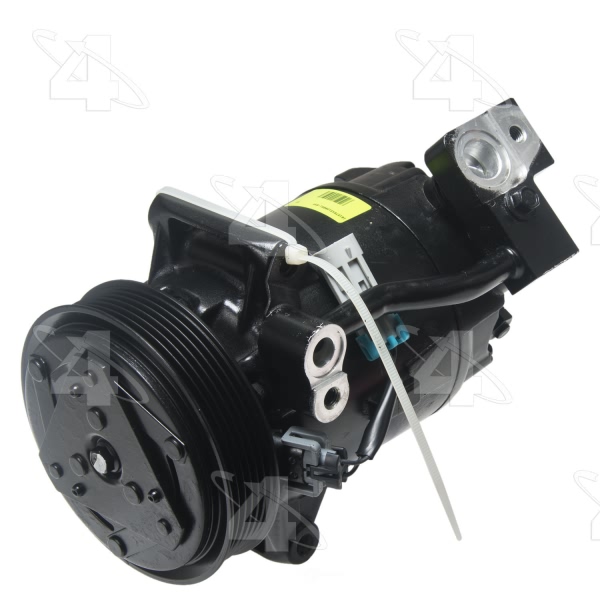

Part Description | Reman GM CVC Compressor w/ Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

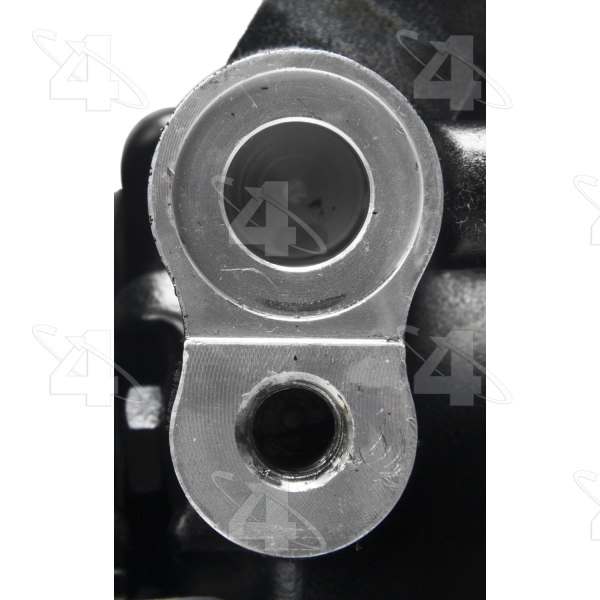

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |
Mount Distance MM | 30.480 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |

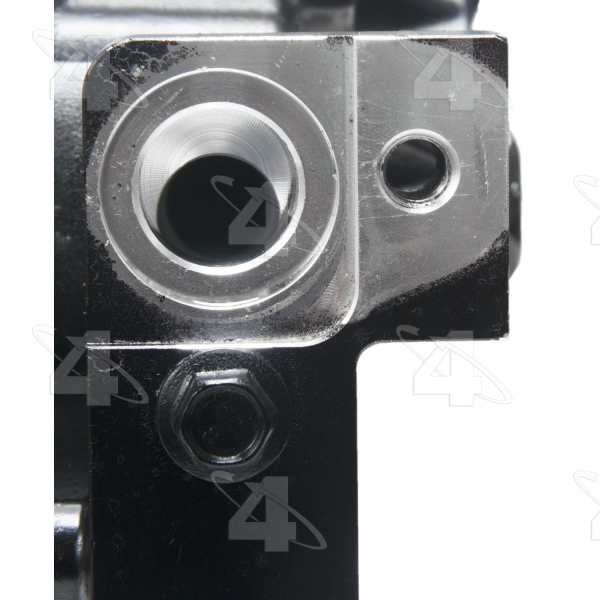

Suction Port Type | Sealing Washer |

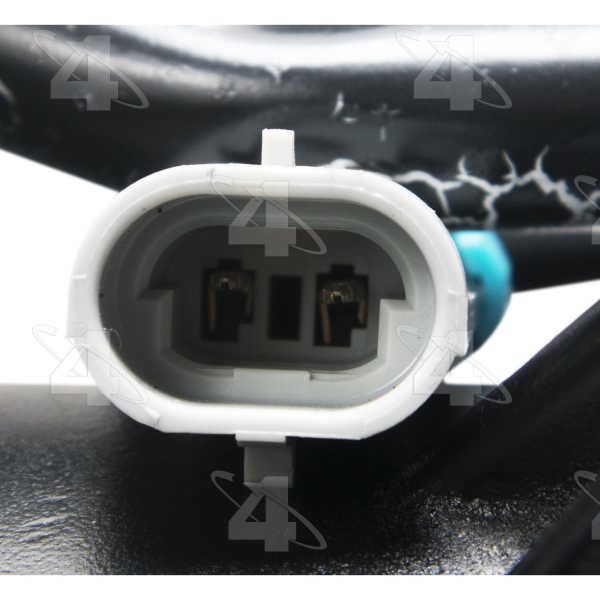

Terminal Type | Butt Connector |
UPC | 096361617544 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Saturn L100 | All Trims | All Engines |
2001-2003 Saturn L200 | All Trims | All Engines |
2004 Saturn L300 | All Trims | 4 Cyl 2.2L |
2000 Saturn LS | All Trims | All Engines |
2000 Saturn LS1 | All Trims | All Engines |
2000 Saturn LW1 | All Trims | All Engines |
2001-2003 Saturn LW200 | All Trims | All Engines |
