Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36916 |

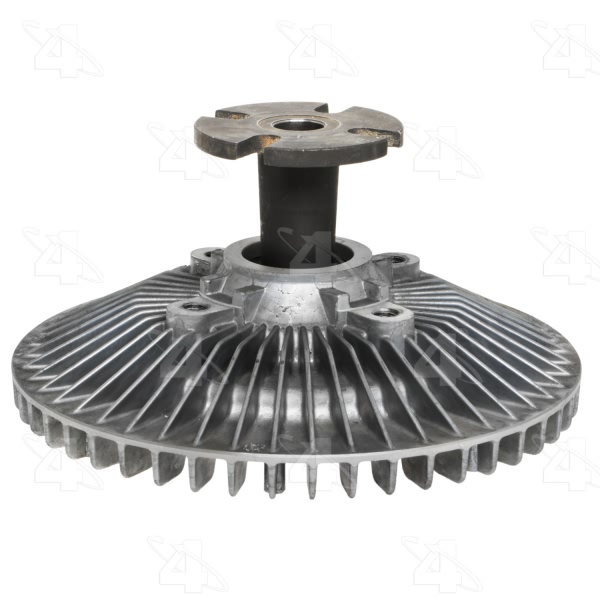

Part Description | Non Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.03 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.6 |
Mount Dia. MM | 66 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.9 |
Overall Height IN | 3.59 or 3.6 |
Overall Height MM | 91.4 |
Performance Rated | Yes |
Pilot Depth IN | 1.03 |
Pilot Depth MM | 26.2 |
Pilot Dia. IN | 0.63 |
Rotation | STD & REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361369160 |
Use Type | Non-Thermal |
Year Make Model | Trim | Engine |
---|---|---|
1973-1979 Buick Century | All Trims | 8 Cyl 5.7L |
1974 Buick Century | All Trims | 8 Cyl 7.5L |
1975-1981 Buick Century | All Trims | 6 Cyl 3.8L |
1977-1981 Buick Century | All Trims | 8 Cyl 5.0L |
1978-1979 Buick Century | All Trims | 6 Cyl 3.2L |
1980 Buick Century | All Trims | 8 Cyl 4.9L |
1981 Buick Century | All Trims | 8 Cyl 4.3L |
1981 Buick Century | All Trims | 8 Cyl 4.4L |
1981 Buick Century | All Trims | 8 Cyl 5.7L |
1984-1985 Buick Century | All Trims | 6 Cyl 3.8L |
