Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 88969 |

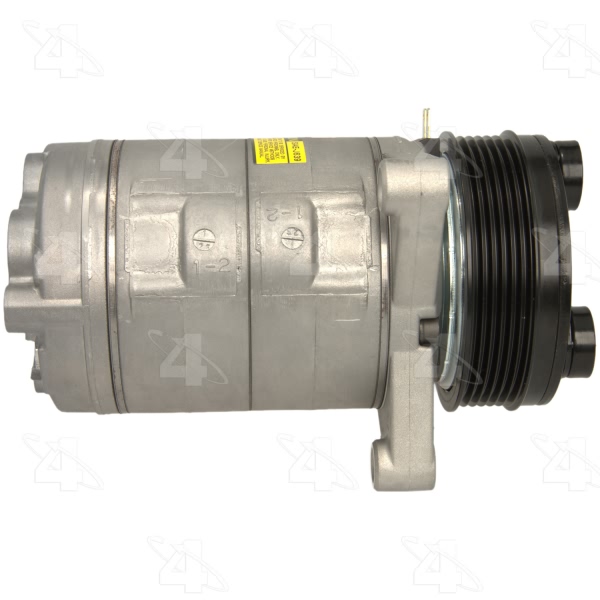

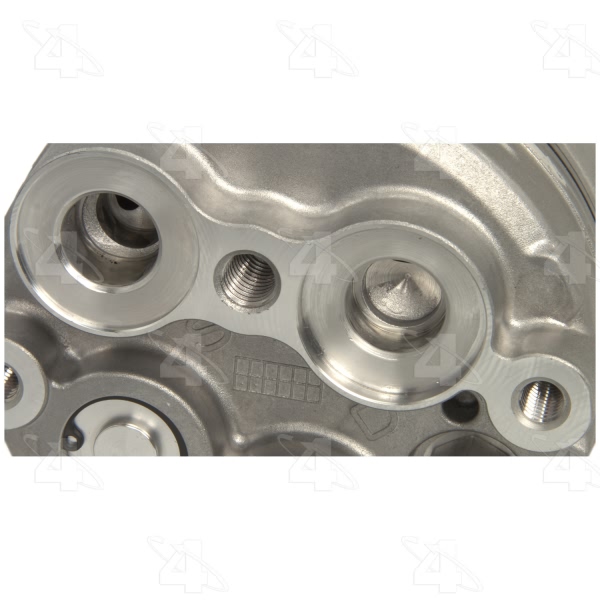

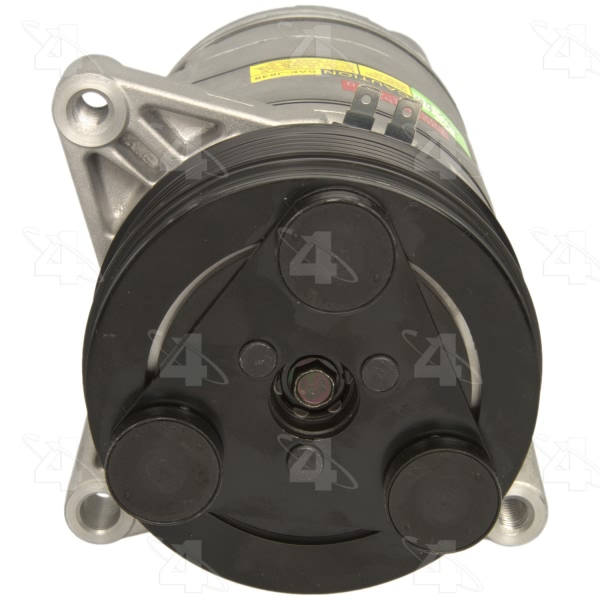

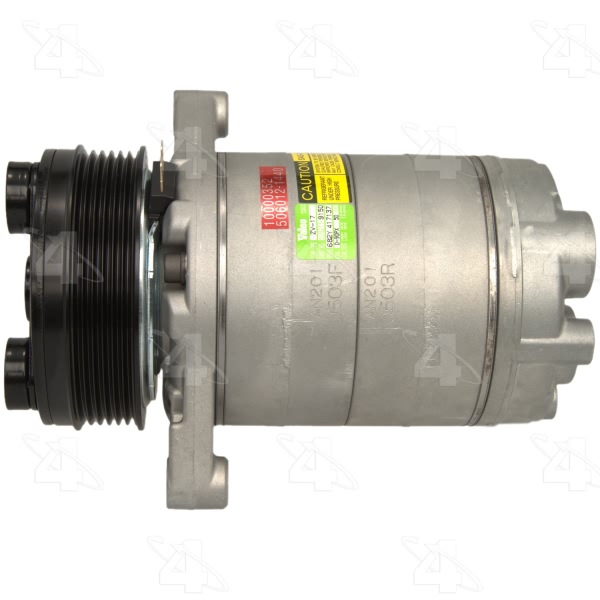

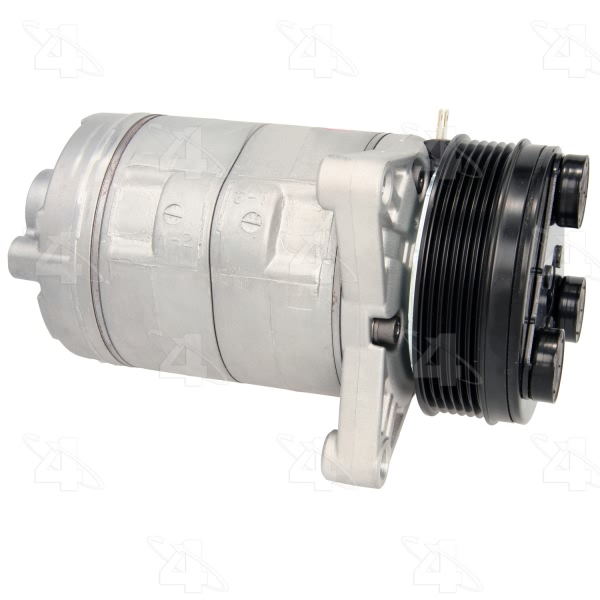

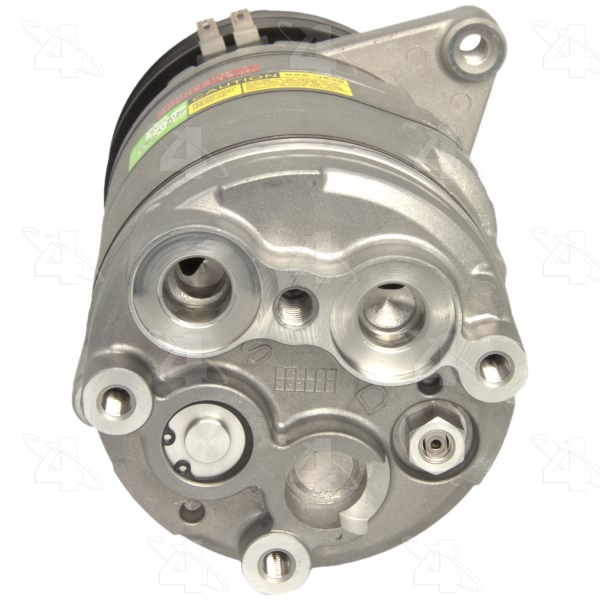

Part Description | New GM HR6 Compressor w/ Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 10 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HR6 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Type VII Rear Bracket |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | 24357 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24358 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

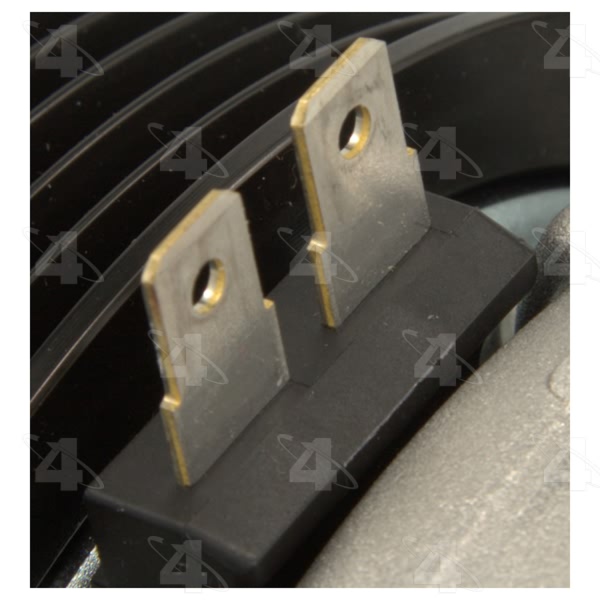

Terminal Type | Spade |
UPC | 096361889699 |
Year Make Model | Trim | Engine |
---|---|---|
1990 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1992-1994 Chevrolet G10 | All Trims | All Engines |
1992-1993 Chevrolet G20 | All Trims | 6 Cyl 4.3L |
1992-1993 Chevrolet G20 | All Trims | 8 Cyl 5.0L |
1992-1993 Chevrolet G20 | All Trims | 8 Cyl 5.7L |
1994 Chevrolet G20 | All Trims | All Engines |
1992-1993 Chevrolet G30 | All Trims | 6 Cyl 4.3L |
1992-1993 Chevrolet G30 | All Trims | 8 Cyl 5.7L |
1992-1993 Chevrolet G30 | All Trims | 8 Cyl 7.4L |
1994 Chevrolet G30 | All Trims | All Engines |
