Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 88956 |

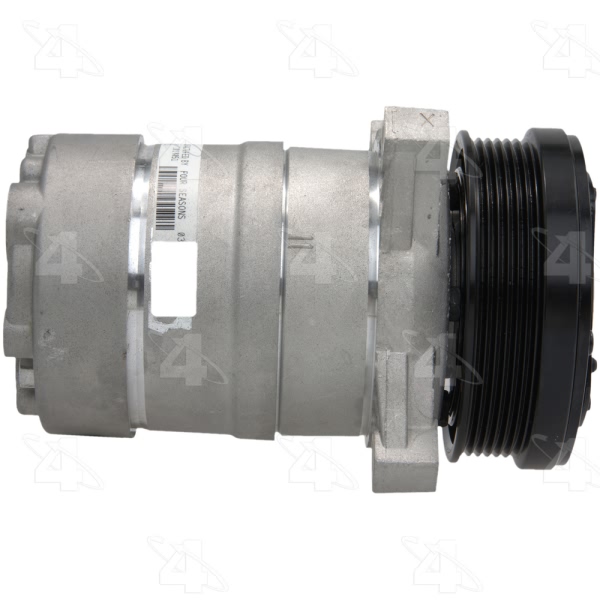

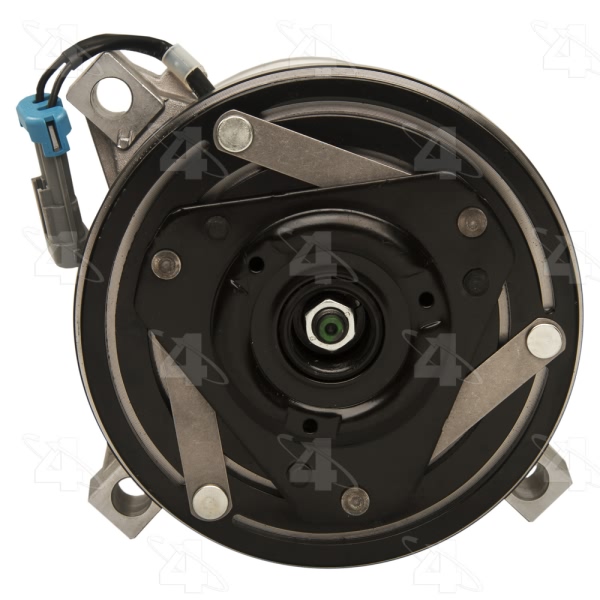

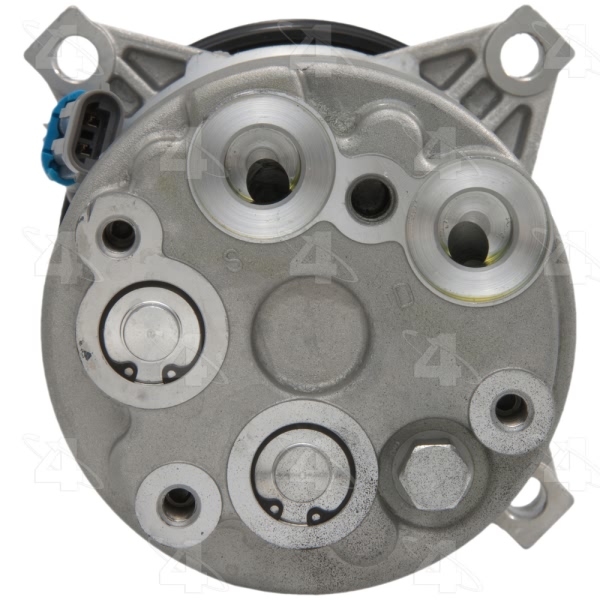

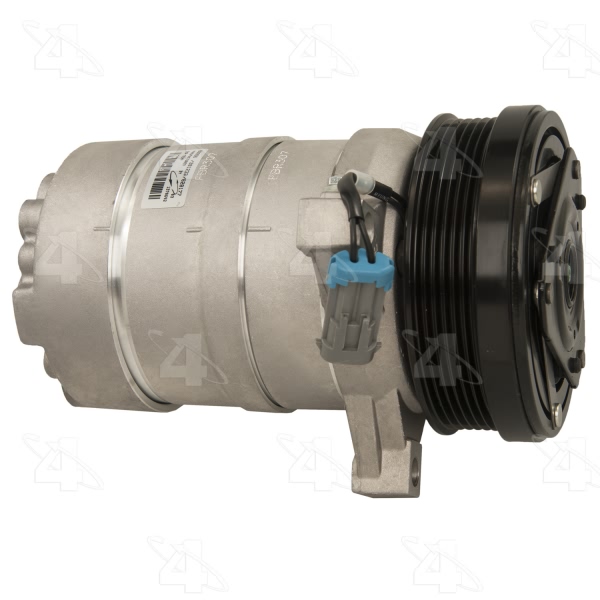

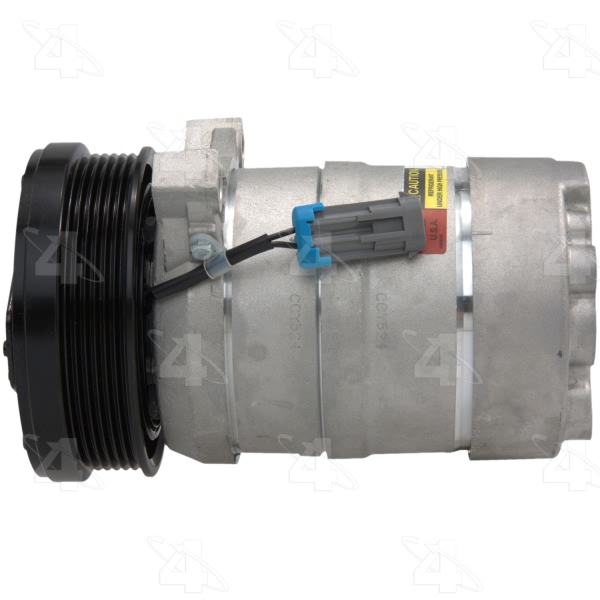

Part Description | New GM HD6 Compressor w/ Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HD6 |

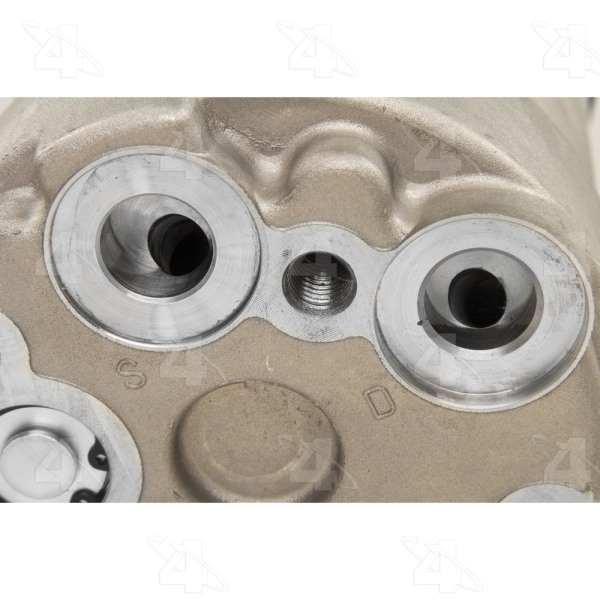

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Type XII All Ears no Threads |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

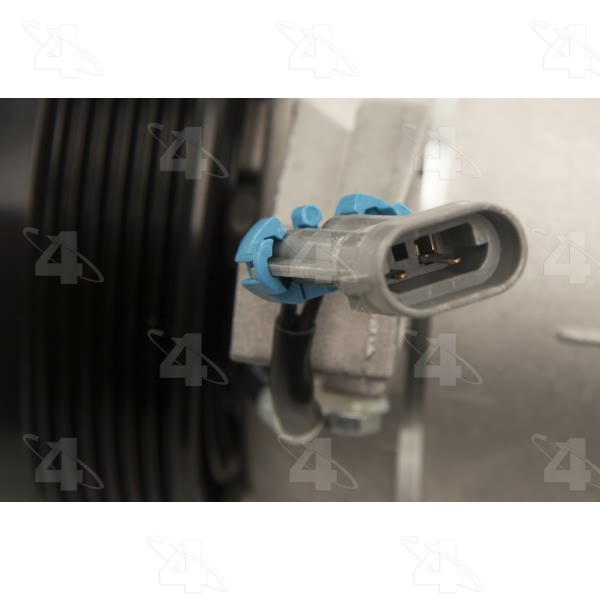

Terminal Type | 8mm Pin Connector |
UPC | 096361889569 |
Year Make Model | Trim | Engine |
---|---|---|
1998-1999 Acura SLX | All Trims | All Engines |
1993 Cadillac Allante | All Trims | All Engines |
1985 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.1L |
1994-1996 Cadillac DeVille | All Trims | 8 Cyl 4.6L |
1996-1999 Cadillac DeVille | All Trims | All Engines |
1993-1997 Cadillac Eldorado | All Trims | 8 Cyl 4.6L |
1998-2002 Cadillac Eldorado | All Trims | All Engines |
1985 Cadillac Fleetwood | 75 | 8 Cyl 4.1L |
1985 Cadillac Fleetwood | 75 Formal | 8 Cyl 4.1L |
1985 Cadillac Fleetwood | Base | 8 Cyl 4.1L |
