Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57935 |

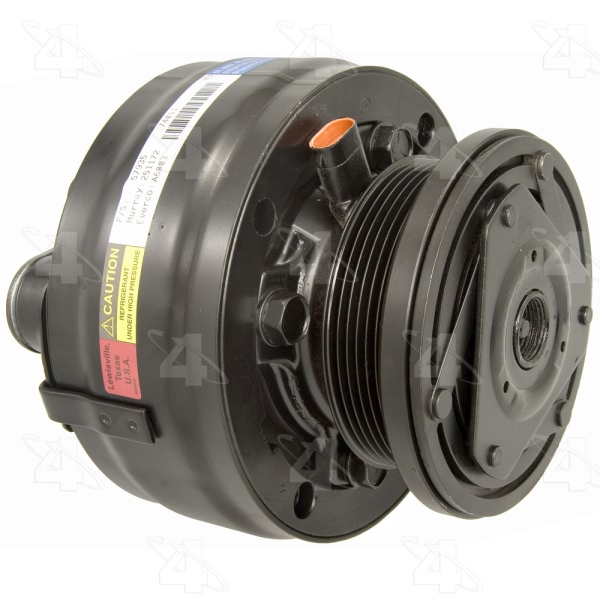

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Distance From Clutch To Mounting Flange | 0.859375 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |

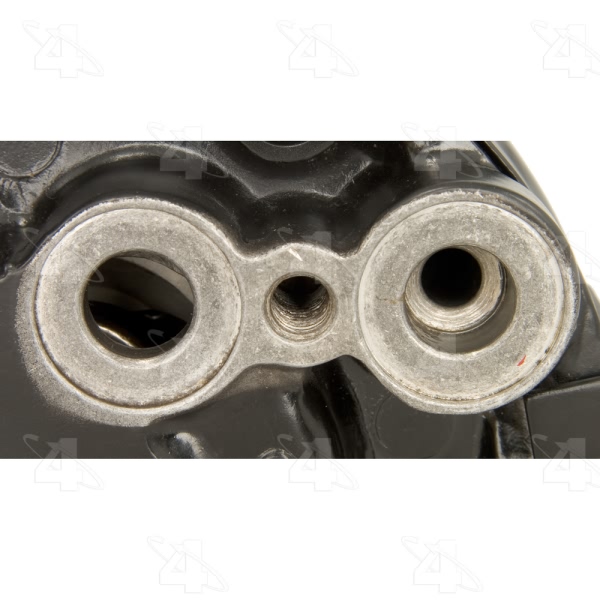

Suc Prt Typ Note | w/ 5/8" x 5/8" Ports |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

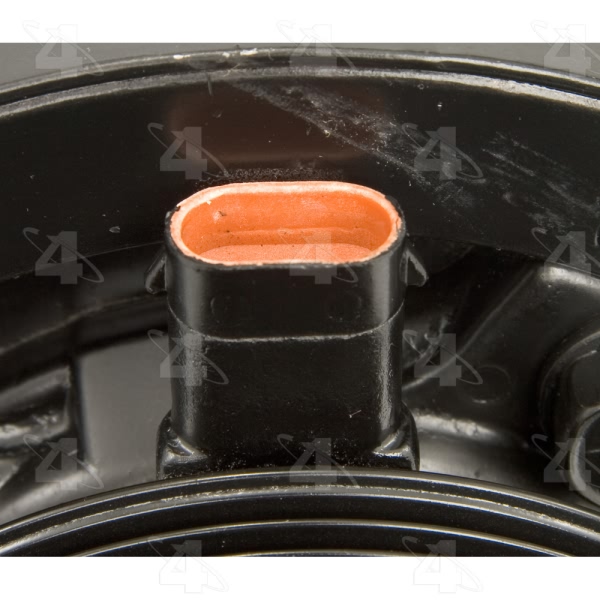

Terminal Type | 8mm Pin Connector |
UPC | 096361579354 |
Year Make Model | Trim | Engine |
---|---|---|
1993 Buick Commercial Chassis | All Trims | 8 Cyl 5.7L |
1993 Buick Roadmaster | All Trims | 8 Cyl 5.7L |
1993 Cadillac Commercial Chassis | Brougham | 8 Cyl 5.7L |
1993 Cadillac Fleetwood | Brougham | All Engines |
1993 Chevrolet Caprice | All Trims | All Engines |
1993 Chevrolet Commercial Chassis | All Trims | All Engines |
1993 Chevrolet S10 | All Trims | 6 Cyl 4.3L |
1993 Chevrolet S10 Blazer | All Trims | All Engines |
1993 GMC Jimmy | All Trims | All Engines |
1993 GMC Sonoma | All Trims | 6 Cyl 4.3L |
