Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57526 |

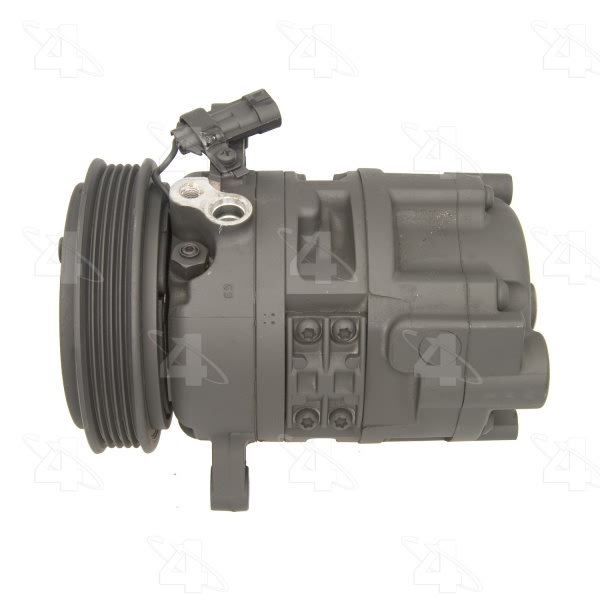

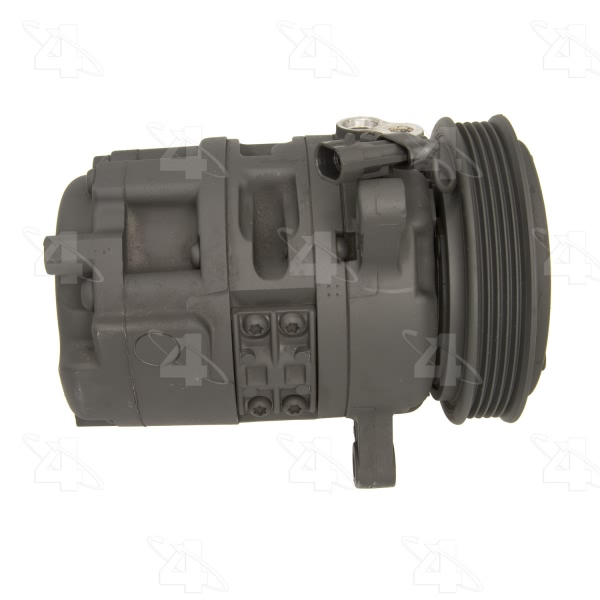

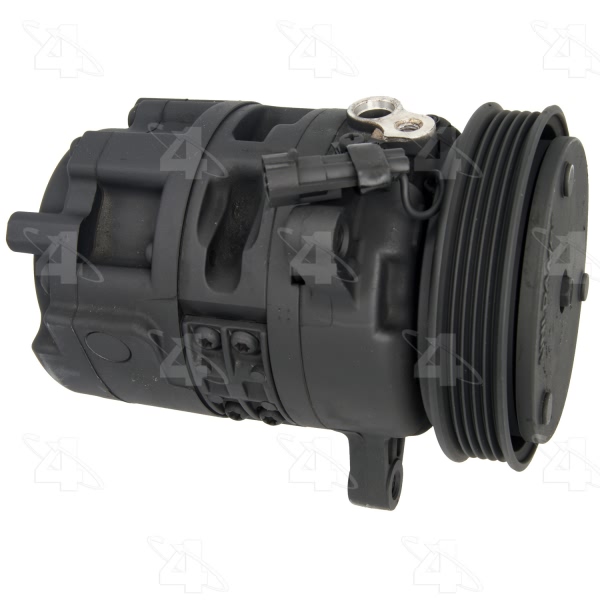

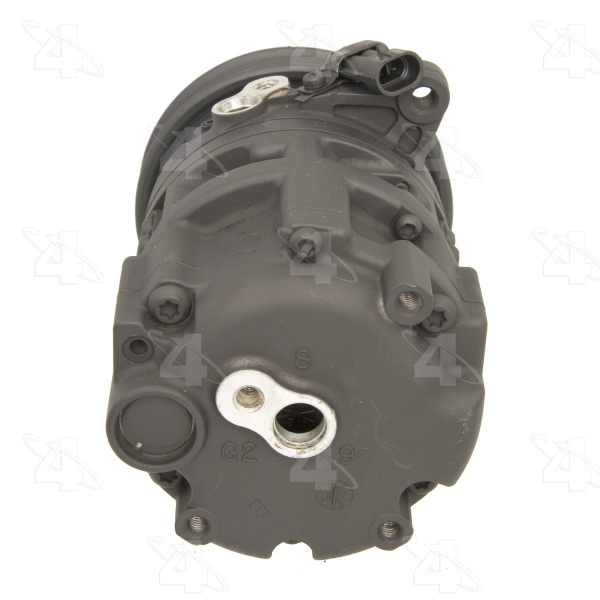

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | DCV11A |

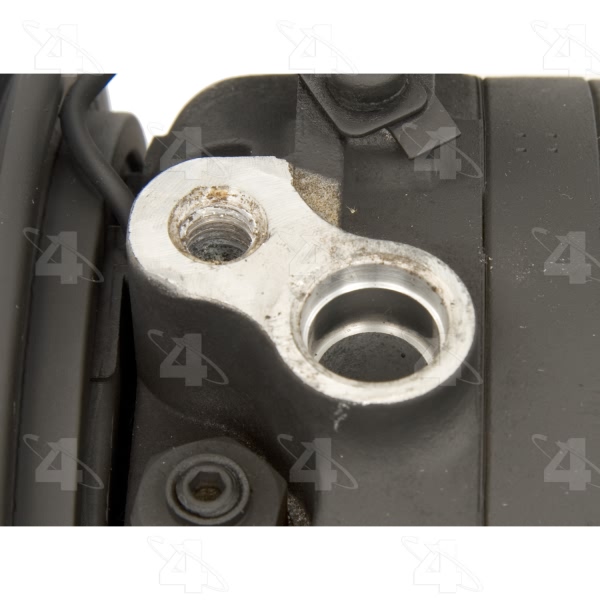

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.234375 |
Mount Distance MM | 31.242 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24680] / O-Ring Assortment |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24678] / Green O-Ring |
O-Ring B Quantity | 1 |

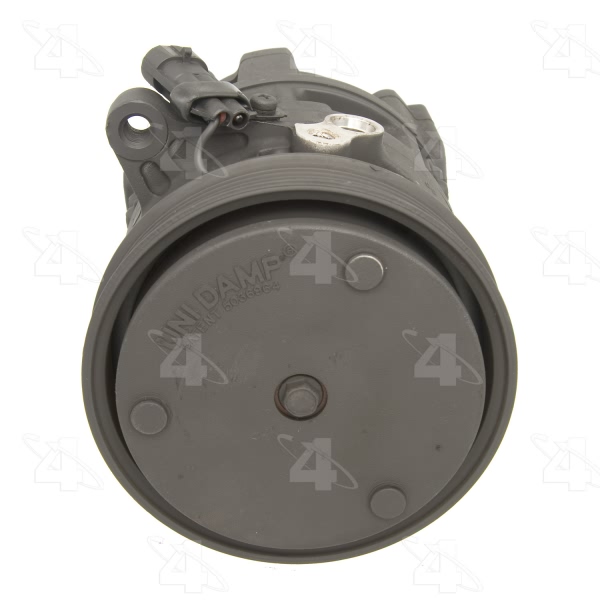

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |

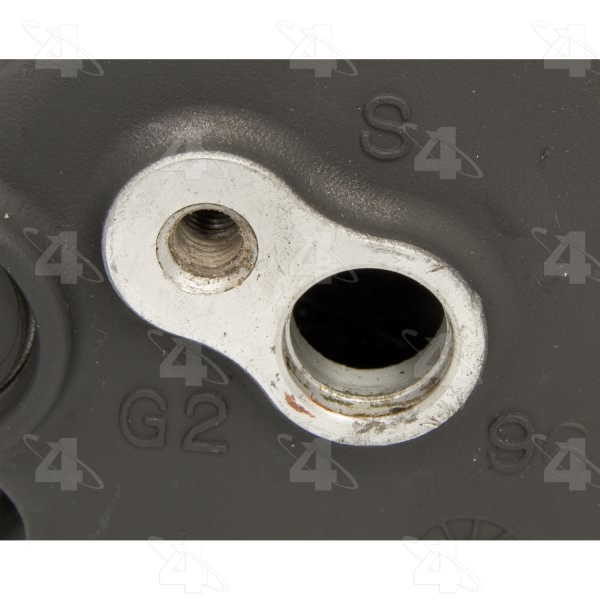

Suc Prt Typ Note | Pad Mount Stepped Port in Middle |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |

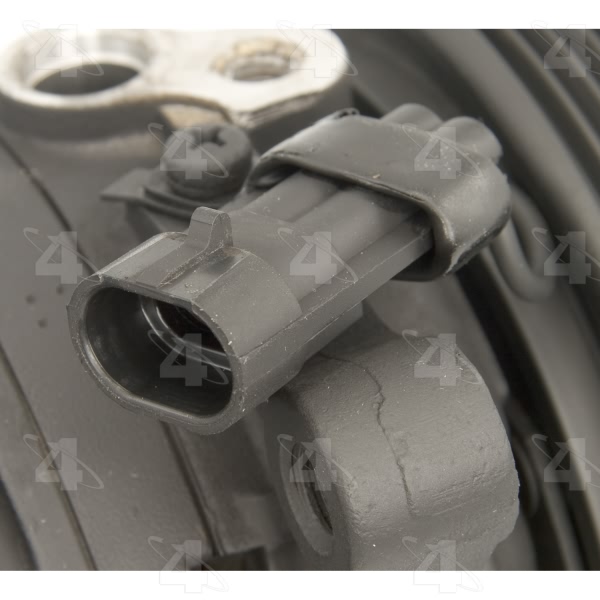

Terminal Type | Bullet |
UPC | 096361575264 |
Year Make Model | Trim | Engine |
---|---|---|
1997 Saturn SC1 | All Trims | All Engines |
1997 Saturn SC2 | All Trims | All Engines |
1997 Saturn SL | All Trims | All Engines |
1997 Saturn SL1 | All Trims | All Engines |
1997 Saturn SL2 | All Trims | All Engines |
1997 Saturn SW1 | All Trims | All Engines |
1997 Saturn SW2 | All Trims | All Engines |
