Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57521 |

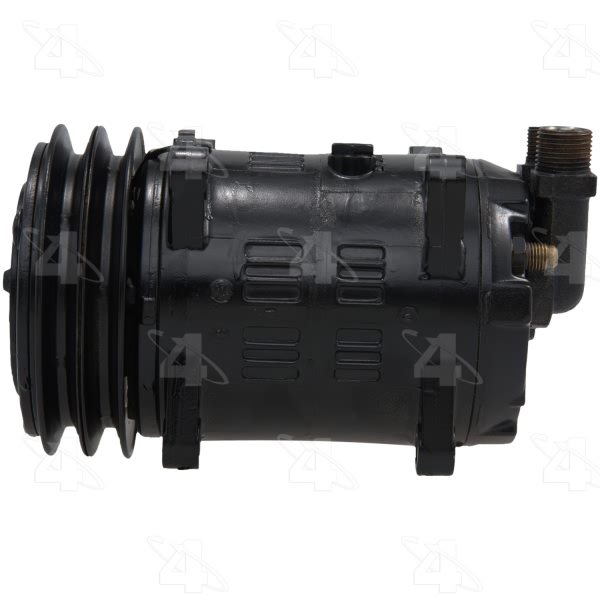

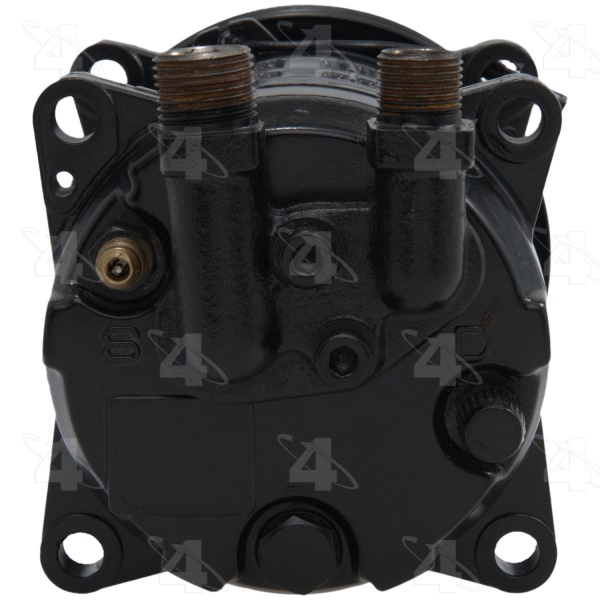

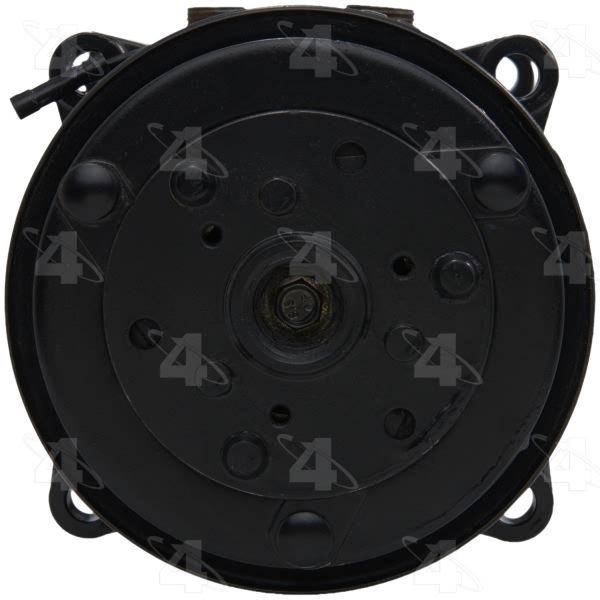

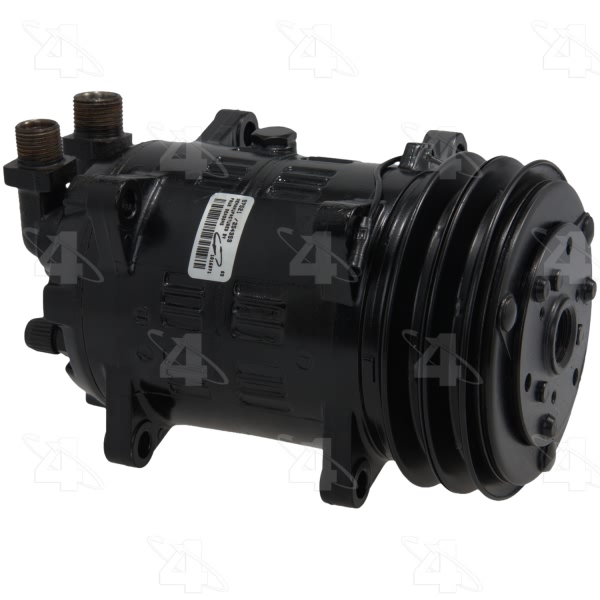

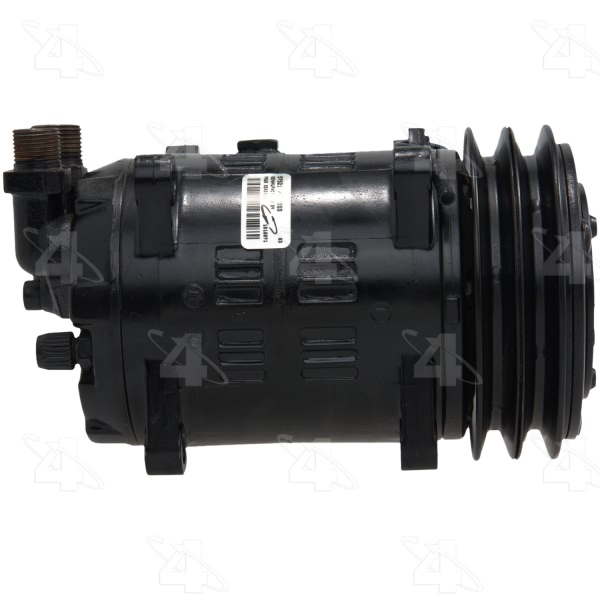

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS15BH |

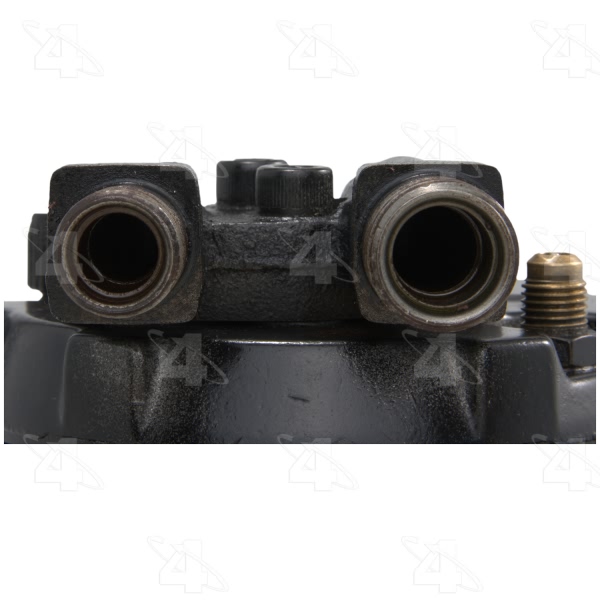

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.953125 |
Mount Distance B IN | 1.546875 |
Mount Distance B MM | 39.370 |
Mount Distance MM | 24.130 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
UPC | 096361575219 |
OE Part Number | 488-45011 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |
Terminal Type | Bullet |
w/ Diode | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1990-1992 Volvo 240 | All Trims | All Engines |
1993 Volvo 240 | All Trims | 4 Cyl 2.3L |
1985-1989 Volvo 244 | All Trims | All Engines |
1985-1989 Volvo 245 | All Trims | All Engines |
1985-1986 Volvo 740 | All Trims | 4 Cyl 2.3L |
1987-1992 Volvo 740 | All Trims | All Engines |
1985 Volvo 745 | All Trims | 4 Cyl 2.3L |
1985-1987 Volvo 760 | All Trims | 4 Cyl 2.3L |
1988-1990 Volvo 760 | All Trims | All Engines |
1988-1991 Volvo 780 | All Trims | All Engines |
