Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57300 |

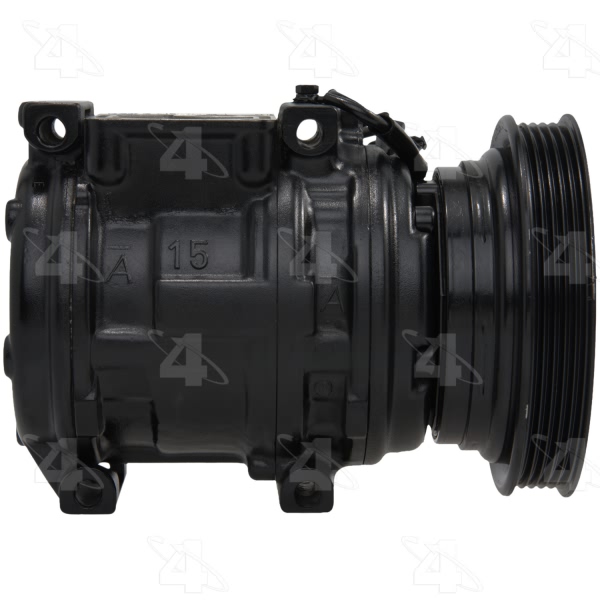

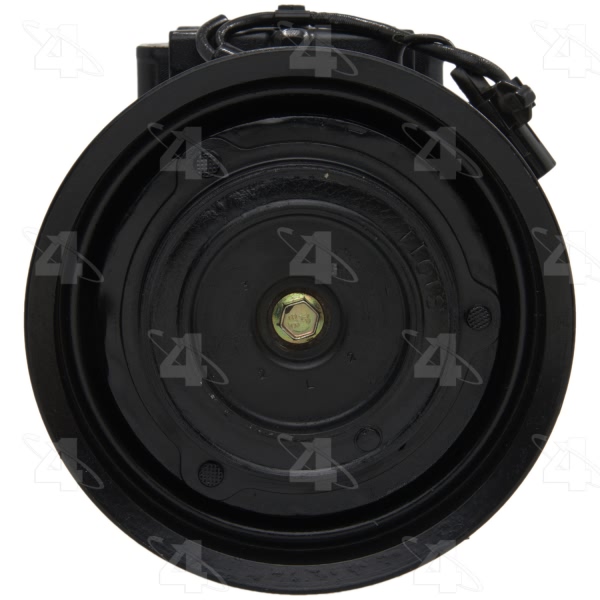

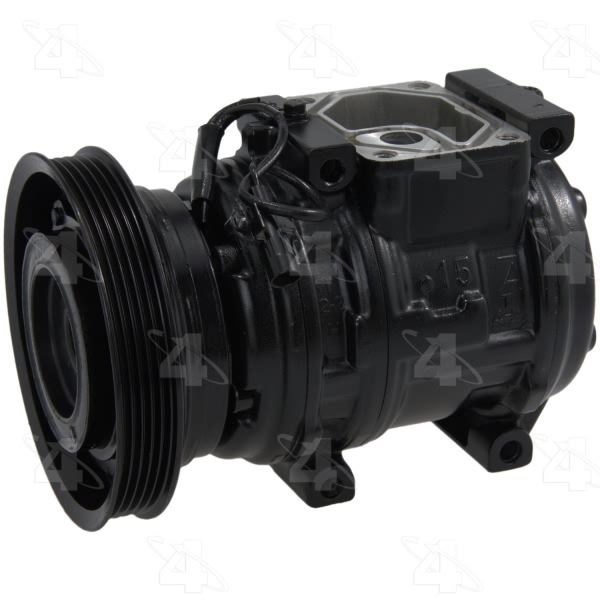

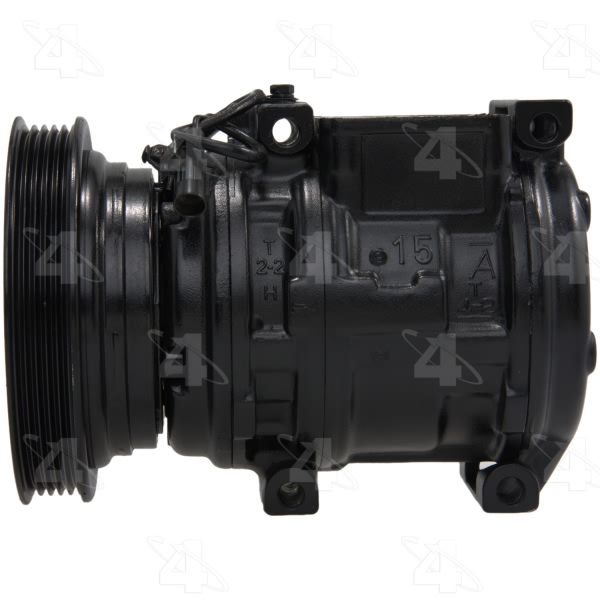

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.750 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |

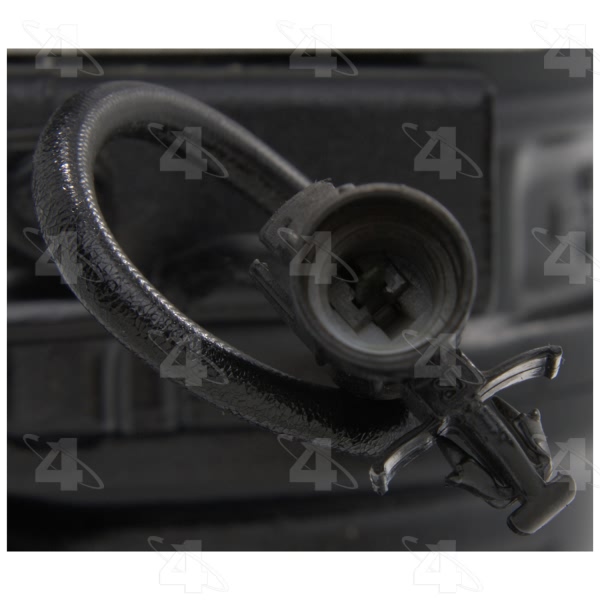

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA15C |
Distance From Clutch To Mounting Flange | 2.65625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New Compressor w/o Clutch | [58341] / Clutch Assembly |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57341] / Clutch Assembly |

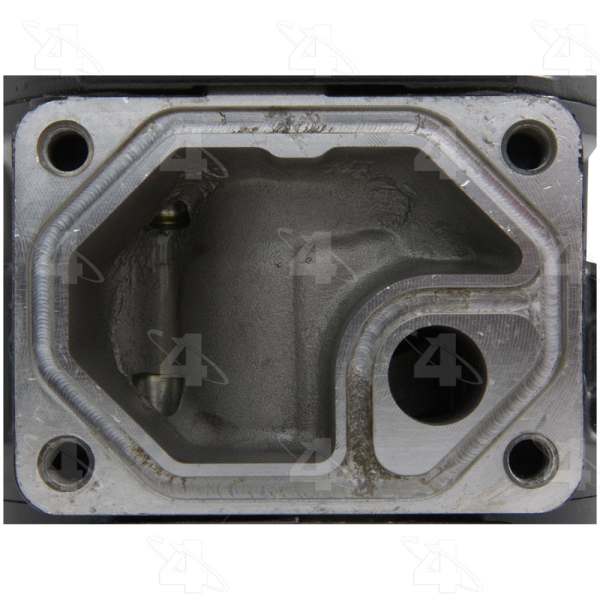

Suction Port Type | Pad Mount |
Terminal Type | Spade |
UPC | 096361573000 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1993 Toyota Celica | All Trims | 4 Cyl 2.0L |
1990-1996 Toyota Celica | All Trims | 4 Cyl 2.2L |
