Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57241 |

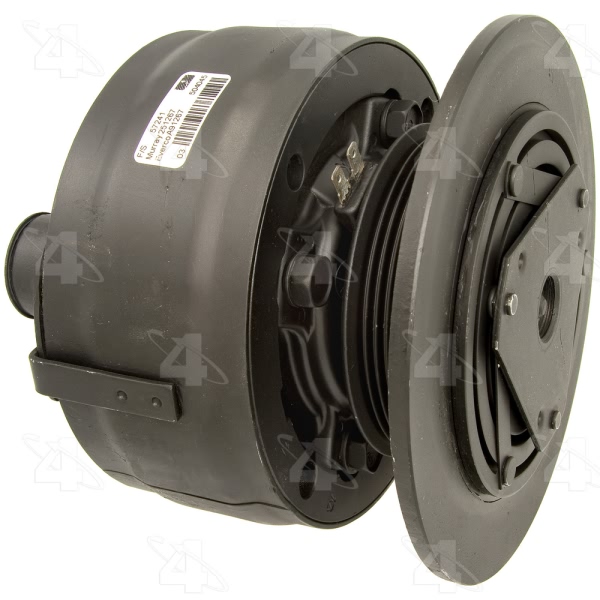

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 12 |
Coil Type | Spade |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Lightweight |
Distance From Clutch To Mounting Flange | 0.859375 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57233] / Clutch Assembly |

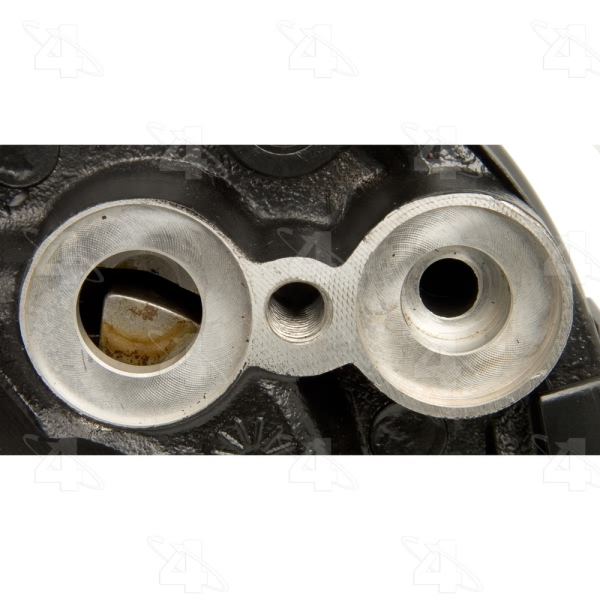

Suction Port Type | O-Ring / Sealing Washer |
Switch Included | High Pressure |

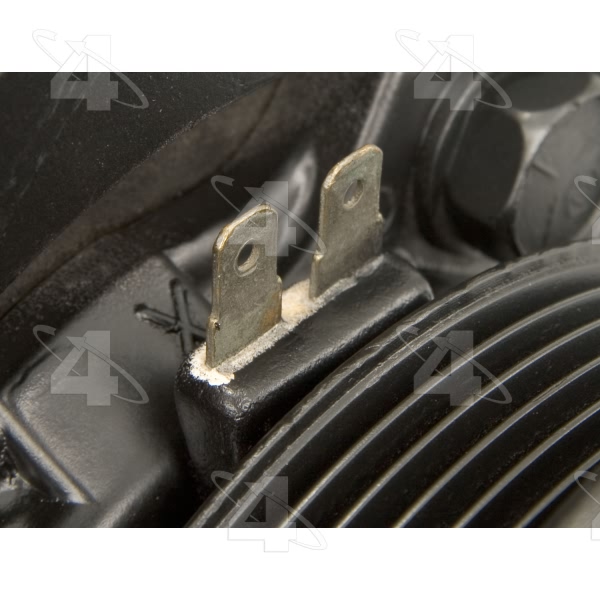

Terminal Type | Spade |
UPC | 096361572416 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1991 Chevrolet C1500 | All Trims | 8 Cyl 7.4L |
1991 Chevrolet C2500 | All Trims | 8 Cyl 7.4L |
1988-1991 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
1991 Chevrolet K2500 | All Trims | 8 Cyl 7.4L |
1988-1991 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
1991 GMC C2500 | All Trims | 8 Cyl 7.4L |
1988-1991 GMC C3500 | All Trims | 8 Cyl 7.4L |
1991 GMC K2500 | All Trims | 8 Cyl 7.4L |
1988-1991 GMC K3500 | All Trims | 8 Cyl 7.4L |
