Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57221 |

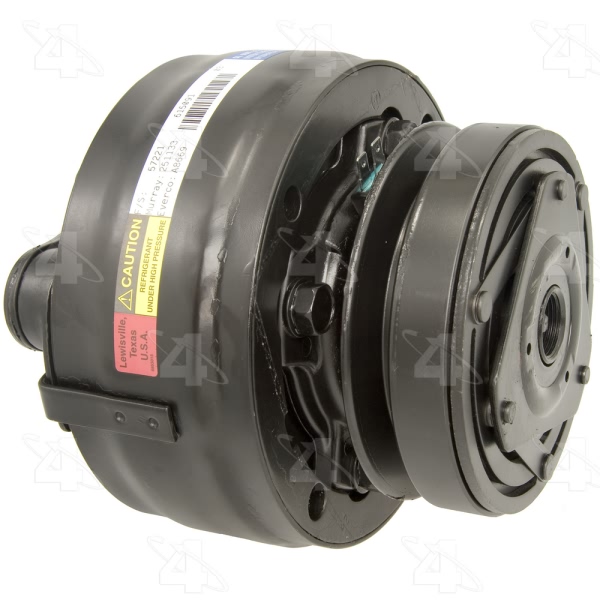

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |

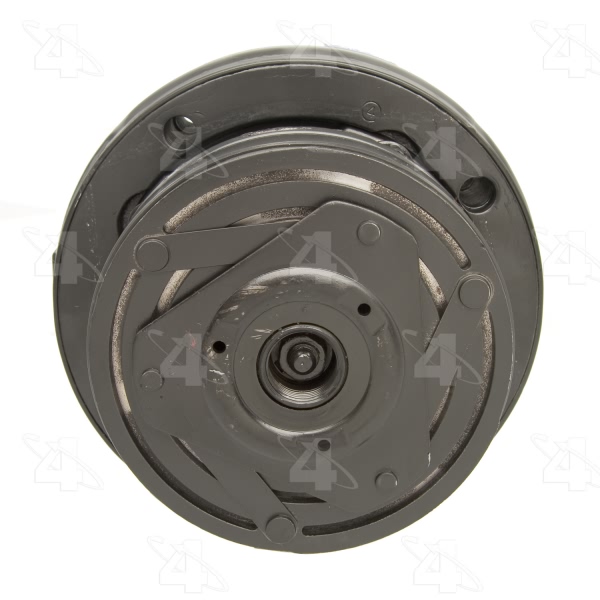

Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | R4 Heavy |

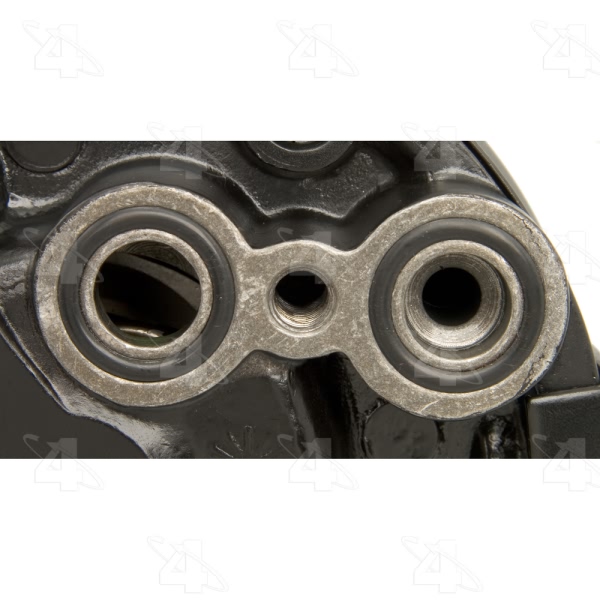

Discharge Port Type | O-Ring / Sealing Washer |
Distance From Clutch To Mounting Flange | 1.203125 |
Mounting Hardware | Not Included |
Mounting Type | Case Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57054] / Clutch Assembly |
Suc Prt Typ Note | W/ O-Rings / Sealing Washer |
Suction Port Type | O-Ring / Sealing Washer |

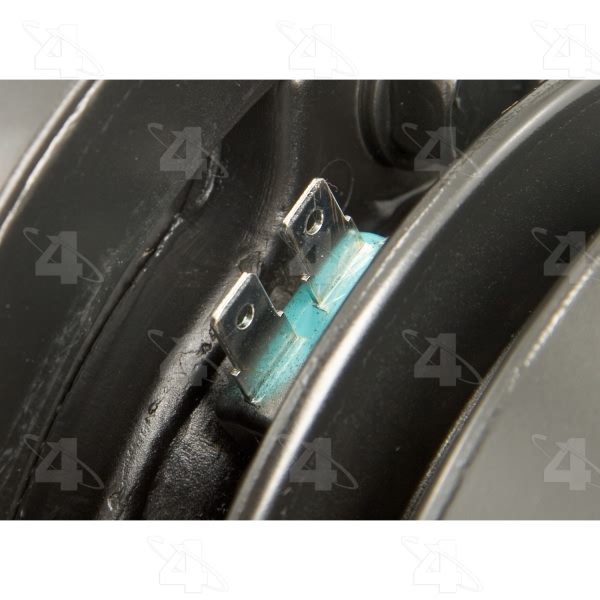

Terminal Type | Spade |
UPC | 096361572218 |
Year Make Model | Trim | Engine |
---|---|---|
1980 Buick Century | All Trims | 8 Cyl 4.9L |
1980-1981 Buick Century | All Trims | 6 Cyl 3.8L |
1980-1981 Buick Century | All Trims | 8 Cyl 4.3L |
1980-1981 Buick Century | All Trims | 8 Cyl 5.0L |
1981 Buick Century | All Trims | 8 Cyl 4.4L |
1981 Buick Century | All Trims | 8 Cyl 5.7L |
1980 Buick Electra | All Trims | 8 Cyl 4.9L |
1980-1984 Buick Electra | All Trims | 6 Cyl 4.1L |
1980-1985 Buick Electra | All Trims | 8 Cyl 5.7L |
1981-1984 Buick Electra | All Trims | 8 Cyl 5.0L |
