Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57197 |

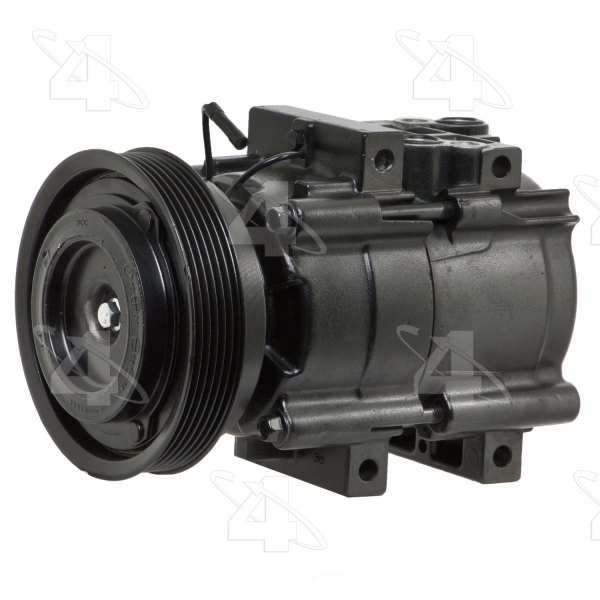

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS18 |

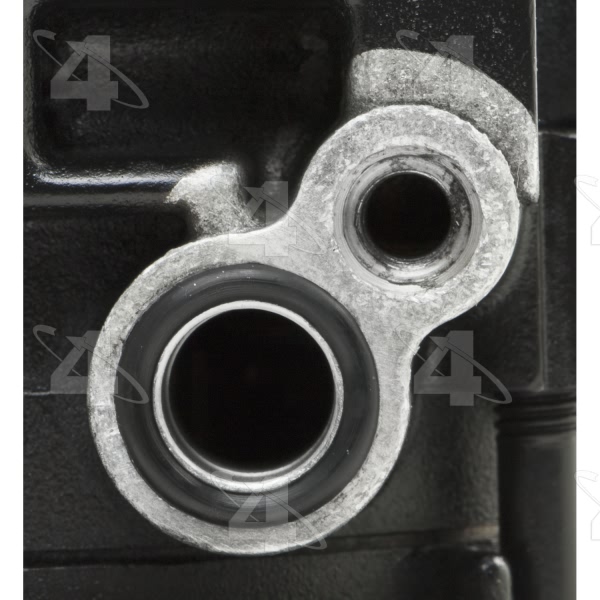

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.796875 |
Mount Distance MM | 71.120 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24628] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24641] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |

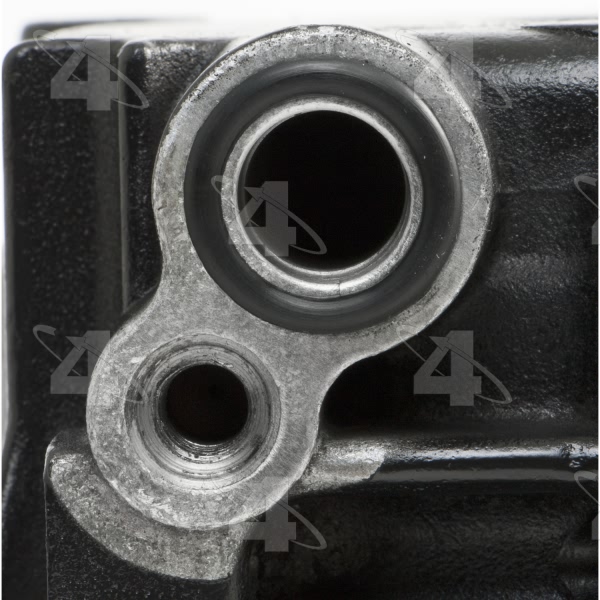

Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361571976 |
Year Make Model | Trim | Engine |
---|---|---|
2001 Hyundai XG300 | All Trims | All Engines |
2002-2005 Hyundai XG350 | All Trims | All Engines |
2004-2006 Kia Amanti | All Trims | All Engines |
