Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57161 |
Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 1.1875 |
Belt Width MM | 30.163 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS10 |

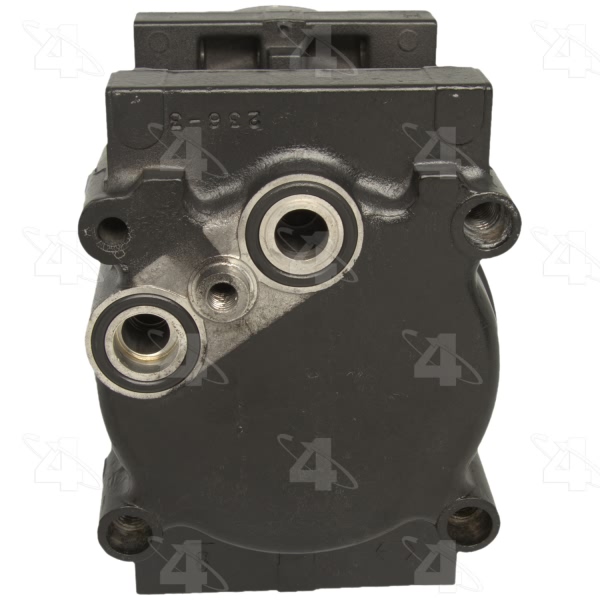

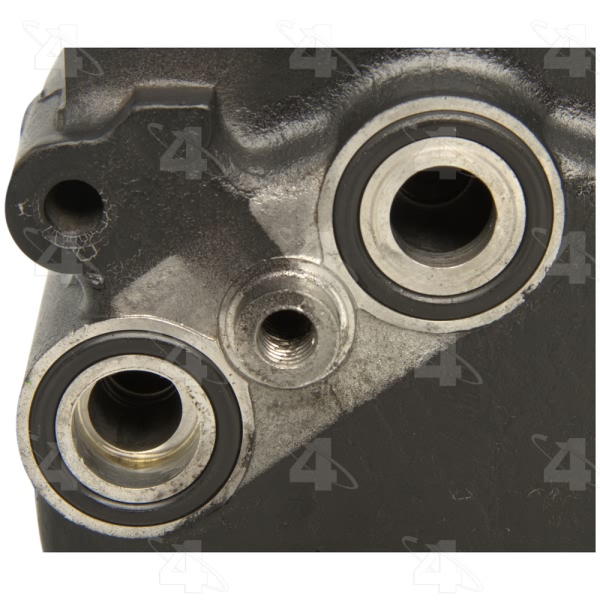

Discharge Port Type | Block Mount |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | Block Mount |

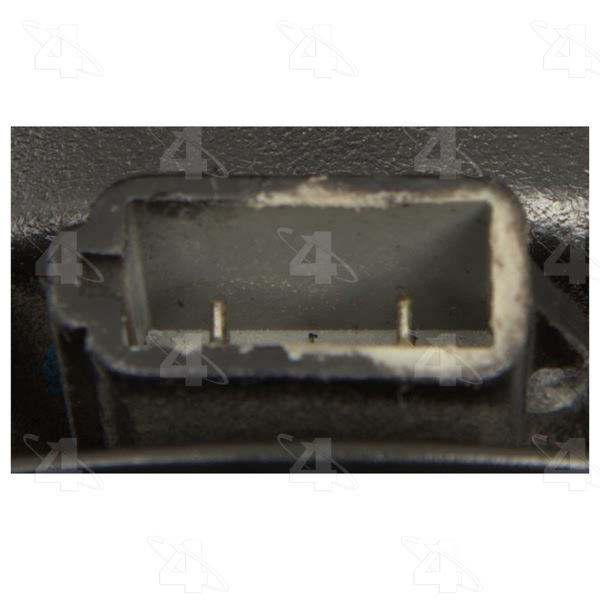

Terminal Type | Pin |
UPC | 096361571617 |
Year Make Model | Trim | Engine |
---|---|---|
1990 Ford Cougar | All Trims | 6 Cyl 3.8L |
1999-2003 Ford F-250 Super Duty | All Trims | 8 Cyl 7.3L |
1999-2003 Ford F-350 Super Duty | All Trims | 8 Cyl 7.3L |
1989-1995 Ford Thunderbird | All Trims | 6 Cyl 3.8L |
1989-1990 Mercury Cougar | All Trims | 6 Cyl 3.8L |
