Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56123 |

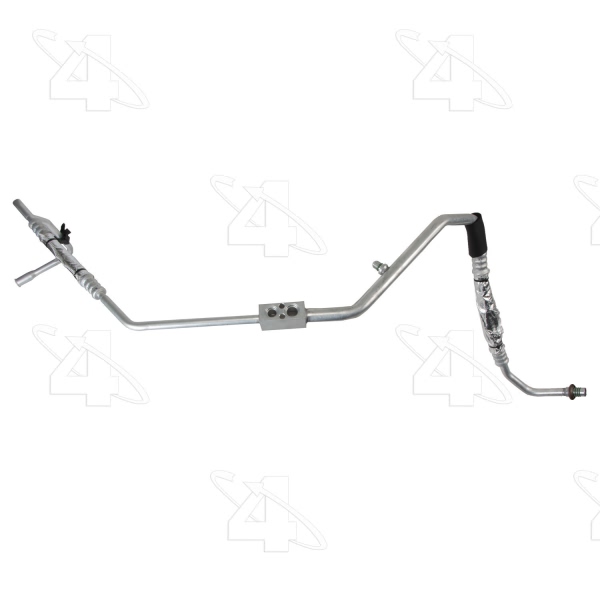

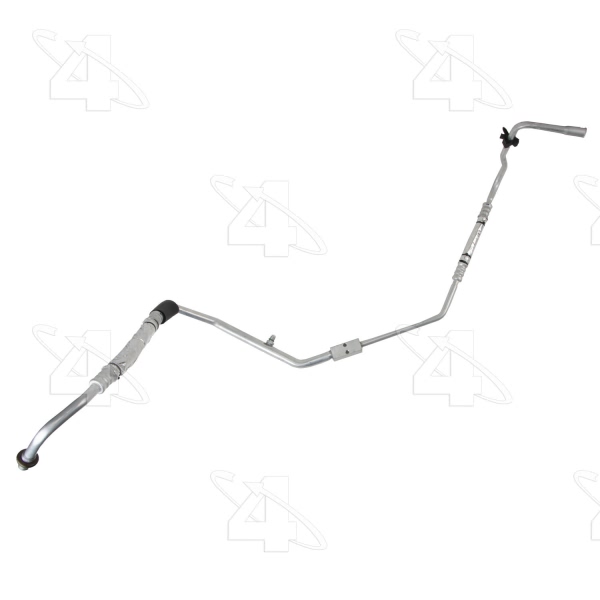

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |

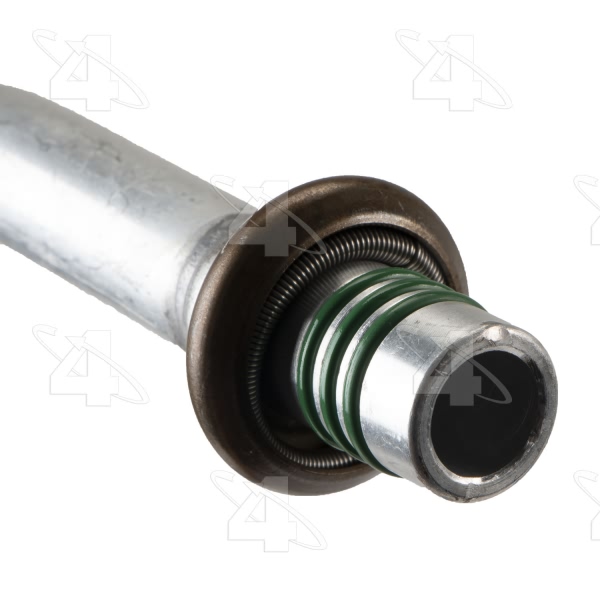

End 1 Type | Male Springlock |
End 2 Type | Female Springlock |
Fittings Included | Included |
Gasket or Seal Included | Included |

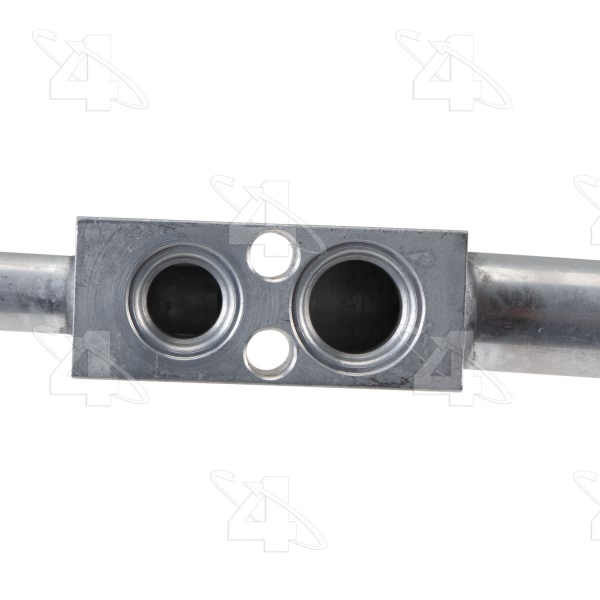

Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24650] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24608] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24610] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24668] / Green O-Ring |
O-Ring D Quantity | 3 |
O-Ring E Number/Desc | [24218] / Spring |
O-Ring E Quantity | 1 |
O-Ring F Number/Desc | [24670] / Green O-Ring |
O-Ring F Quantity | 3 |
O.E. Replacement | Yes |
Orifice Tube | w/ Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/o Service Port |
Style | Hose Assy /Suc, Liq w/ Orif |
Suction End Size | No. 10 |
Suction End Type | Female Springlock |
Switch Port Quantity | 1 |

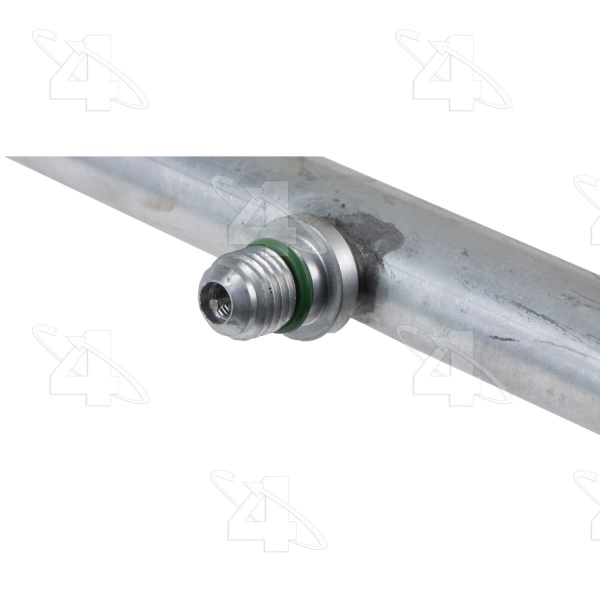

Switch Port Size | 1/4 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361561236 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Ford Mustang | All Trims | 6 Cyl 4.0L |
2005-2006 Ford Mustang | All Trims | 8 Cyl 4.6L |
2007-2009 Ford Mustang | All Trims | All Engines |
