Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78356 |

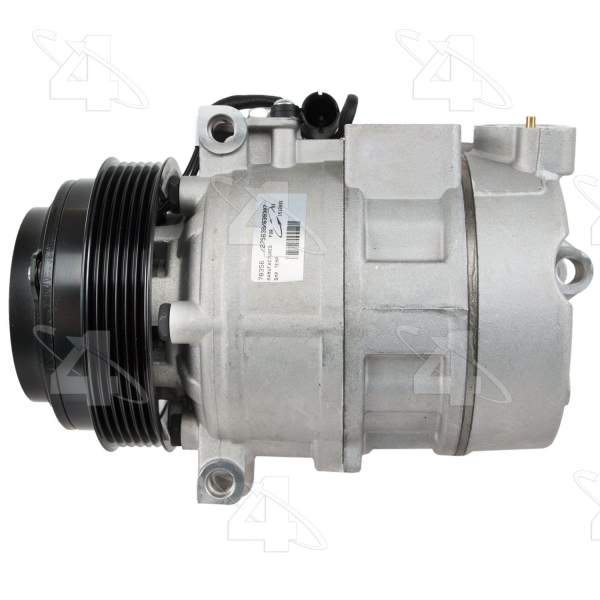

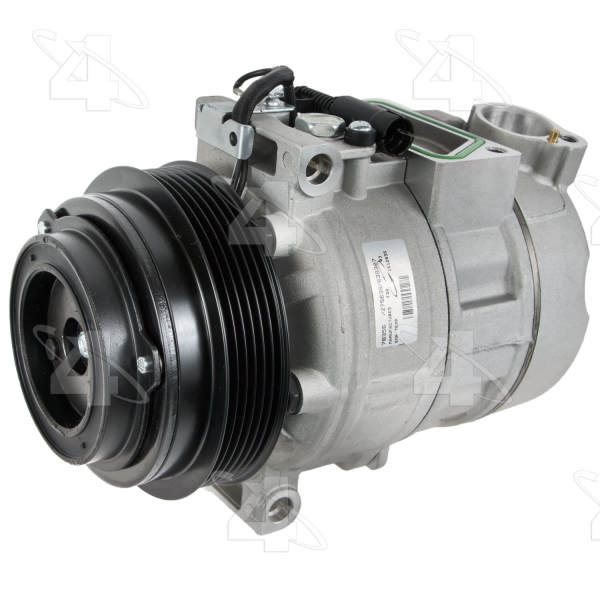

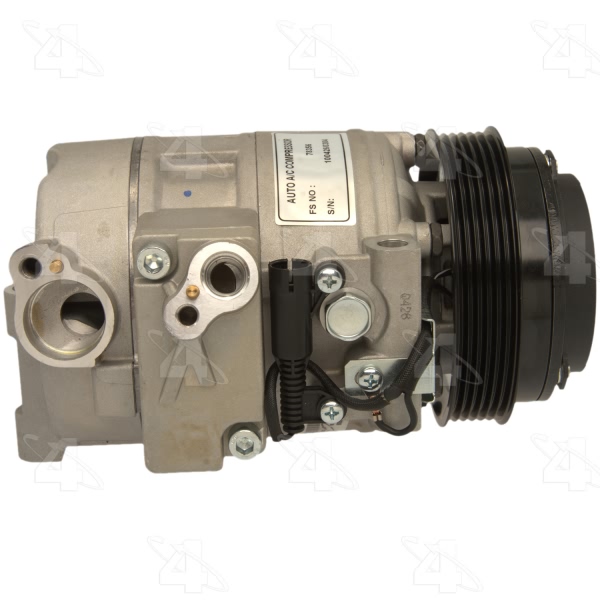

Part Description | Front A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SB16C |

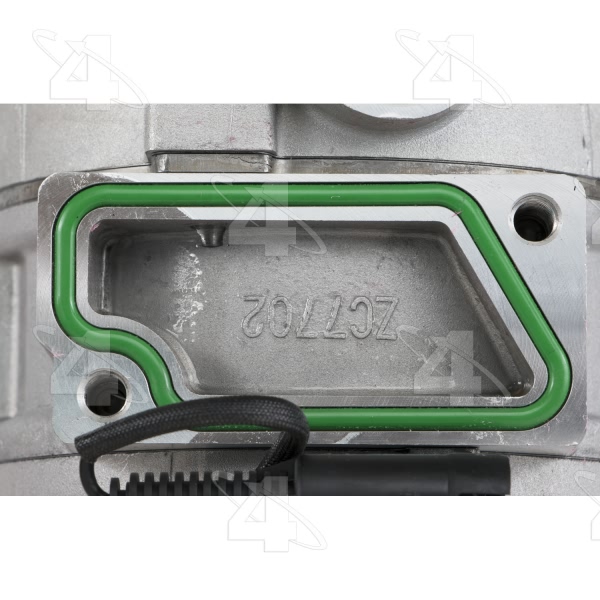

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.703125 |
Mount Distance MM | 17.780 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |

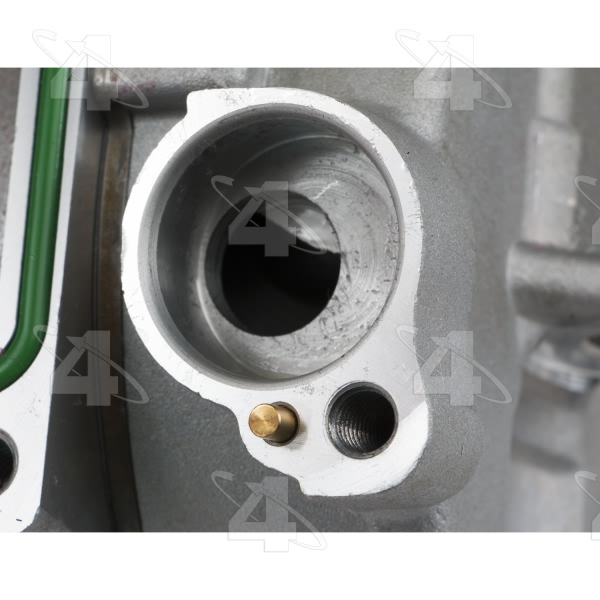

Suction Port Type | O-Ring |

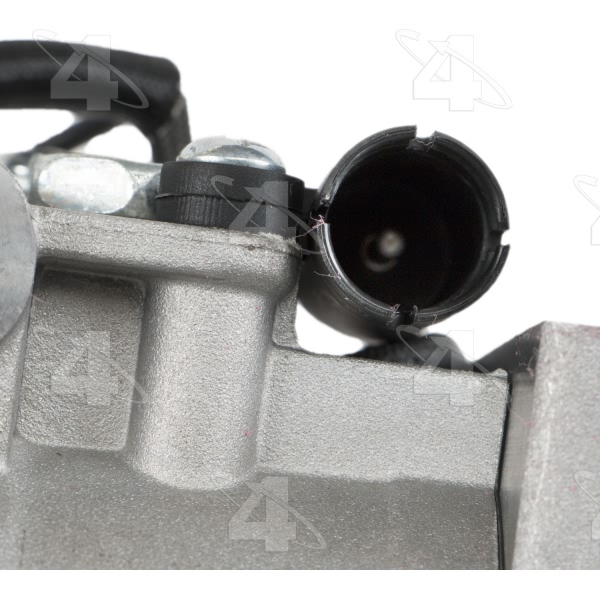

Terminal Type | Pin |
UPC | 096361783560 |
Year Make Model | Trim | Engine |
---|---|---|
2004 Chrysler Crossfire | All Trims | All Engines |
2005-2006 Chrysler Crossfire | All Trims | 6 Cyl 3.2L |
2007-2008 Chrysler Crossfire | All Trims | All Engines |
2003-2006 Dodge Sprinter 2500 | All Trims | All Engines |
2003-2006 Dodge Sprinter 3500 | All Trims | All Engines |
1996-1997 Mercedes-Benz C220 | All Trims | All Engines |
1996-2000 Mercedes-Benz C230 | All Trims | All Engines |
1996-2000 Mercedes-Benz C280 | All Trims | All Engines |
1996-1997 Mercedes-Benz C36 AMG | All Trims | All Engines |
1998-2000 Mercedes-Benz C43 AMG | All Trims | All Engines |
