Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76243 |

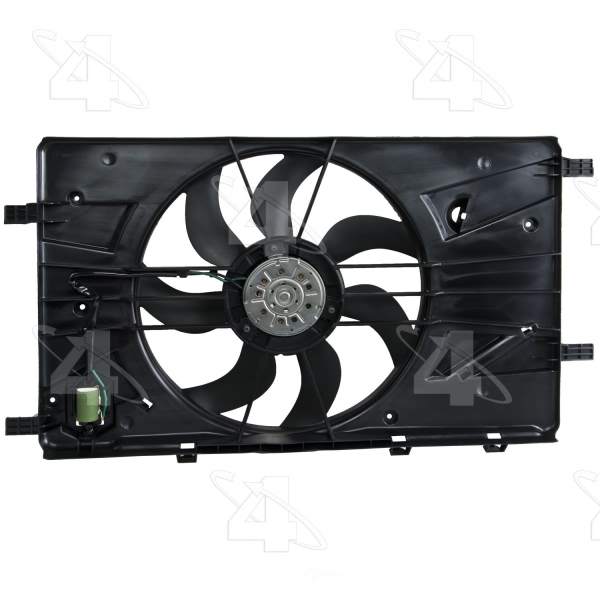

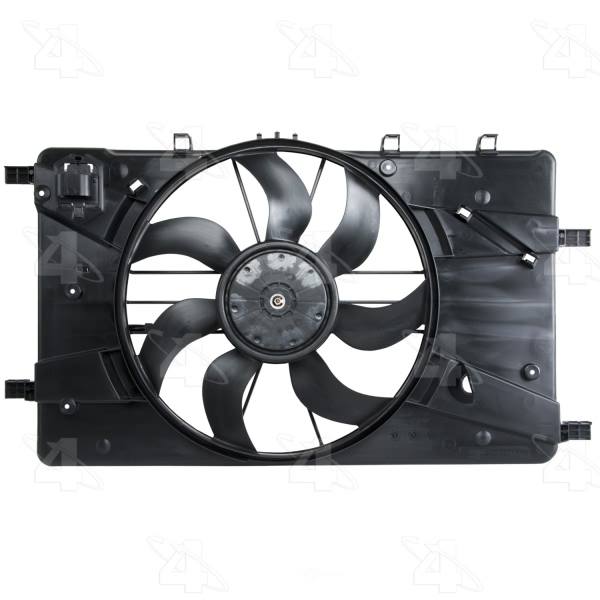

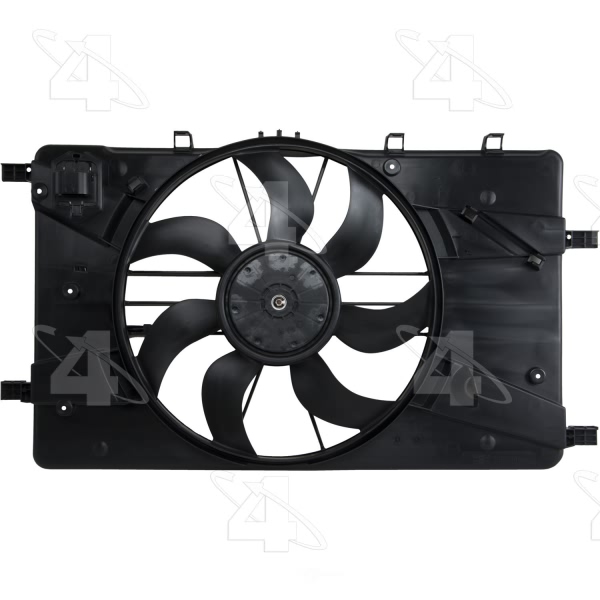

Part Description | Engine Cooling Fan |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |

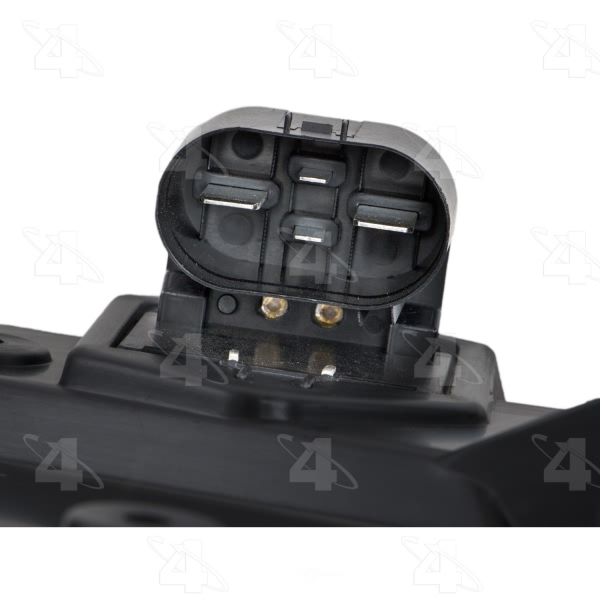

Connector Shape | Oval |
Connector Type | 4 Terminal Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 10.250 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Radiator Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
UPC | 096361762435 |
OE Part Number | 2811688, 620658, 622890 |
Package Depth IN | 5.500 |
Package Depth MM | 140.000 |
Package Height IN | 20.500 |
Package Height MM | 521.000 |
Package Length IN | 33.500 |
Package Length MM | 851.000 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan |
Terminal Gender | Male |
Terminal Quantity | 4 |
Voltage | 12 |
Width IN | 30.000 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2014 Buick Verano | All Trims | All Engines |
2011-2014 Chevrolet Cruze | All Trims | All Engines |
