Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76236 |

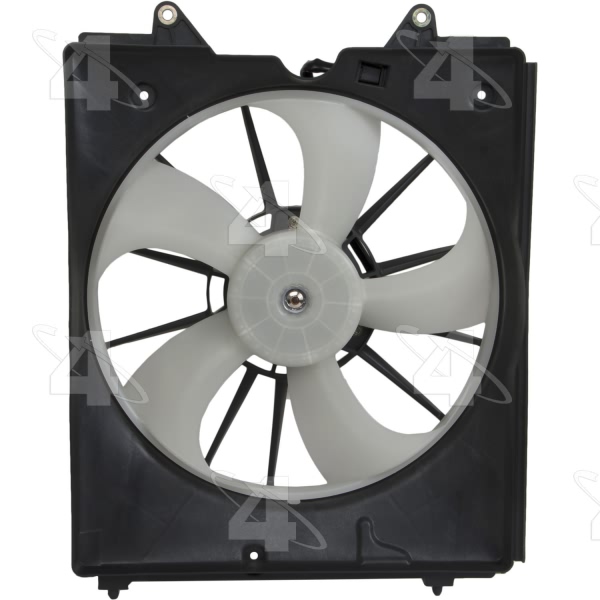

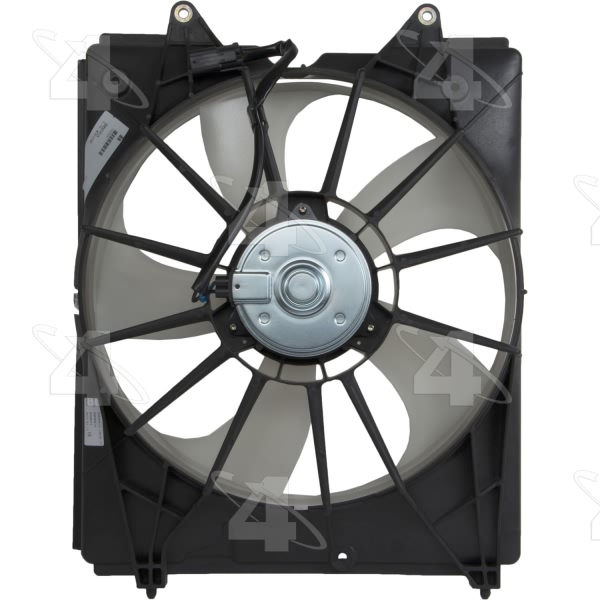

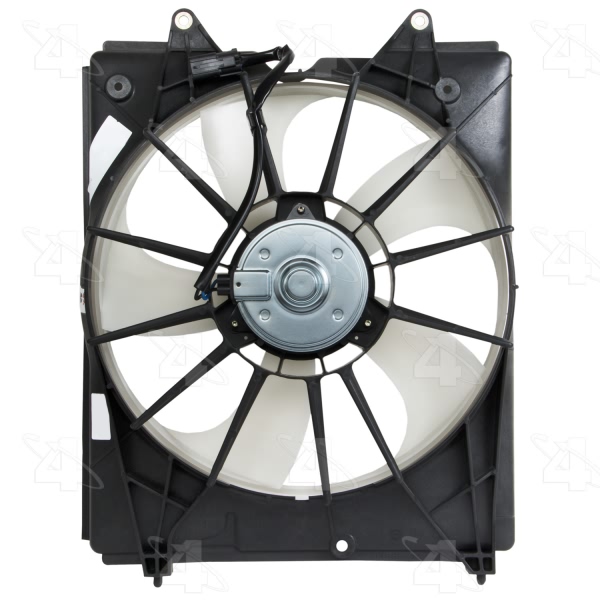

Part Description | Engine Cooling Fan |
Blade Material | Plastic |
Blade Type | Rigid |

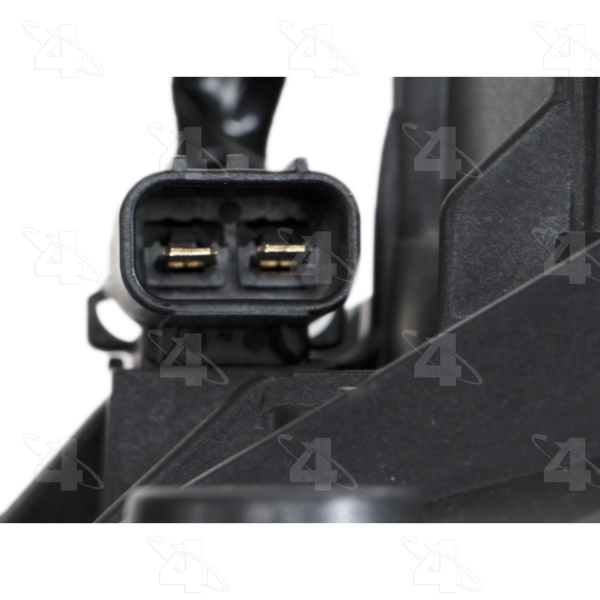

Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Rectangle |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 15.000 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Radiator Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
UPC | 096361762367 |
OE Part Number | 2811695, 601360, FA70887 |
Package Depth IN | 6.000 |
Package Depth MM | 152.000 |
Package Height IN | 22.000 |
Package Height MM | 559.000 |
Package Length IN | 18.000 |
Package Length MM | 457.000 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 12 |
Width IN | 19.750 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Acura MDX | All Trims | All Engines |
2011-2017 Honda Odyssey | All Trims | All Engines |
