Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76126 |

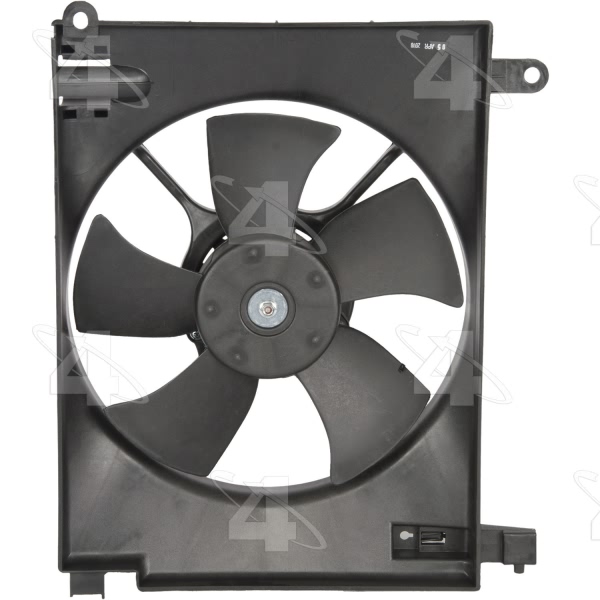

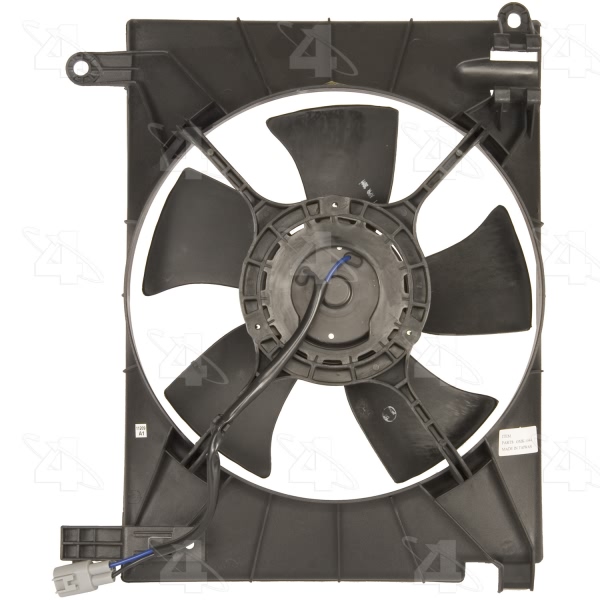

Part Description | Engine Cooling Fan |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 18.000 |
Height MM | 317.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Radiator Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 20.875 |
Package Depth MM | 530.225 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 17.750 |
Package Length MM | 450.850 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361761261 |
Voltage | 12 |
Width IN | 14.500 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Chevrolet Aveo | All Trims | All Engines |
2006-2008 Chevrolet Aveo5 | All Trims | All Engines |
2005-2008 Pontiac Wave | All Trims | All Engines |
2005-2007 Pontiac Wave5 | All Trims | All Engines |
