Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76093 |

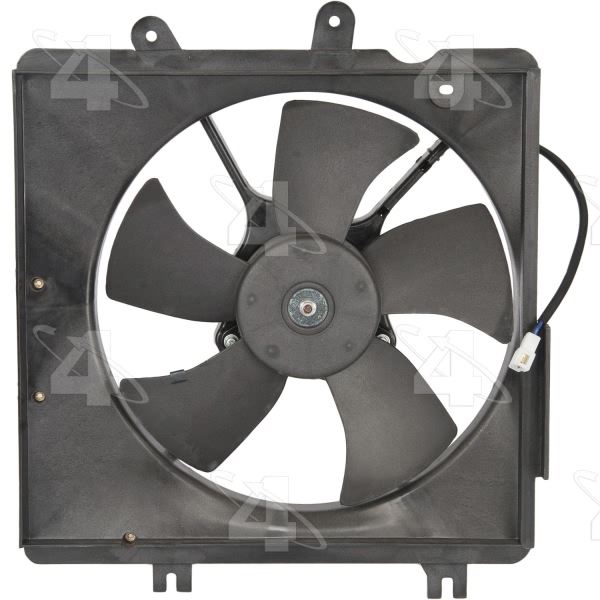

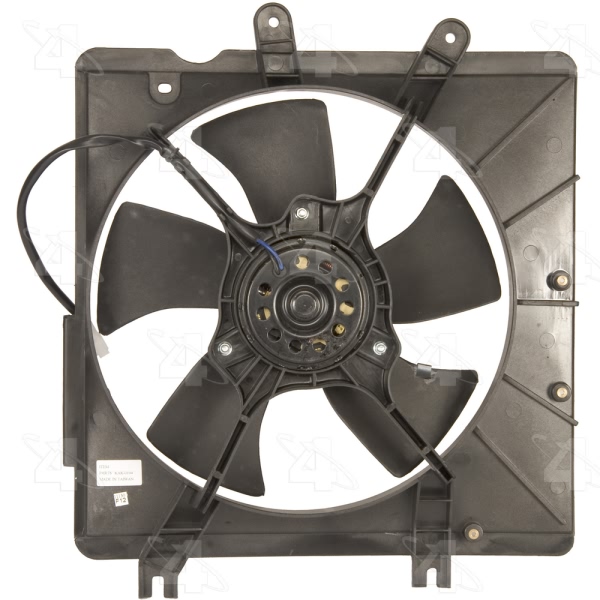

Part Description | Engine Cooling Fan |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | T-Shape |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 17.250 |
Height MM | 400.050 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Radiator Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
UPC | 096361760936 |
OE Part Number | 621133, CF16046, FA70651 |
Package Depth IN | 21.750 |
Package Depth MM | 552.450 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 19.750 |
Package Length MM | 501.650 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 12 |
Width IN | 15.500 |
Year Make Model | Trim | Engine |
---|---|---|
1994 Kia Sephia | All Trims | All Engines |
